Nuasol Roof hooks

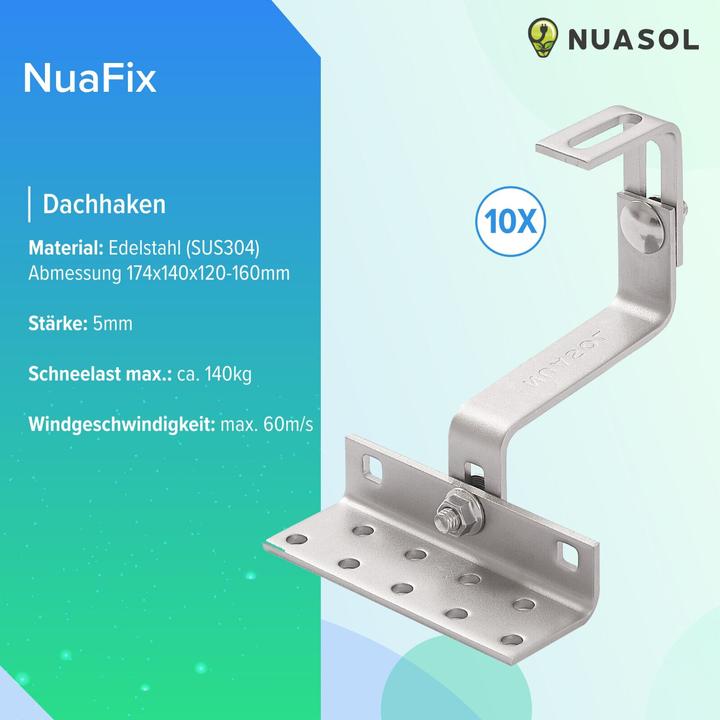

NuaFix - 10x roof hooks for PV systems aluminium profiles

NuaFix offers various mounting materials for attaching your mini PV system or balcony power plant. From hanger bolts to roof hooks and Z-brackets, you will find the right mounting material for every type of installation.

Roof hooks

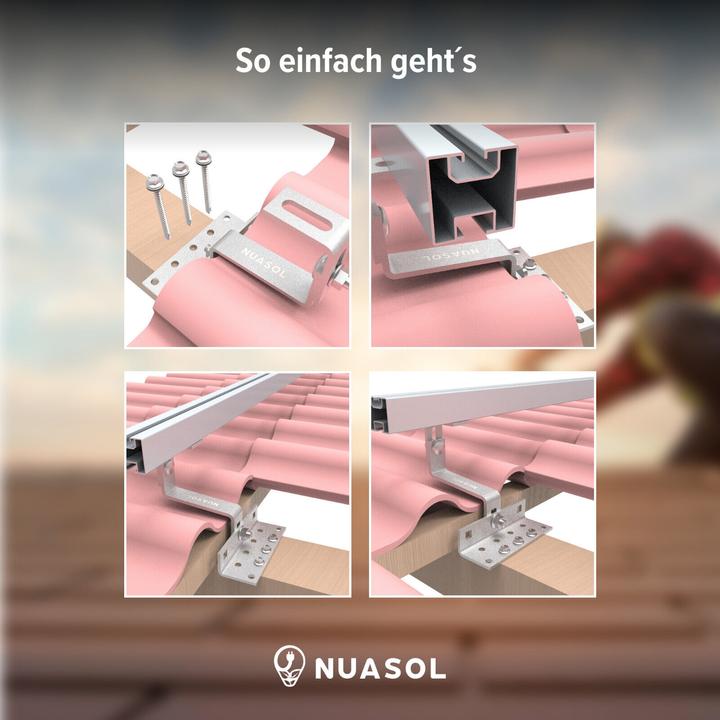

Our weatherproof, stainless steel Z-brackets are completely pre-assembled. Our special roof hooks are suitable for the removal of aluminium rails, profile rails, fastening rails, and for holding photovoltaic modules or solar systems.

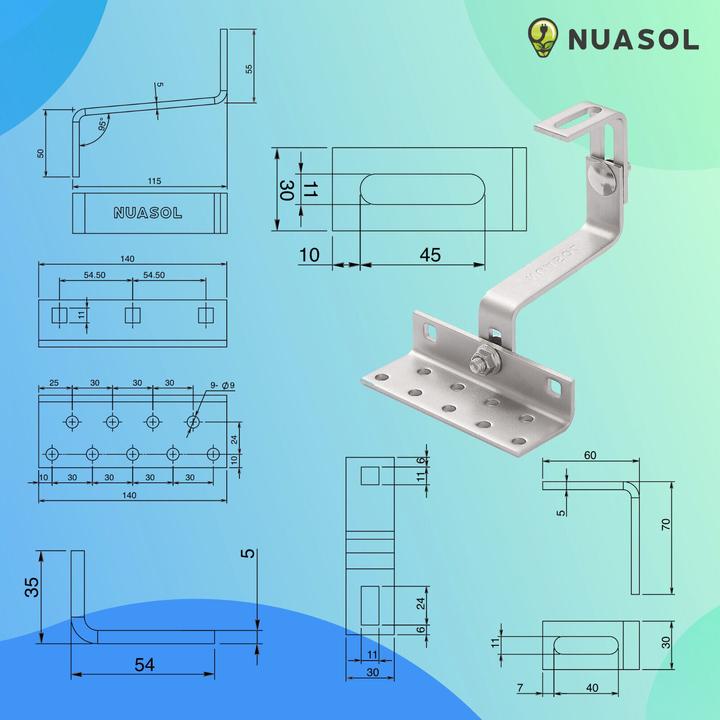

NuaFix roof hooks in detail:

• Material: Stainless steel (SUS 304)
• Flat steel hook: 60 x 30 x 5 mm
• Length of hook inside: 115 mm
• Dimensions base plate: 140 x 54 x 5 mm
• Mounting holes: 9 x 9 mm offset
• Height adjustment of base plate: 44-47 mm
• Height adjustability flat steel hook: 60-92 mm
• Slotted hole measurement: 45 x 11 mm
• Height adjustable total: 120-160 mm
• Overall dimensions: 174 x 140 x 120-160 mm
• Suitable screw: M10x25 A2 stainless steel
• Matching nut: M10 stainless steel A2
• Max. snow load: approx. 140 kg
• Wind speed: max. 60 m/s
• Weight per piece: 0.76 kg

Technical data:
NuaFix

• Material: Stainless steel (SUS 304)
• Flat steel hook: 60 x 30 x 5 mm
• Length hook inside: 115 mm
• Dimensions base plate: 140 x 54 x 5 mm
• Mounting holes: 9 x 9 mm offset
• Height adjustment of flat steel hooks: 60-92 mm
• Height adjustability base plate: 44-47 mm
• Slotted hole measurement: 45 x 11 mm
• 10x roof hooks
• Height adjustable total: 120-160 mm
• Overall dimensions: 174 x 140 x 120-160 mm
• Matching screw: M10x25 A2 stainless steel
• Matching nut: M10 stainless steel A2
• Max. snow load: approx. 140 kg
• Wind speed: max. 60 m/s
• Weight per piece: 0.76 kg.
