Nuasol Adjustable bracket

NuaFix - Triangular solar panel mounts with a 1180mm inclination angle of 0-90°

NuaFix offers various mounting materials for attaching your mini PV system or balcony power plant. From hanger bolts to roof hooks, adjustable brackets to Z-brackets, you will find the right mounting material for every type of installation.

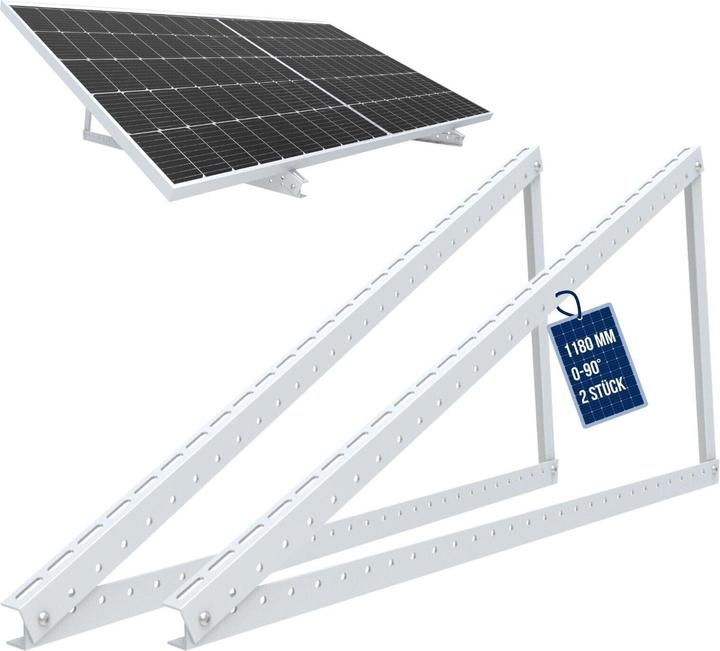

Triangular solar panel brackets (0-90°)

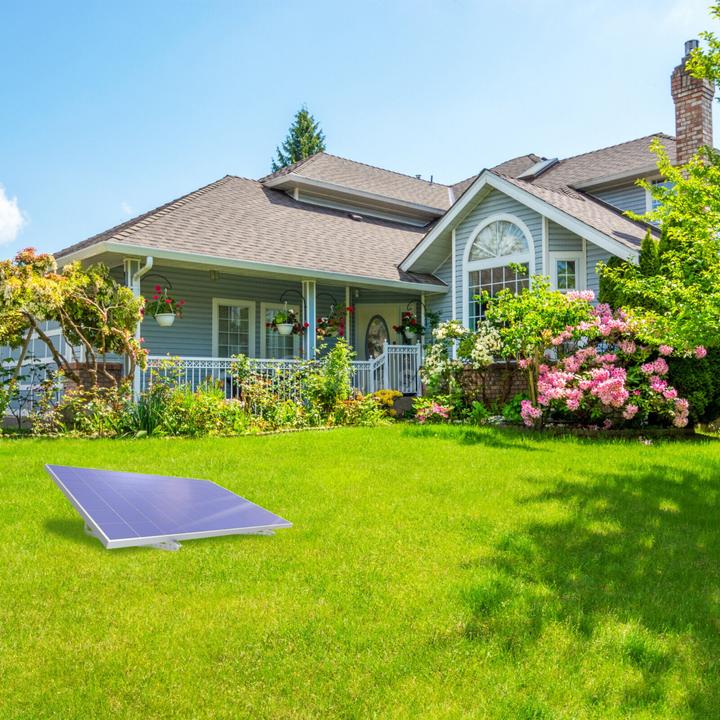

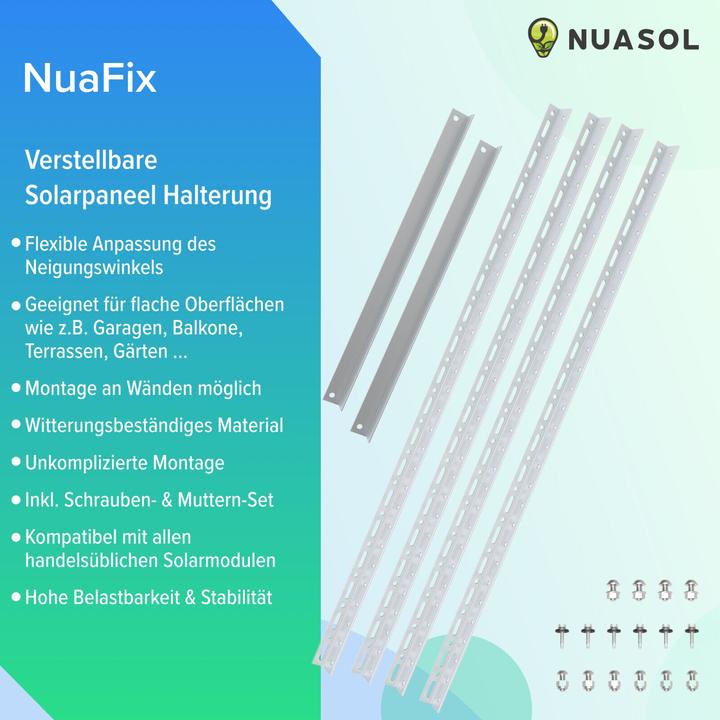

Made from AL6005-T5 aluminum, our weather-resistant adjustable PV system brackets are easy to attach to the solar panel, ensuring your solar system is ready to go in no time. SUS304 stainless steel bolts and nuts are included. Our adjustable brackets are suitable for installations on flat surfaces such as garages, gardens, and balconies, allowing convenient adjustment of the tilt angle to maximize energy yield.

NuaFix - Flexible brackets (0-90°):

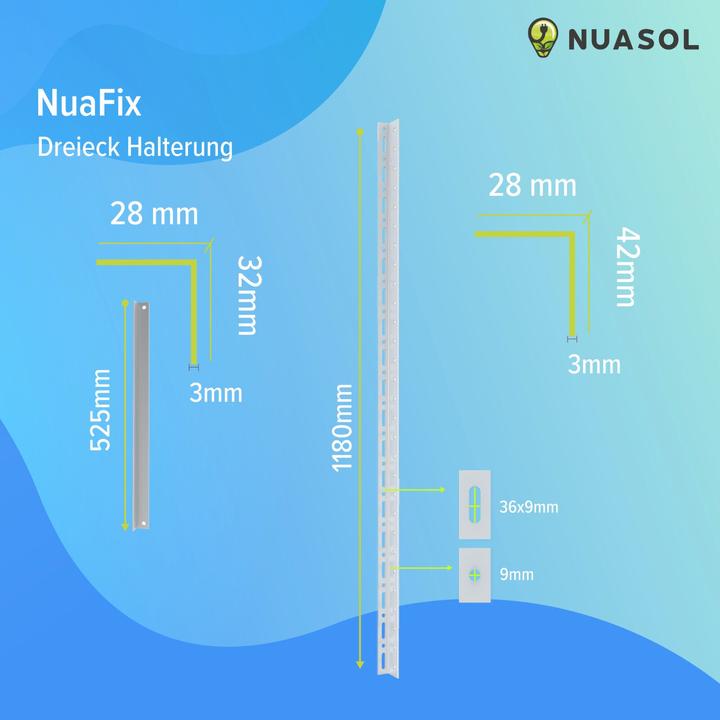

• Dimensions long strut (WxDxH): 28 x 42 x 3 mm
• Length long strut: 1180 mm
• Length cross brace: 525 mm
• Dimensions cross strut (WxDxH): 28 x 32 x 3 mm
• Max. solar module width: 1180 mm
• Material thickness: 3 mm
• Dimensions of fixing holes for long strut: 9 mm / 36 x 9 mm
• Material of bracket: Aluminum AL6005-T5
• Material of bolts & nuts: Stainless steel SUS304
• Angle: 0-90°
• Weight: 2.89 kg

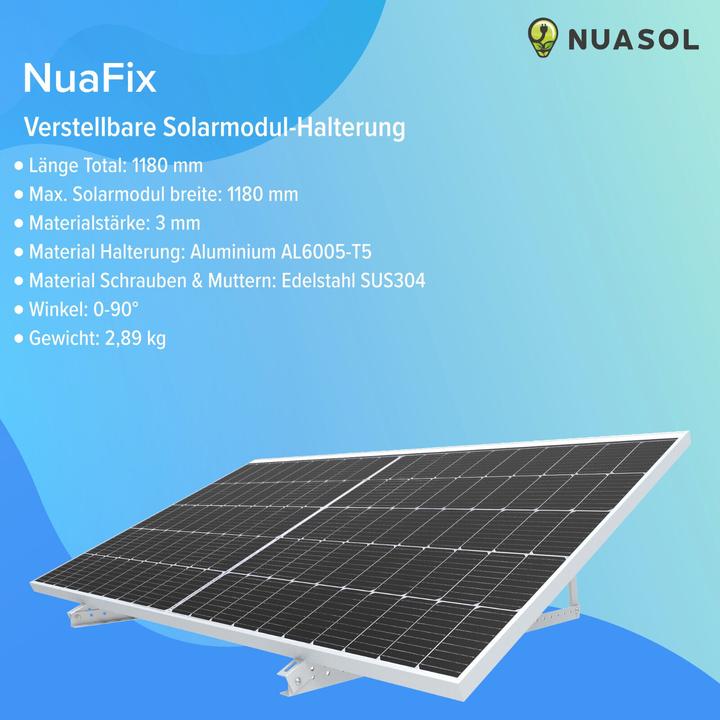

Technical data:
NuaFix
• Dimensions long strut (WxDxH): 28 x 42 x 3 mm
• Length long strut: 1180 mm
• Length cross brace: 525 mm
• Dimensions cross strut (WxDxH): 28 x 32 x 3 mm
• Max. solar module width: 1180 mm
• Material thickness: 3 mm
• Dimensions of mounting holes long strut: 9 mm / 36 x 9 mm
• Solar panel brackets (0-90°)
• Material of bracket: Aluminum AL6005-T5
• Material of screws & nuts: Stainless steel SUS304
• Angle: 0-90°
• Suitable for: Flat surfaces
• Colour: Silver.
