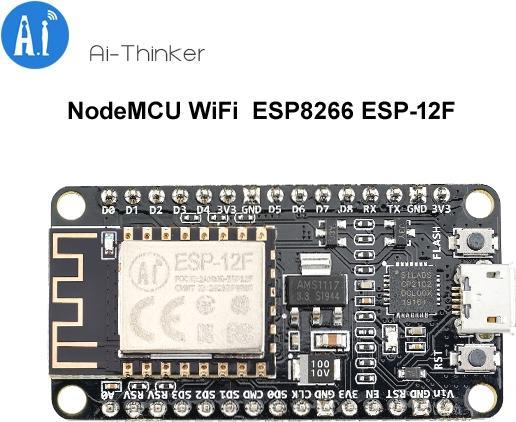

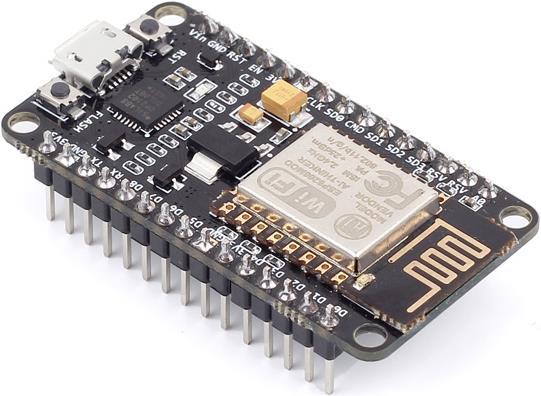

NodeMCU ESP8266 V2 Dev Board with Lua firmware

Various
12Ratings
Currently out of stock

Product details

The NodeMCU board is equipped with an ESP8266, a small SoC (System-on-Chip) with integrated WiFi and a clock frequency of 80 MHz. The SoC is very versatile. It comes with firmware that can be programmed using Lua. For those who prefer to work with Arduino firmware, the board can also be programmed directly from the Arduino IDE using the same commands.

The NodeMCU is supplied with a Micro-USB port for programming and power supply. Additionally, pin headers are already soldered to allow the board to be used without soldering on a breadboard.

The ESP8266 is a pure 3.3V IC - all GPIOs should only be addressed with 3.3V. However, due to an integrated voltage converter on the board, the board can be powered via VIN with 5V to 10V, but only for power supply purposes.

Due to the open design of the board, there are various clones available. We source the boards directly from NodeMCU, ensuring 100% original products.

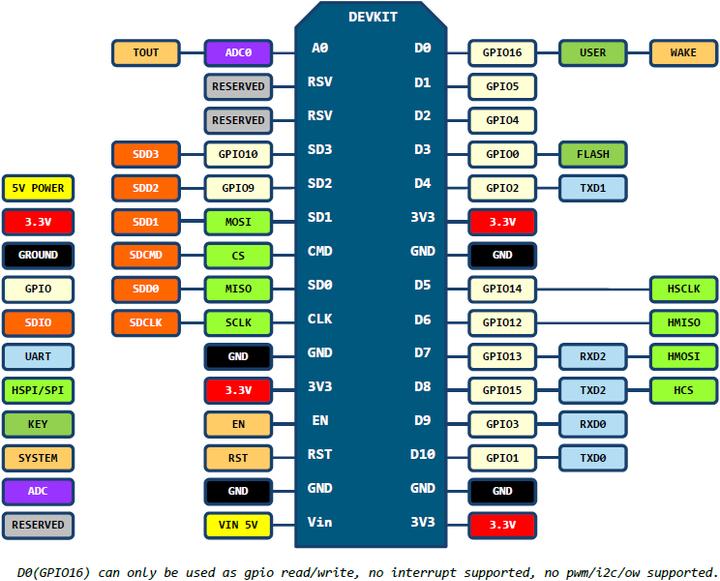

A small note for programming with the Arduino IDE: The pins are labeled with Dx, where x represents the pin number. When programming the board with the Arduino IDE, you must also specify the pin with Dx, not just the number.

Key specifications

Scope of delivery
1-Ware and one ADC - USB connection - 10 GPIO (usable as PWM I2C 1-Wire) - integrated WiFi incl. antenna, ESP8266-based development board, IIC, PWM, with GPIO
Compatible hardware
Arduino
Item number
5999057

General information

Manufacturer
NodeMCU
Category
Electronics modules
Manufacturer no.
P00001423
Release date
7.6.2016

Compatibility

Compatible hardware
Arduino

Electronic module properties

Module type
Various

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1-Ware and one ADC - USB connection - 10 GPIO (usable as PWM I2C 1-Wire) - integrated WiFi incl. antenna, ESP8266-based development board, IIC, PWM, with GPIO

Package dimensions

Length
11.80 cm
Width
7.80 cm
Height
1.50 cm
Weight
4 g
