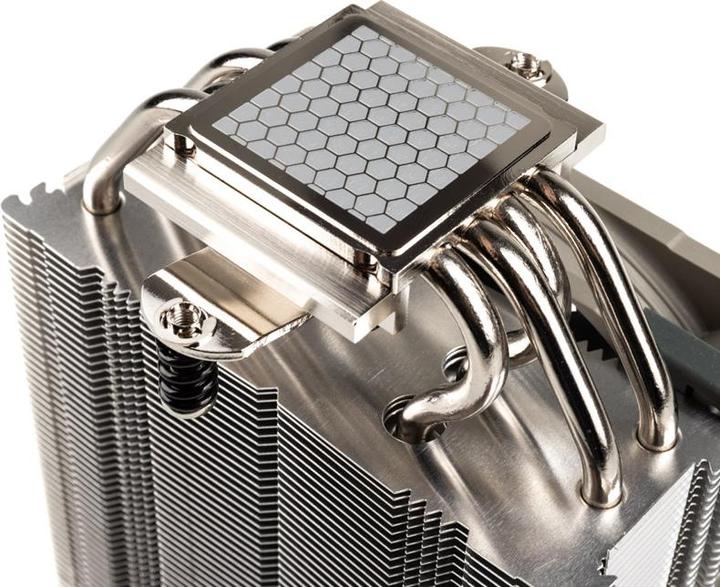

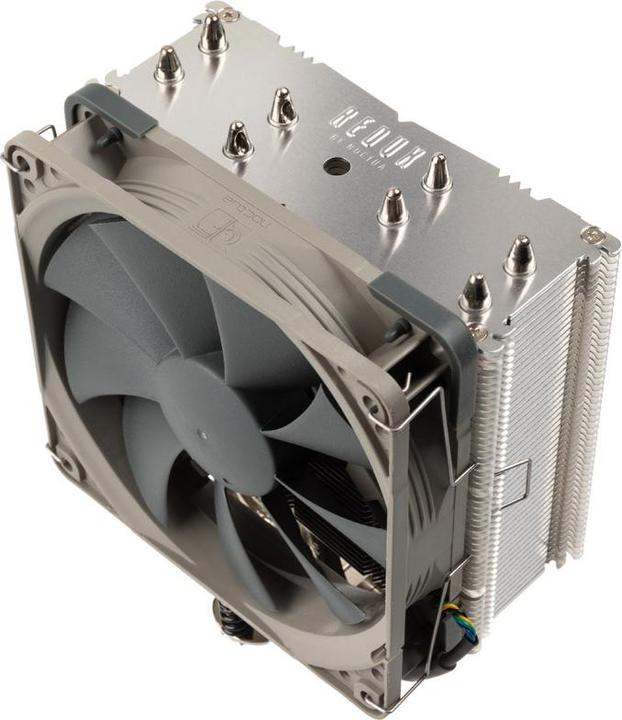

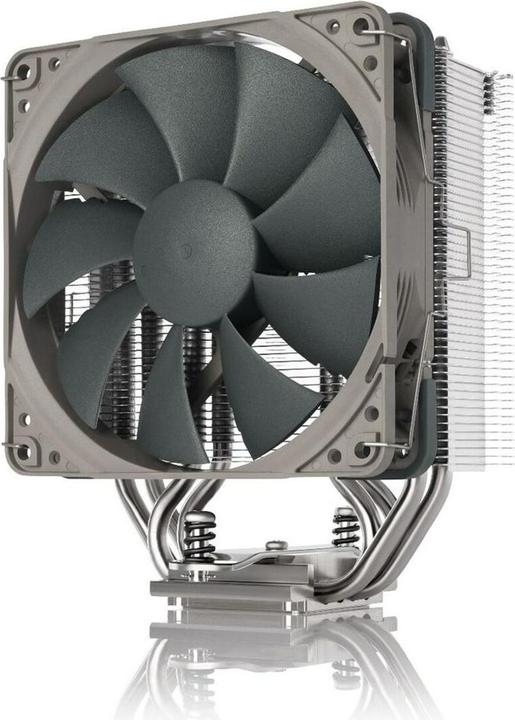

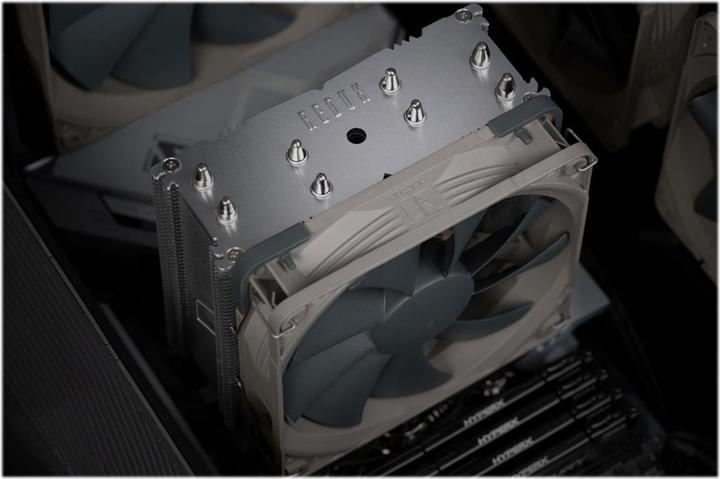

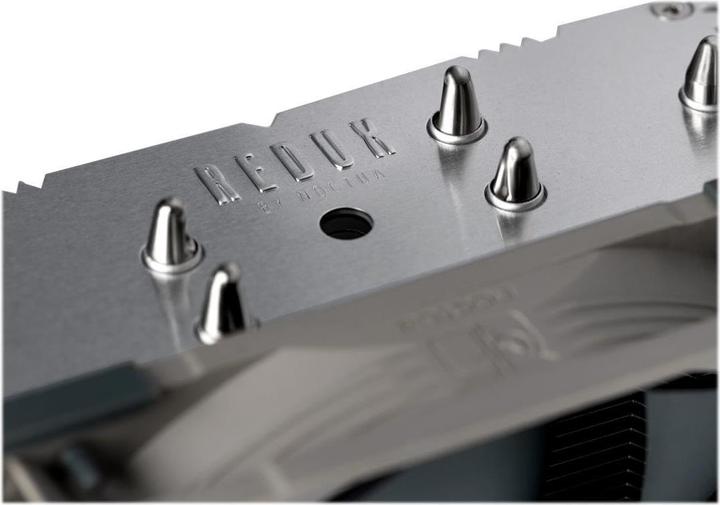

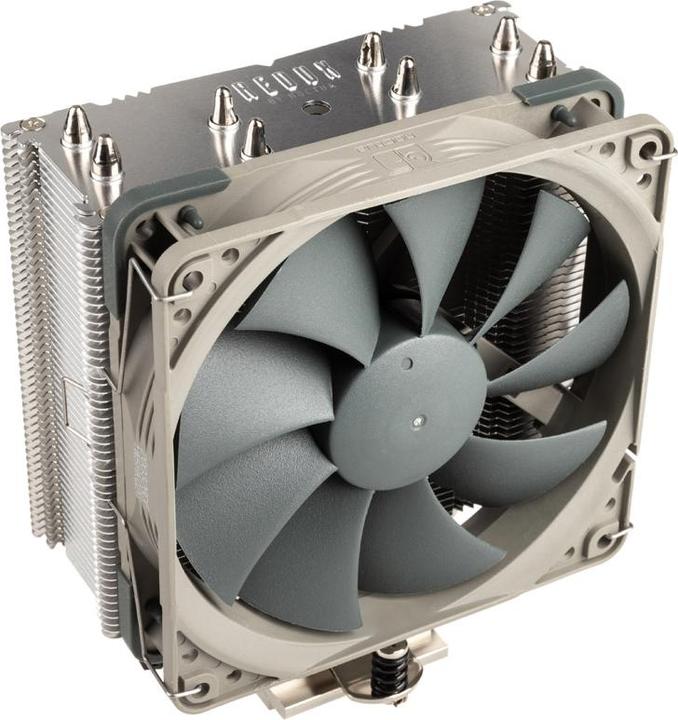

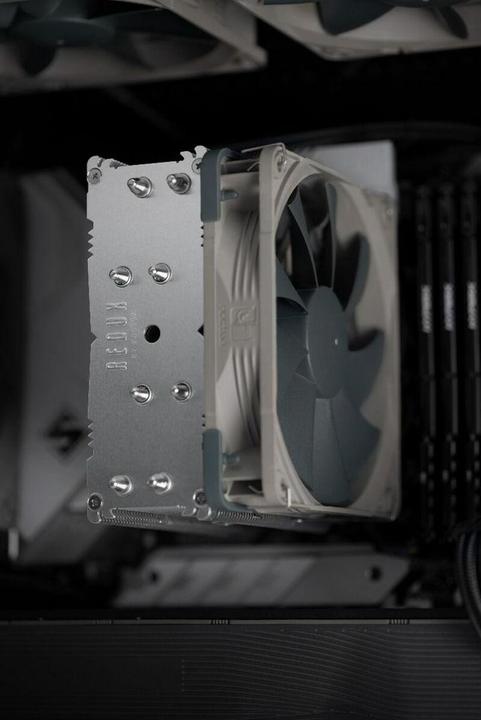

The Noctua NH-U12S redux CPU cooler offers excellent cooling performance with its 120 mm fan and four copper heat pipes. Thanks to PWM control, the fan speed is dynamically adjusted according to the required performance, creating a balanced mix of cooling efficiency and noise level. The CPU cooler is compatible with nearly all common processors from Intel and AMD. Installation is easy and quick.
Socket | AM2, AM2+, AM3, AM3+, AM4, FM1, FM2, FM2+, LGA 1150, LGA 1151, LGA 1155, LGA 1156, LGA 1200, LGA 2011, LGA 2011-v3, LGA 2066 |
Height (with fan) | 158 mm |
Diameter | 120 mm |
power connector | 4-pin PWM |
Number of fans | 1 x |
Item number | 15791292 |
Manufacturer | Noctua |
Category | CPU coolers |
Manufacturer no. | NH-U12S redux |
Release date | 3.5.2021 |
Sales rank in Category CPU coolers | 103 of 893 |
Colour | Grey |
Exact colour description | Grey, Silver |
CPU cooler design | Single Tower |
Fan type | Top-Down Cooler |
Socket | AM2, AM2+, AM3, AM3+, AM4, FM1, FM2, FM2+, LGA 1150, LGA 1151, LGA 1155, LGA 1156, LGA 1200, LGA 2011, LGA 2011-v3, LGA 2066 |
Supported fan sizes | 120mm |

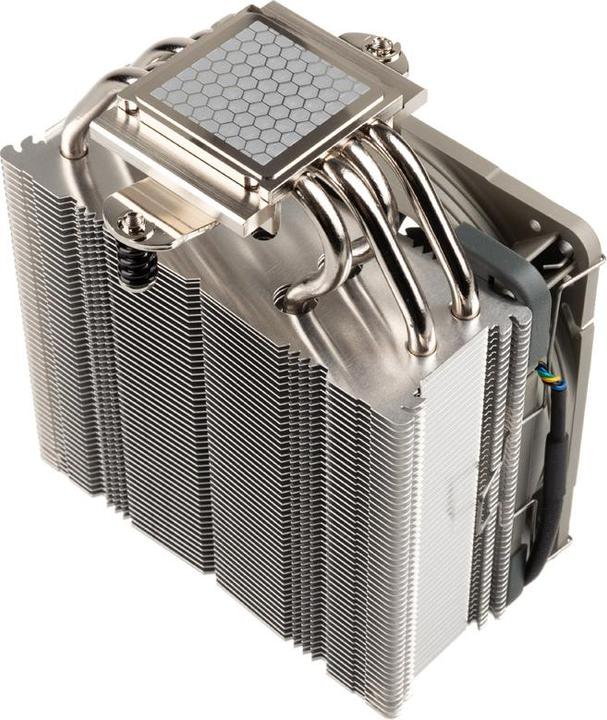

Number of heatpipes | 4 |
Materials radiator core | Copper |
Material cooling fins | Aluminium |
Diameter | 120 mm |
Length | 71 mm |
Width | 120 mm |
Height | 158 mm |
Weight | 755 g |
Number of fans | 1 x |
Max. Speed | 450 RPM |
Airflow | 120.20 m³/h |
Max. noise level | 25.10 dB |
LED colour | without LED |
power connector | 4-pin PWM |

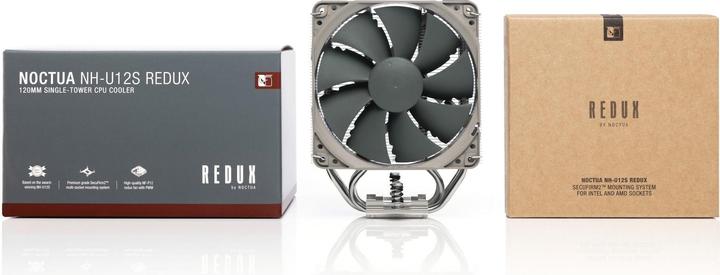

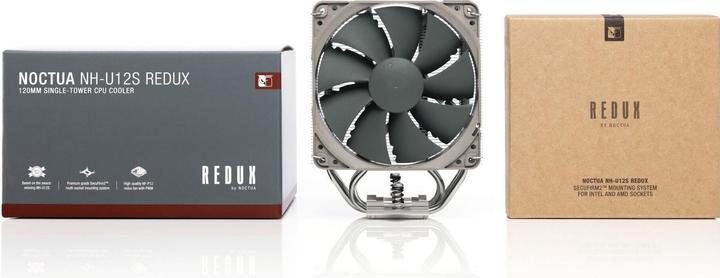

Scope of delivery | Processor cooler |
CO₂-Emission | |
Climate contribution |
Width (with fan) | 120 mm |
Length (with fan) | 71 mm |
Height (with fan) | 158 mm |
Weight | 700 g |
Length | 20.70 cm |
Width | 16.80 cm |
Height | 12.20 cm |
Weight | 1.17 kg |
How often does a product of this brand in the «CPU coolers» category have a defect within the first 24 months?
Source: Digitec GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: Digitec GalaxusHow often is a product of this brand in the «CPU coolers» category returned?
Source: Digitec Galaxus
Noctua is known for expensive, but also high-quality products. This makes the concept of a budget cooler all the more difficult. The NH-U12S redux can therefore be evaluated from several points of view. If the cooler itself is considered apart from its recommended price, it can be said that Noctua has developed a successful, compact tower cooler...
