−5%

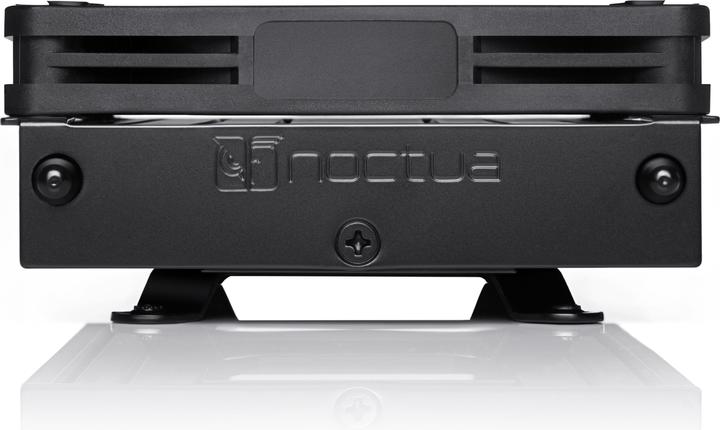

Noctua NH-L9a-AM4 chromax.black

37 mm
was CHF56.90
109Ratings
BrandMore from Noctua
Delivered between Wed, 15.4. and Sat, 18.4.
More than 10 pieces in stock at supplier
free shipping

Product details

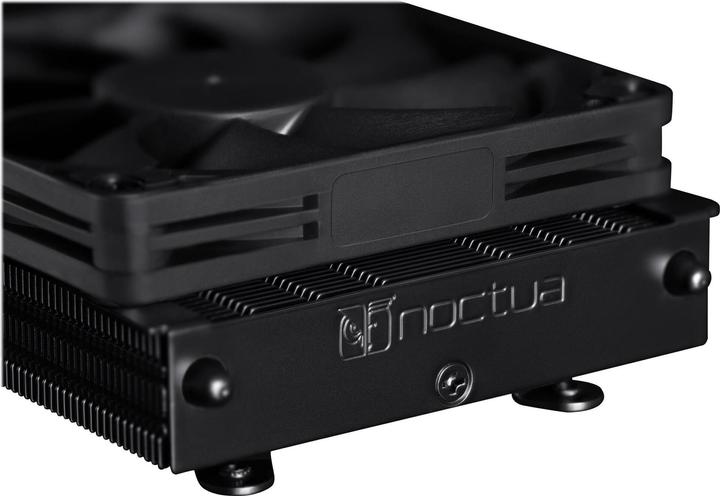

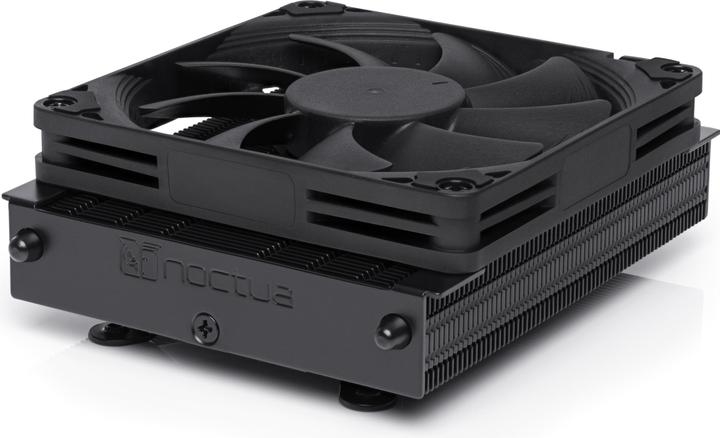

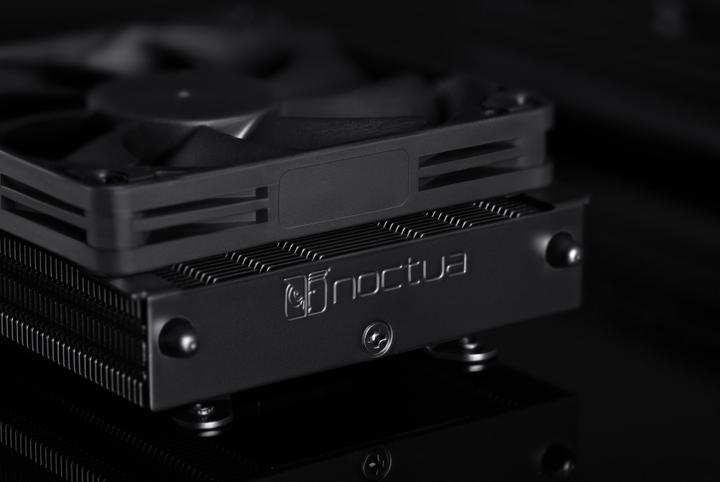

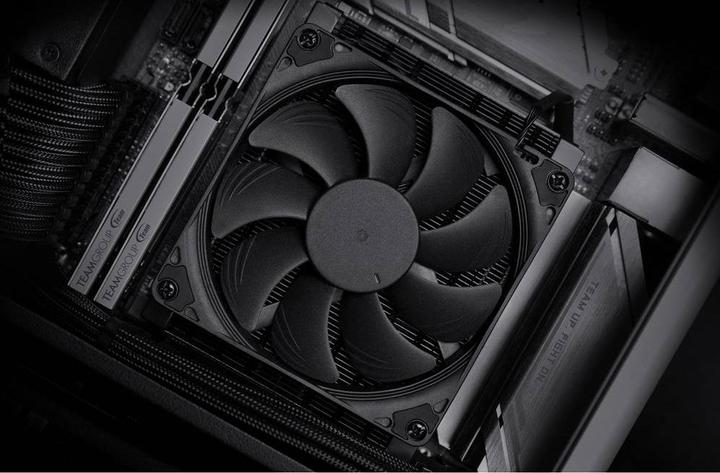

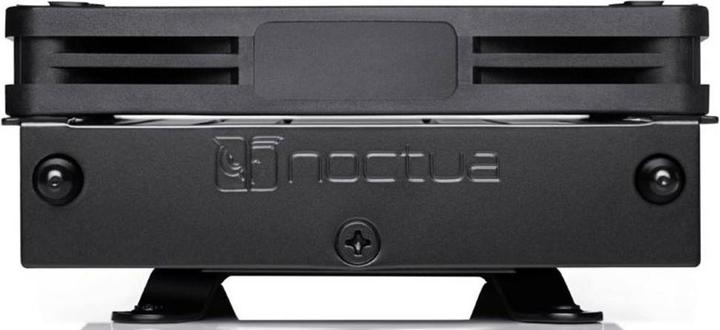

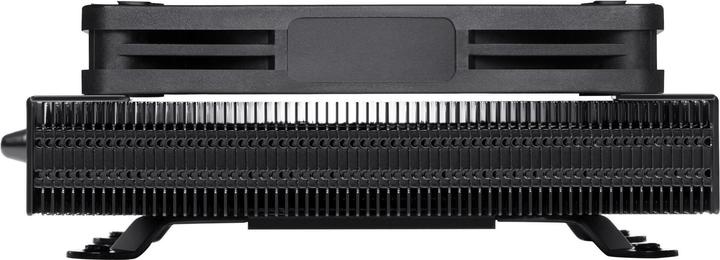

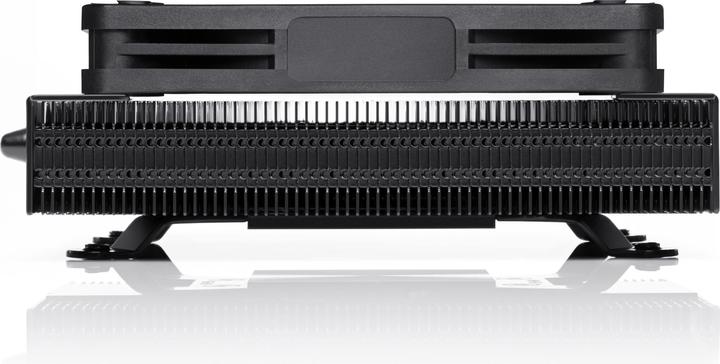

The NH-L9a-AM4 chromax.black is a completely black version of Noctua's award-winning low-profile cooler designed for AMD Ryzen-based HTPCs and small form factor systems, the NH-L9a-AM4. The successful formula remains unchanged thanks to the same super-flat heatsink and the proven NF-A9x14 PWM premium fan: strong cooling performance and excellent quiet operation at a height of just 37 mm, combined with RAM and PCIe compatibility. The chromax.black version, with its black fan and black-coated heatsink, also combines these advantages with a sleek stealth design. Completing the high-quality overall package is the renowned SecuFirm2 mounting system for AMD AM4 and Noctua's popular NT-H1 thermal paste.

Key specifications

Socket
AM4
Diameter
92 mm
Number of fans
1x
Airflow
57.50 m³/h
power connector
4-pin PWM
Height (with fan)
37 mm
Documents
Assembly instructions.pdf

General information

Item number
12663405
Manufacturer
Noctua
Category
CPU coolers
Manufacturer no.
NH-L9a-AM4 CH.BK
Release date
5.2.2020

Colour

Colour
Black
Exact colour description
Black

Cooler properties

CPU cooler design
Top Blower
Fan type
Top-Down Cooler
Socket
AM4
Cooler mounting
Screw
Supported fan sizes
92mm

Heat sink properties

Number of heatpipes
2
Materials radiator core
Aluminium
Material cooling fins
Copper

Fan dimensions

Diameter
92 mm

Fan properties

Number of fans
1x
Max. Speed
2500 RPM
Airflow
57.50 m³/h
Max. noise level
23.60 dB
LED colour
without LED
Fan bearing type
SSO2

Connections

power connector
4-pin PWM

Power supply

Power consumption
2.52 W
Voltage
12 V

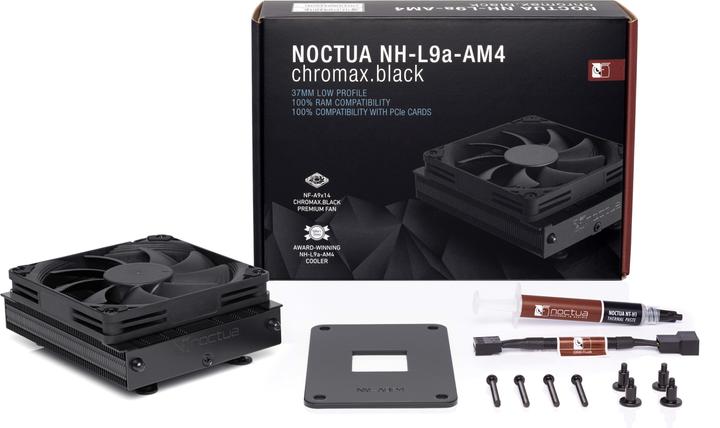

Scope of delivery

Scope of delivery
Black coated NH-L9a-AM4 heat sink, NF-A9

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
76.26 kg
Climate contribution
CHF 1.82

Product dimensions

Width (with fan)
95 mm
Length (with fan)
95 mm
Height (with fan)
37 mm
Weight
380 g

Package dimensions

Length
21.50 cm
Width
15.20 cm
Height
5.70 cm
Weight
723 g

30-day right of return
6 years Warranty (Bring-in)
