Name: Nh-D15
Brand: Noctua
SKU: 2580255
Price: 85.9 CHF
Availability: InStock
Rating: 4.8 (775 reviews)

productDetailPageQuery

Noctua

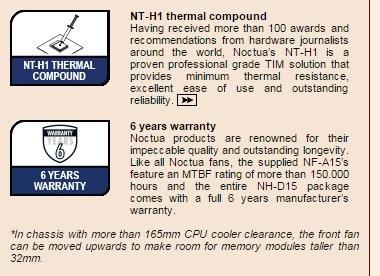

The Noctua flagship model NH-D15 is a dual-tower cooler of elite class, based on the legendary NH-D14, and continues its pursuit of ultimate cooling performance with the highest level of quiet operation. With its wider heat pipe layout and two NF-A15 140 mm premium fans featuring PWM support for fully automatic speed control, the NH-D15 can further enhance the award-winning efficiency of the NH-D14. The overall high-quality package of the NH-D15 is completed by the proven SecuFirm2 professional mounting system and Noctua's renowned NT-H1 thermal paste. Whether for overclockers or silent enthusiasts, the NH-D15 is a premium solution for the highest demands.

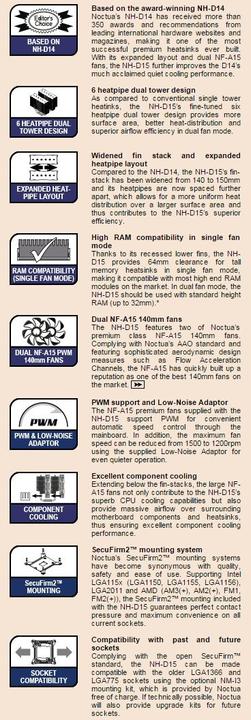

Based on the award-winning NH-D14, which has received over 350 recommendations and awards from leading international hardware websites and magazines, the NH-D14 is one of the most successful premium coolers of all time. The NH-D15 achieves improved silent cooling performance compared to the NH-D14, thanks to the wider arrangement of the heat pipes and the two NF-A15 fans.

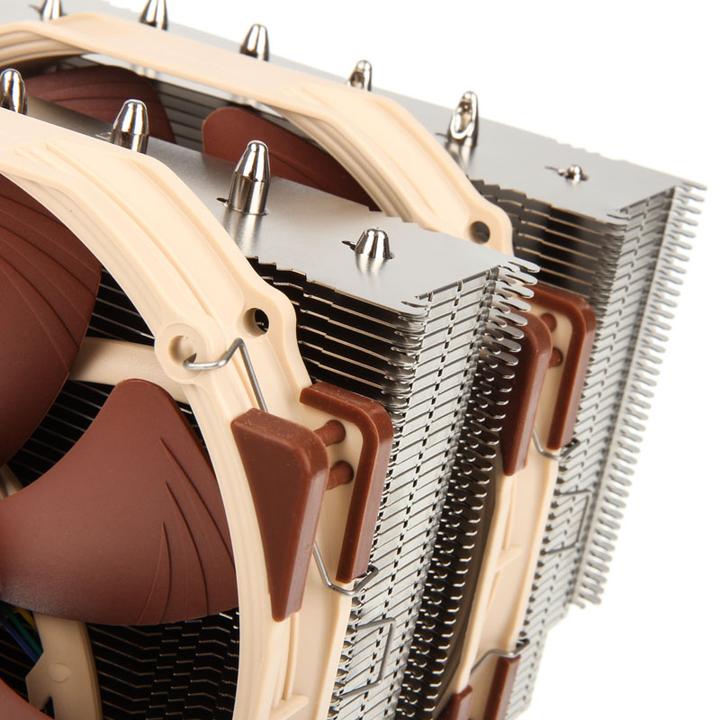

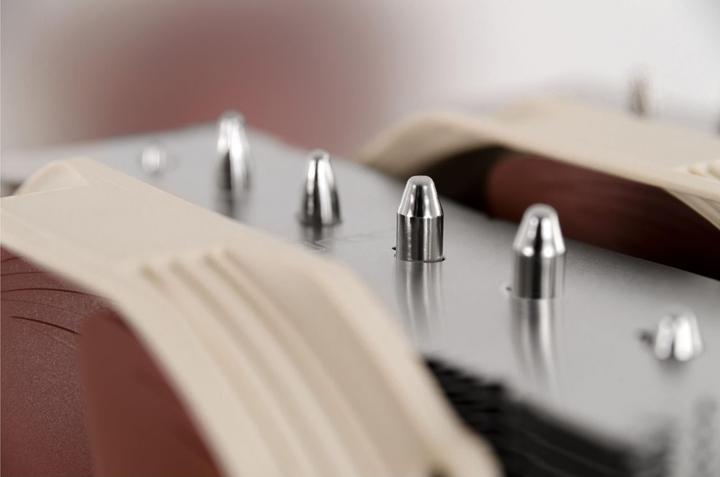

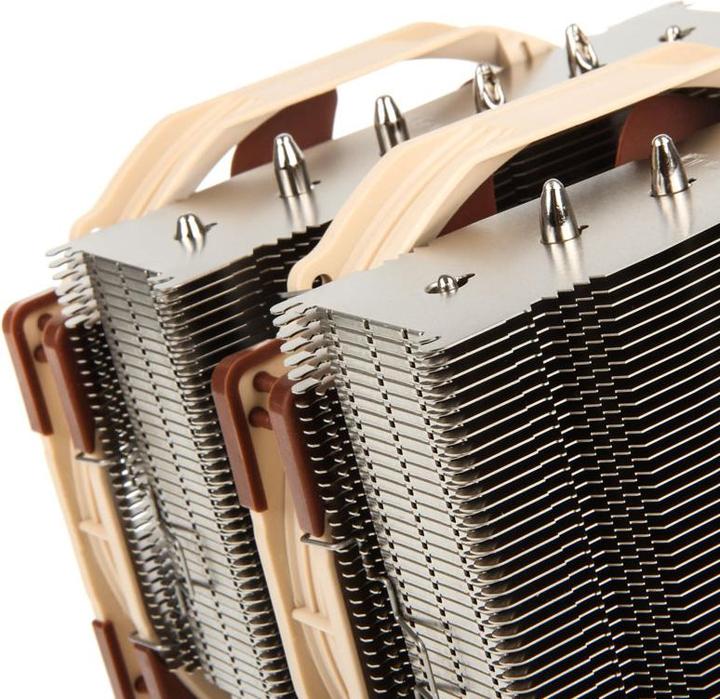

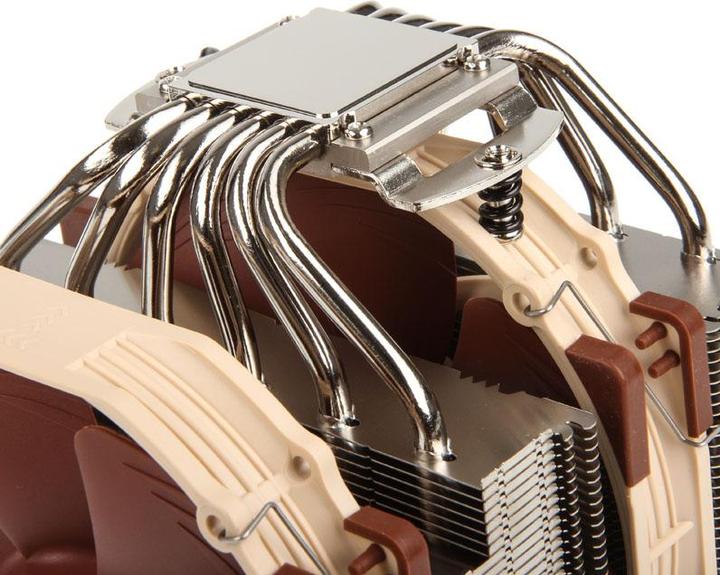

The dual-tower design with 6 heat pipes offers more cooling surface, better heat distribution, and superior airflow efficiency in dual-fan operation compared to conventional single-tower coolers. The width of the cooling fins has been increased from 140 mm to 150 mm, and the distance between the heat pipes has been widened. The improved heat distribution over a larger surface area achieved through these measures significantly contributes to the superior efficiency of the NH-D15.

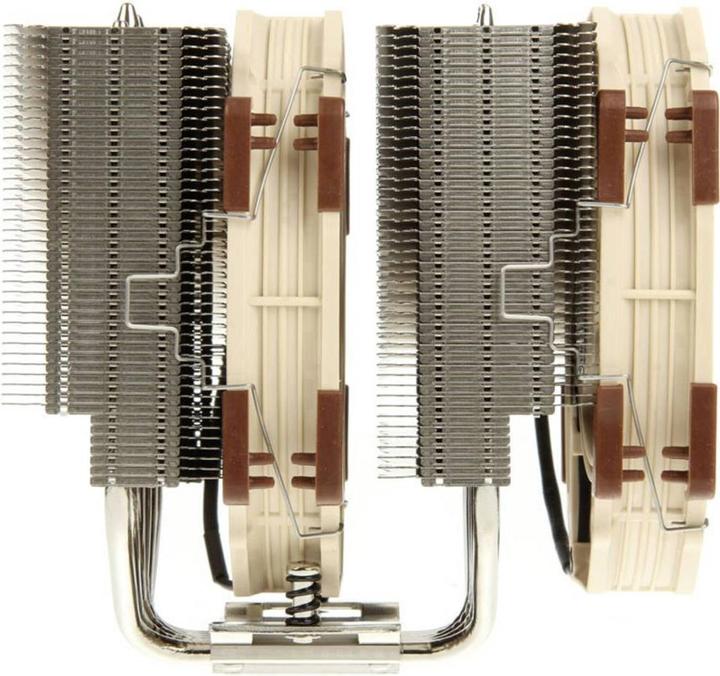

Thanks to the recessed lower cooling fins, the NH-D15 provides 62 mm of clearance for tall memory modules in single-fan operation—most current high-end modules can be used without any issues.

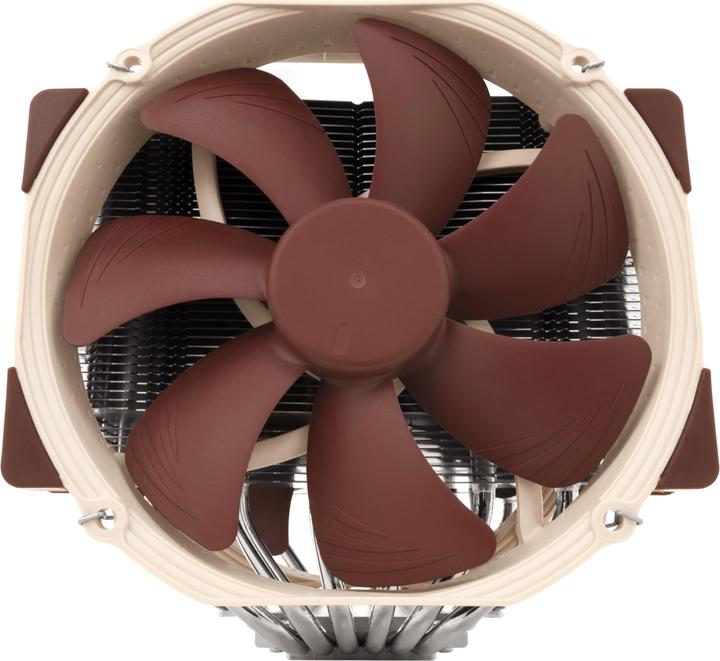

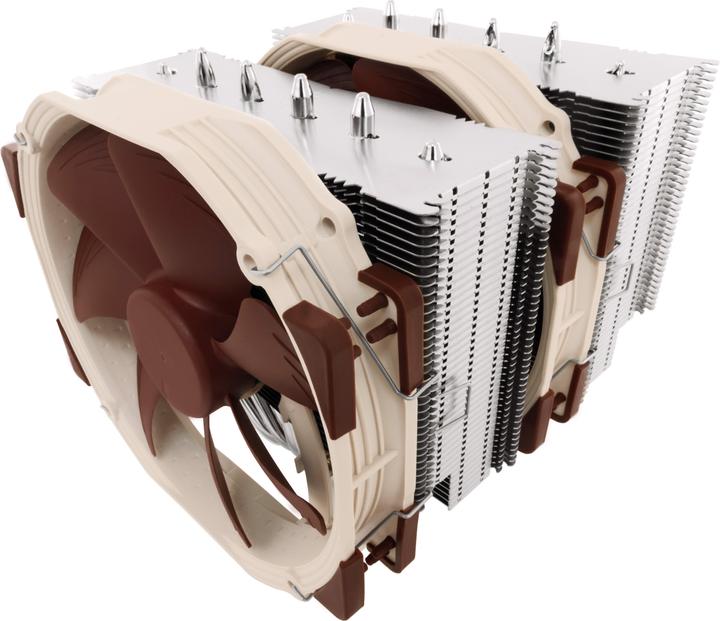

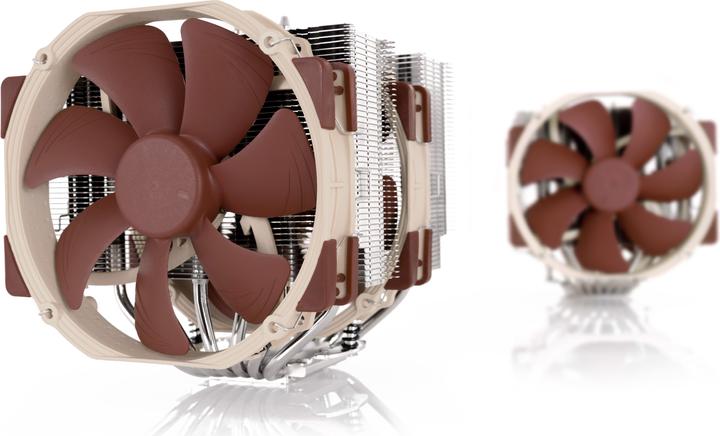

Actual product image Noctua Nh-D15 (165 mm)

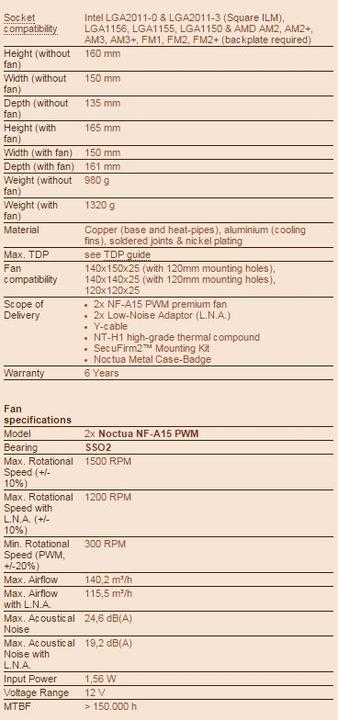

Key specifications

Socket

A CPU socket or CPU slot is a mechanical component that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the CPU to be replaced without soldering.
Common sockets have retention clips that apply a constant force, which must be overcome when a device is inserted. For chips with a large number of pins, either zero-insertion force (ZIF) sockets or land grid array (LGA) sockets are used instead. These designs apply a compression force once either a handle (for ZIF type) or a surface plate (LGA type) is put into place. This provides superior mechanical retention while avoiding the risk of bending pins when inserting the chip into the socket.

Diameter

Number of fans

Airflow

The air volume refers to the amount of air that can be moved or circulated per unit of time. It is often measured in cubic metres per hour or litres per second. A higher air volume generally indicates a stronger suction force or circulation of air.

power connector

Height (with fan)

Documents

The old one has had its day, a new one is needed - my home-made PC!

Nh-D15

CPU coolers

30-day right of return

General information

Colour

Cooler properties

Heat sink properties

Fan dimensions

Fan properties

Connections

Power supply

Power

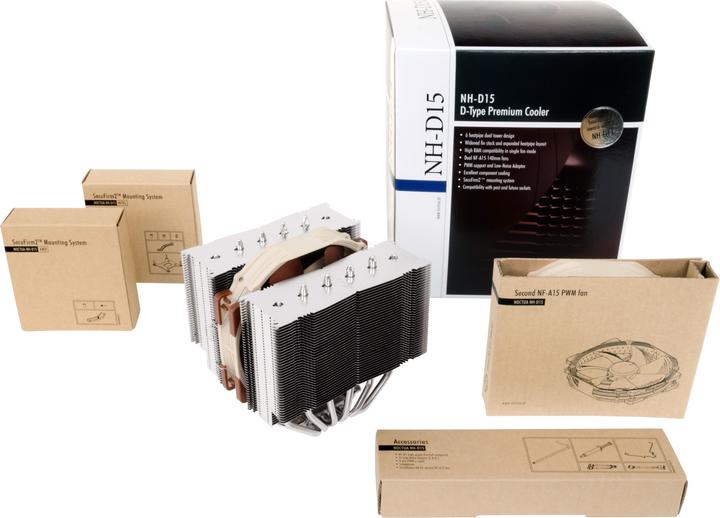

Scope of delivery

Origin

Voluntary climate contribution

Product dimensions

Package dimensions

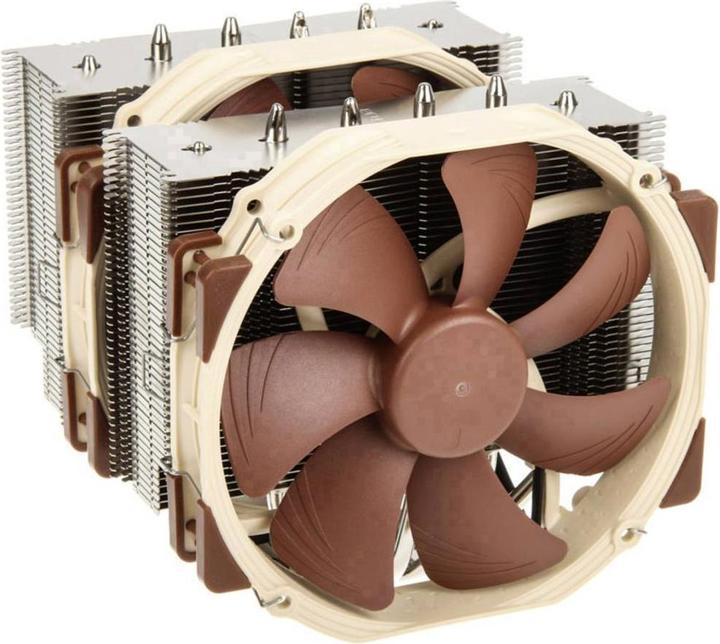

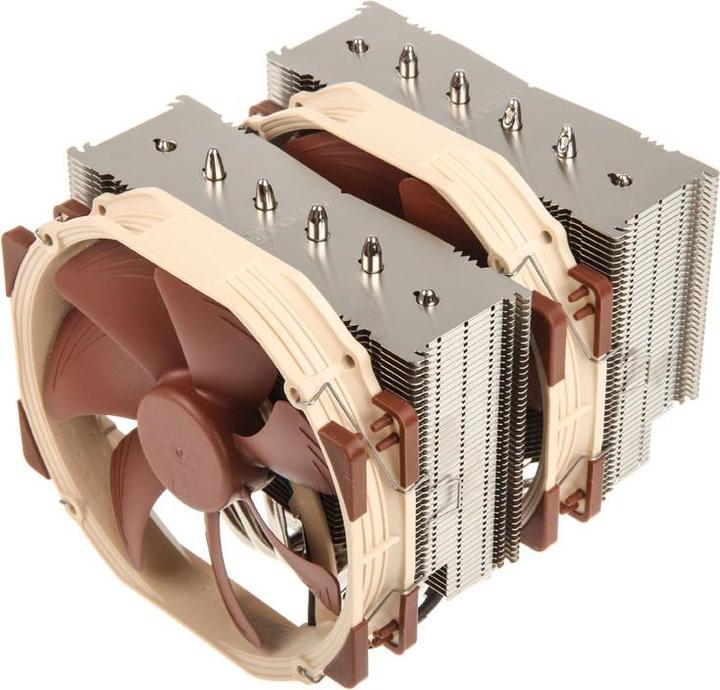

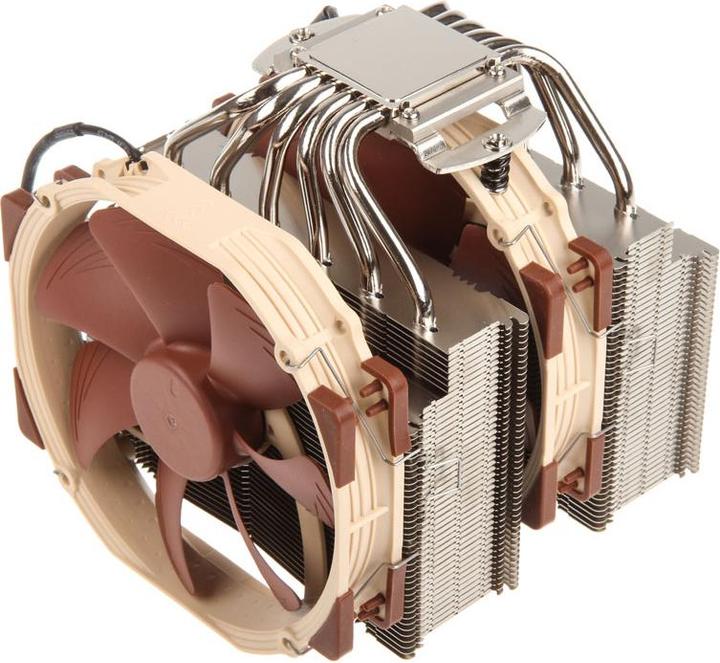

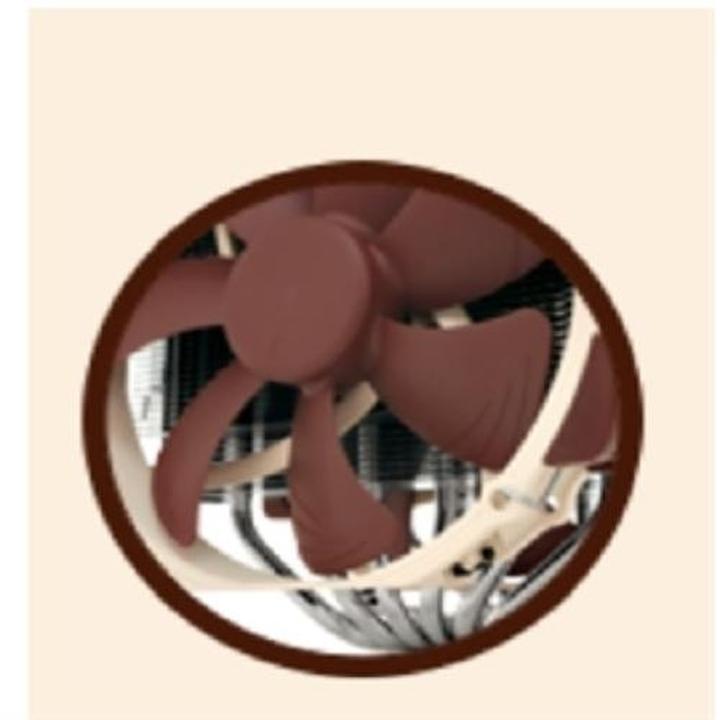

The CPU cooler features a dual-tower design with two 140 mm PWM fans for effective heat dissipation.

Dual-tower cooling principle

Due to the height of 165 mm, the component requires a sufficiently sized PC case.

Cooler height restriction

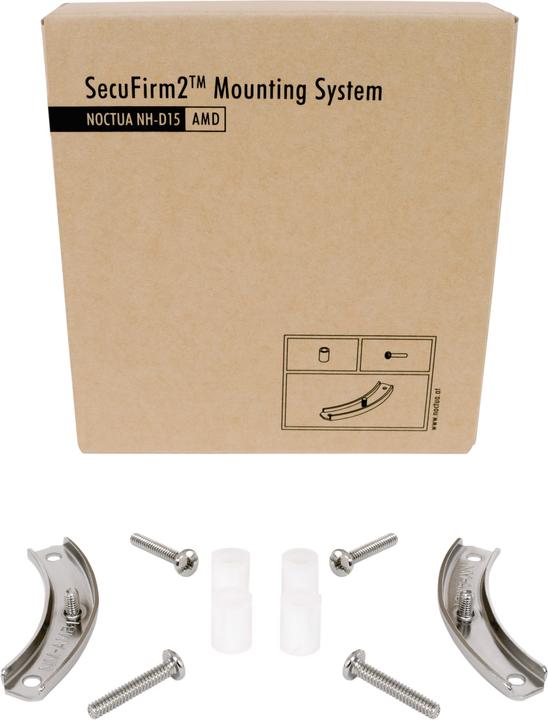

The manufacturer's own SecuFirm2 system enables the structured mounting of the cooler onto the motherboard.

Straightforward installation
