Name: NH-D12L
Brand: Noctua
SKU: 20422369
Price: 74.9 CHF
Availability: InStock
Rating: 4.8 (41 reviews)

productDetailPageQuery

Noctua

Powerful dual-tower CPU cooler for AM5 and LGA1700 sockets. Compatible with AM4, AM5, LGA 1150, LGA 1151, LGA 1155, LGA 1156, LGA 1200, LGA 1700, LGA 2011, LGA 2011 R3, and LGA 2066 processor sockets. Cooling type: Active (with fan). Dimensions (HxWxD): 158 mm x 125 mm x 112 mm. Maximum fan speed: 2000 rpm. Maximum airflow: 102.1 m³/h. Noise level during operation: 22.6 dBA.

The NH-D12L is a 120mm-class CPU cooler that offers a unique combination of excellent silent cooling performance and outstanding case compatibility due to its particularly low height. With a height of only 145 mm (13 mm shorter than the classic 120 mm Noctua models), it fits into numerous 4U systems as well as narrower tower cases that were previously limited to solutions with 92 mm fans.

Thanks to its dual-tower design with five heat pipes and the groundbreaking 120 mm fan NF-A12 x 25r, it achieves a performance level that surpasses many full-height 120 mm models. The single-fan configuration and asymmetric design ensure that the NH-D12L does not extend over the memory slots on AMD AM4/AM5 and Intel LGA1700/1200, providing 100% RAM compatibility.

The high-quality overall package is rounded off by the proven SecuFirm2 mounting system, Noctua's renowned NT-H1 thermal paste, and a 6-year manufacturer warranty. All in all, the NH-D12L is the perfect choice when top-notch cooling performance is required but there is not enough space for the larger NH-U12A.

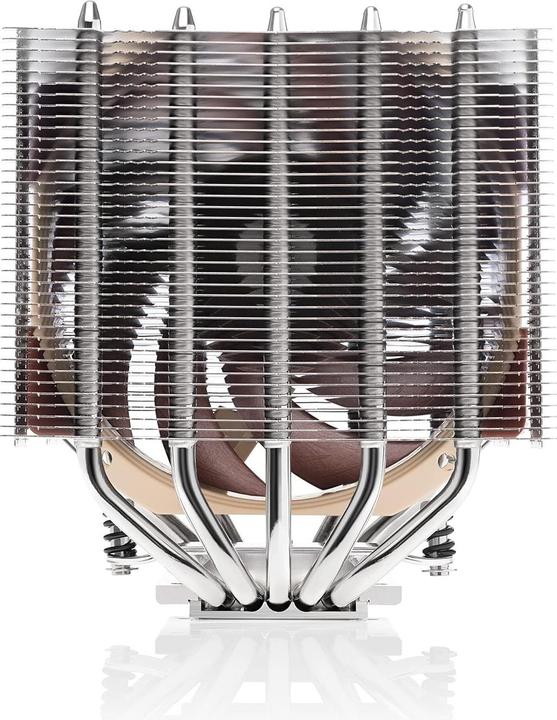

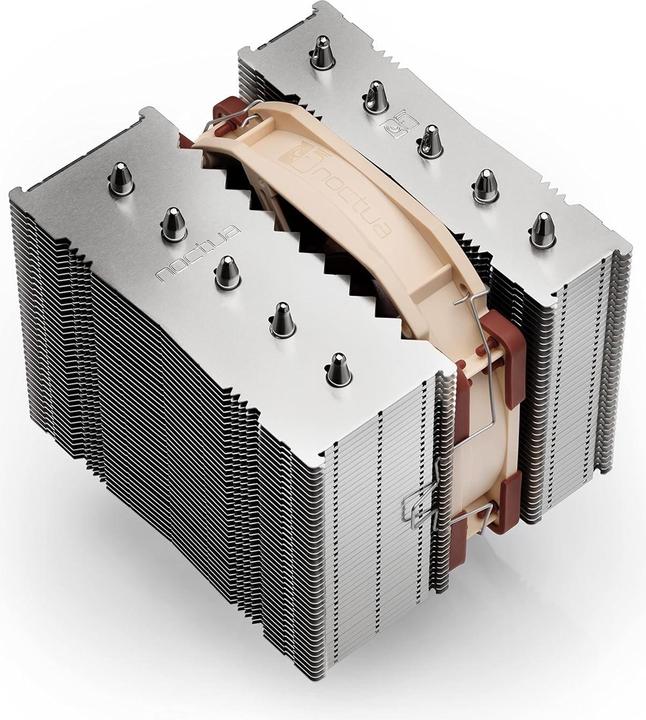

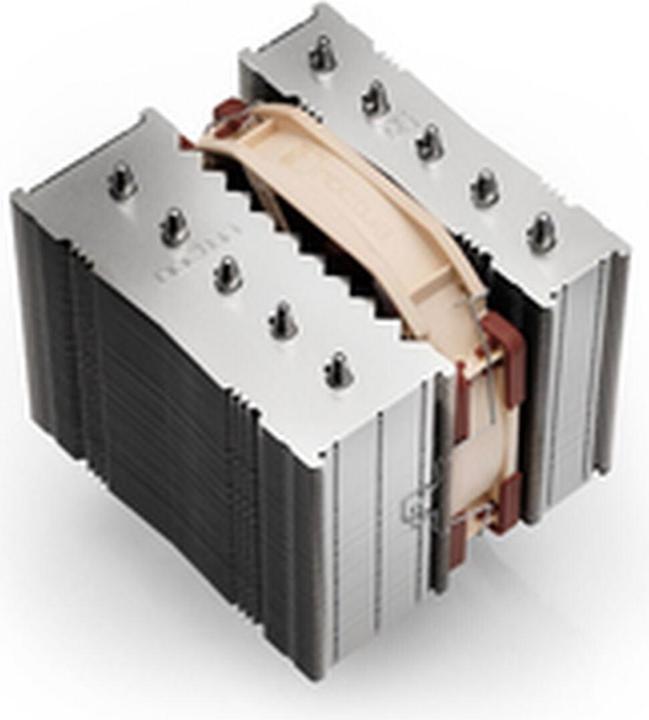

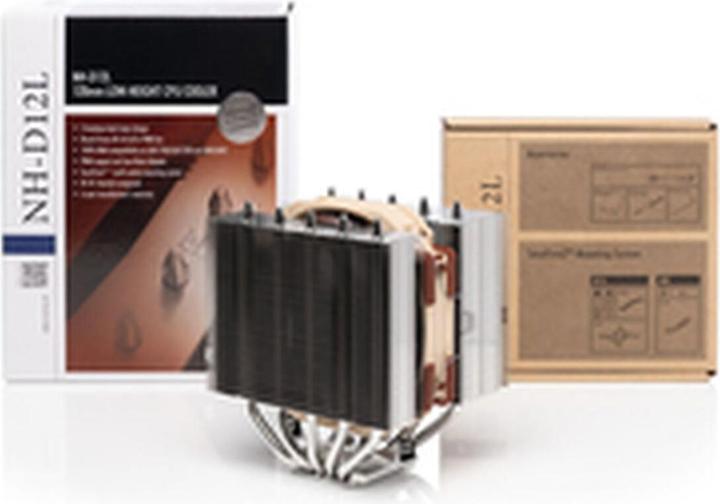

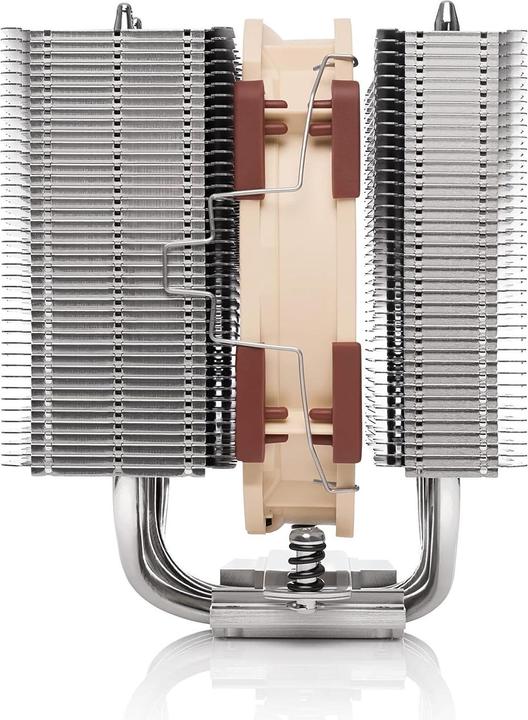

Actual product image Noctua NH-D12L (145 mm)

Key specifications

Socket

A CPU socket or CPU slot is a mechanical component that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the CPU to be replaced without soldering.
Common sockets have retention clips that apply a constant force, which must be overcome when a device is inserted. For chips with a large number of pins, either zero-insertion force (ZIF) sockets or land grid array (LGA) sockets are used instead. These designs apply a compression force once either a handle (for ZIF type) or a surface plate (LGA type) is put into place. This provides superior mechanical retention while avoiding the risk of bending pins when inserting the chip into the socket.

Diameter

Number of fans

Max. TDP

The thermal design power (TDP), sometimes called thermal design point, refers to the maximum amount of power the cooling system in a computer is required to dissipate. For example, a laptop's CPU cooling system may be designed for a 20 watt TDP, which means that it can dissipate up to 20 watts of heat without exceeding the maximum junction temperature for the computer chip. It can do this using an active cooling method such as a fan or any of the three passive cooling methods, convection, thermal radiation or conduction. Typically, a combination of methods is used. The TDP is typically not the most power the chip could ever draw, such as by a power virus, but rather the maximum power that it would draw when running "real applications". This ensures the computer will be able to handle essentially all applications without exceeding its thermal envelope, or requiring a cooling system for the maximum theoretical power (which would cost more but in favor of extra headroom for processing power).

Airflow

The air volume refers to the amount of air that can be moved or circulated per unit of time. It is often measured in cubic metres per hour or litres per second. A higher air volume generally indicates a stronger suction force or circulation of air.

power connector

Height (with fan)

NH-D12L

CPU coolers

30-day right of return

General information

Colour

Cooler properties

Heat sink properties

Fan dimensions

Fan properties

Connections

Power supply

Power

Scope of delivery

Origin

Voluntary climate contribution

Product dimensions

Package dimensions

Standing at 145 mm tall, the cooler fits into narrower tower chassis as well as compact 4U systems.

Compact height

Thanks to its asymmetric design, the fan does not overhang the memory slots on compatible sockets.

Unrestricted RAM compatibility

The SecuFirm2 mounting system ensures easy and secure installation on supported motherboards.
