Neol IP Power Switch

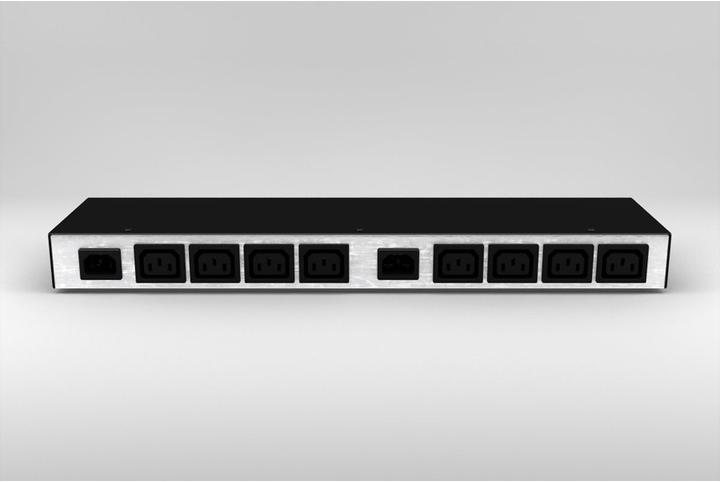

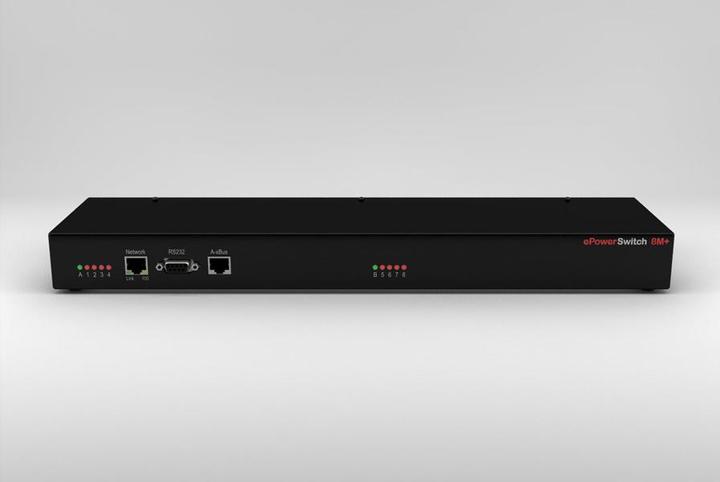

The ePowerSwitch 8M+ is an enhanced version of the ePowerSwitch 4M+. It features four additional power switches and a second power input to ensure redundant power supply. Furthermore, the device can be expanded to accommodate up to 40 controllable power switches. Configuration and setup are conveniently managed through a web interface. The new ePowerSwitch 8M+ offers ample flexibility for larger infrastructures with its extended cascading capabilities and associated performance features. A total of eight IEC320 power switches are available, which can be switched individually or in any groups. For managing and controlling the configuration, the web interface is additionally secured via SSL to ensure maximum security. A new high-speed RISC processor ensures stable and fast communication with the device. The previous external IO module has been integrated into the ePowerSwitch 8M+, providing eight digital inputs and four digital outputs on the front for easy connections to sensors, detectors, and other applications. The dual xBus connection (standard RJ45) is available for expansions (ePowerSwitch 8XS, ePowerSwitch 1XS, sensors, etc.) and supports both bus and star topologies. This way, the system can be expanded to accommodate up to 136 IEC320 power switches (16 x ePowerSwitch 8XS).
