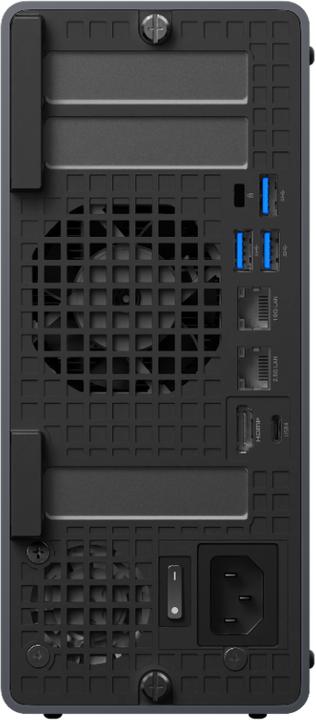

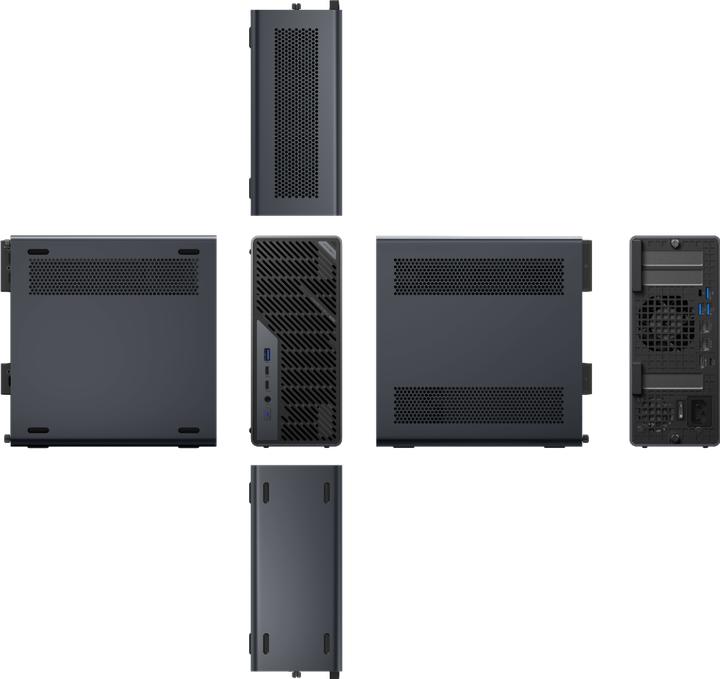

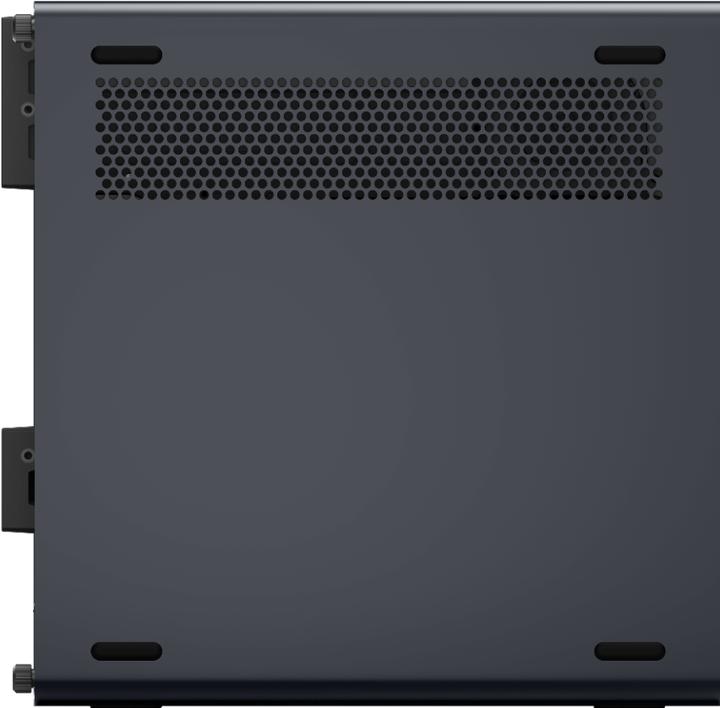

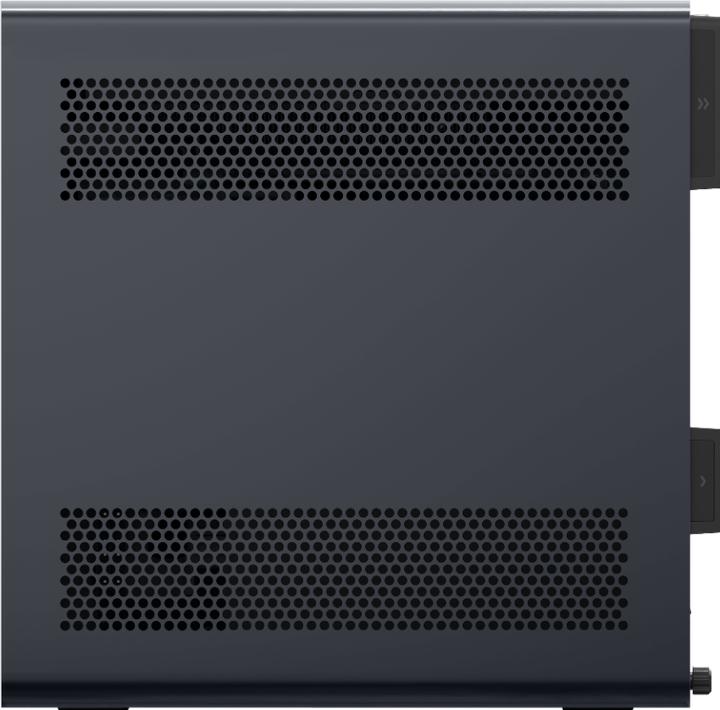

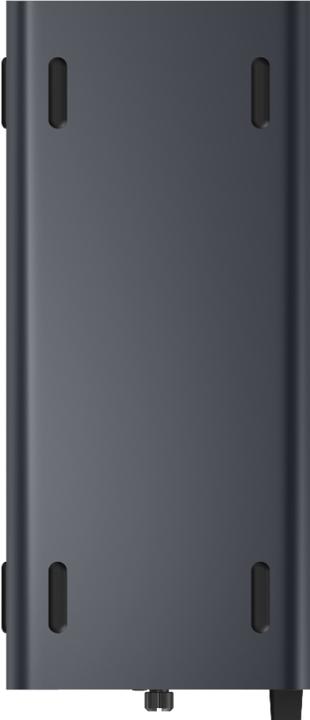

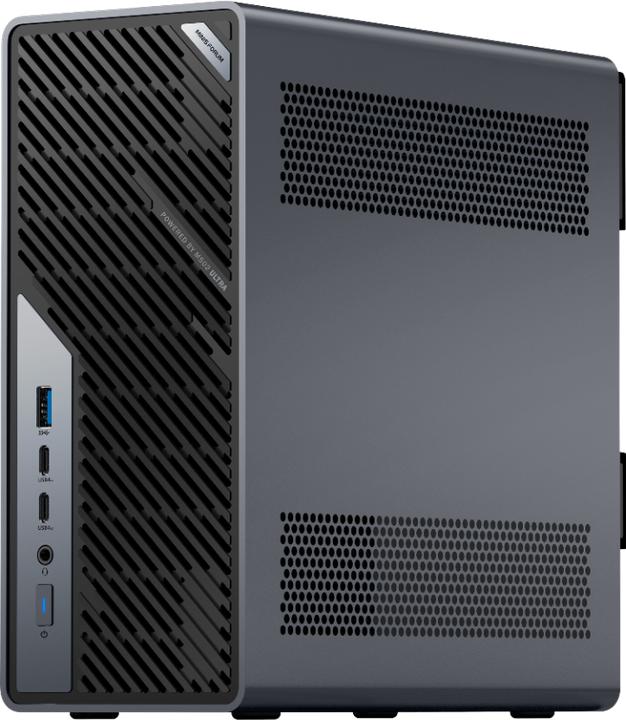

Minisforum MS-02 Ultra
Intel Core Ultra 9 285HXOnly 2 pieces in stock
Product details
The MS-02 Ultra from Minisforum is a powerful PC equipped with the Intel Core Ultra 9 285HX processor. This system offers a remarkable synergy between CPU, GPU and NPU, ensuring outstanding performance in various application scenarios. With four DDR5 SODIMM slots and the ability to integrate up to 256 GB of RAM, the MS-02 Ultra is ideal for demanding multitasking and compute-intensive tasks. The expandability is supported by PCIe 5.0 and several M.2 PCIe 4.0 slots, which enables flexible customisation to individual requirements. The compact design of the housing with a volume of just 4.8 litres and an integrated 350 W power supply unit ensures that the PC is both space-saving and powerful. In addition, the MS-02 Ultra offers a reliable network connection with dual 25 GbE and 10 GbE LAN, which enables lightning-fast data transfer. The server-grade thermal design ensures stable operation while keeping noise levels low.
- All-core synergy for optimal performance in various scenarios
- Enterprise-grade reliability with ECC memory and Intel vPro
- Ultra-fast 25 GbE network for fast data transfer
- Thermal design with 6 heatpipes and dual fans for efficient cooling
- Support for dual-slot GPU and expandable RAID configurations.
Number of processor cores | 24 -Core |
Memory type | DDR5-RAM |
Graphics card model | Intel Arc Graphics |
Internal connection options | M.2 PCIe (4x) |
USB ports | USB-A, USB-C |
Network connections | RJ45 10 Gigabit Ethernet (1x), RJ45 2.5 Gigabit Ethernet (1x), SFP+ (2x) |
Video connections | HDMI (1x), USB 4 (1x) |
Documents | Technical data sheet.pdf |
Item number | 65932024 |
Manufacturer | Minisforum |
Category | Barebones |
Manufacturer no. | 363742 |
Release date | 24.12.2025 |
Sales rank in Category Barebones | 4 of 688 |
May include power adapter | Yes |
Design | Small Form |
Processor type | Intel Core Ultra 9 285HX |
Number of processor cores | 24 -Core |
Socket | BGA 2114 |
Max. TDP | 160 W |
Processor properties | Onboard processor |
Memory type | DDR5-RAM |
Memory form factor | SO-DIMM |
Memory Slots available | 4 |
Max. memory slots | 4 |
Max. RAM | 256 GB |
Graphics card model | Intel Arc Graphics |
Hardware application range | Multimedia |
Max. connected monitors | 2x |
Internal connection options | M.2 PCIe (4x) |
RAID configuration | 0, 1, 10, 5 |
USB ports | USB-A, USB-C |
Exact USB ports | USB-A 3.2 Gen 2 (4x), USB-C 4 (3x) |
Network connections | RJ45 10 Gigabit Ethernet (1x), RJ45 2.5 Gigabit Ethernet (1x), SFP+ (2x) |
Max. port speed | 25000 Mbit/s |
Connectivity | Bluetooth, WLAN |
Wi-Fi standard | Wi-Fi 7 / 802.11be |
Bluetooth version | 5.4 |
Video connections | HDMI (1x), USB 4 (1x) |
Audio outputs | 3.5mm jack (1x) |
Power | 350 W |
Country of origin | China |
CO₂ emissions | 520.53 kg |
Climate contribution | CHF 12.38 |
Scope of delivery | Power supply |
Width | 227 mm |
Length | 94 mm |
Height | 220 mm |
Length | 34.90 cm |
Width | 29.80 cm |
Height | 15.90 cm |
Weight | 4.56 kg |
