MicroSwiss Micro Swiss MK10.4 mm All Metal Hotend Kit

Micro Swiss MK10 0.4 mm All-Metal Hotend

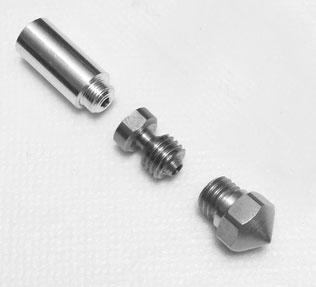

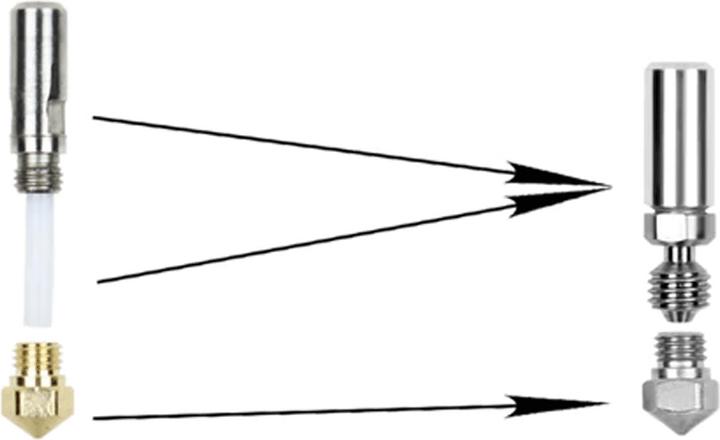

This is an all-metal hotend upgrade kit for MK10-style extruders. The heat break is made from two different materials. The lower thermal barrier is made of stainless steel, while the cooler upper part is made of aluminum. Stainless steel was chosen for the thermal break because it offers low thermal conductivity, and aluminum was used for the upper part because it has much better thermal conductivity to dissipate any heat from the filament.

With an all-metal hotend, you can print at much higher temperatures than with the original PTFE-lined hotend. Another advantage of an all-metal hotend is the more consistent control of the melt chamber. At slow extrusion speeds, the transition zone between solid and molten plastic in PTFE-lined hotends tends to creep upwards, leading to stringy prints. In the all-metal version, the transition zone remains constant, as it is located directly at the thermal break.

At high extrusion speeds, the PTFE tube does not have enough thermal conductivity to properly melt all the exiting plastic. For MK10 extruders, this limitation occurs at around 60 mm/s, depending on the nozzle size. The all-metal hotend resolves this issue, as the plastic is surrounded by a thermally conductive nozzle along its entire length.

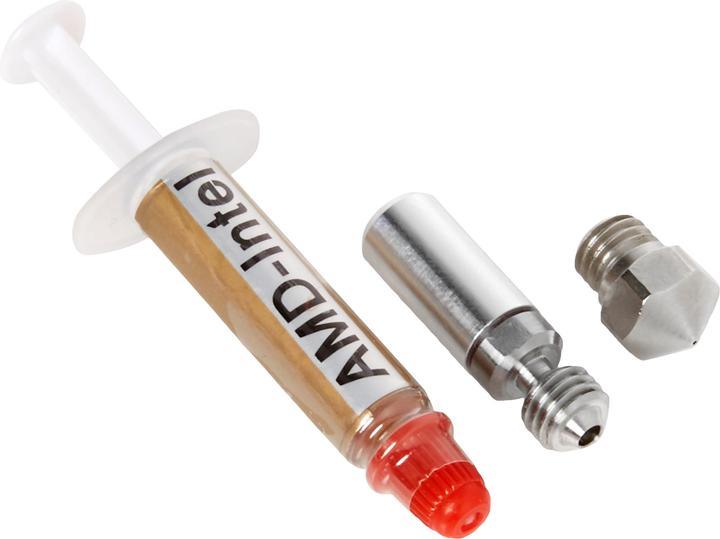

The kit includes:

• 1 wear-resistant nozzle made of plated brass
• 1 thermal tube
• 1 thermal paste

Available nozzle sizes: 0.2 mm, 0.3 mm, 0.4 mm, 0.5 mm, 0.6 mm, 0.8 mm, 1 mm, 1.2 mm

Compatible with:

• FlashForge Creator Pro
• FlashForge Creator X
• FlashForge Dreamer
• QIDI TECH ID
• Dremel Idea Builder
• PowerSpec 3D Pro
• PowerSpec 3D X
• PowerSpec Ultra 3D Printer
• Wanhao Duplicator 4S
• Wanhao Duplicator 4X
• Wanhao i3
• Monoprice Maker Select 3D Printer v2
• Cocoon Create 3D Printer.
