Metz Connect Multifunction time relay MFRk E08 230VAC/24VUC 1WE 30h

Ratings
BrandMore from Metz Connect
Delivered between Wed, 15.4. and Tue, 21.4.
Only 2 pieces in stock at supplier
Free shipping starting at 50.–

input voltage2

Product details

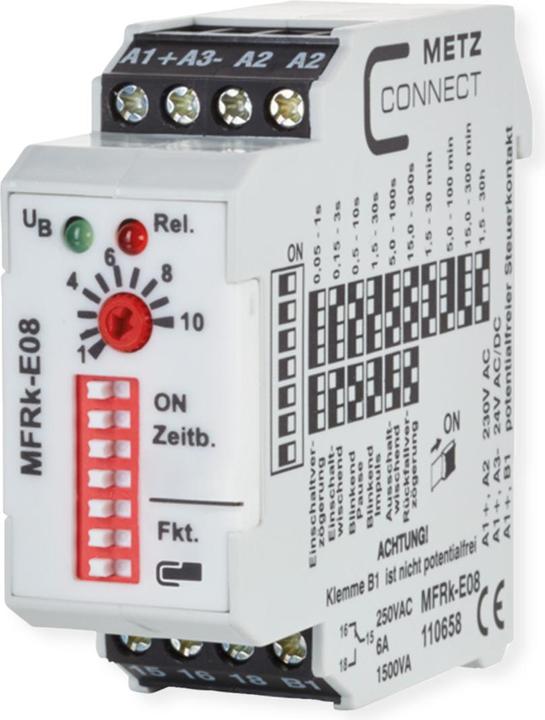

Metz Connect Time Relay MFRk-E08 230AC24UC

Manufacturer: Metz Connect
Designation: Time relay 1W, 30h
Type: MFRk-E08 230AC24UC
Electrical connection type: Screw connection
Complete device with base: yes
Suitable for DIN rail mounting: yes
Suitable for front mounting: no
Delayed response function: yes
Delayed drop-out function: yes
Switching on delay function: yes
Switching off delay function: yes
Flashing function starting with pause, fixed time: yes
Flashing function starting with pulse, fixed time: yes
Time range: 180..108000 s
Remote control possible: no
Suitable as remote control: no
Rated control supply voltage Us at AC 50 Hz: 24..230 V
Rated control supply voltage Us at DC: 24 V
Voltage type for operation: AC/DC
Number of outputs, non-delayed, changeover: 1
Outputs, switchable delayed/non-delayed: no
With semiconductor output: no
Material of contact insert: other
Material of contact: Silver tin oxide (AgSnO2)
Material of contact coating: other
Rated current: 6 A
Protection class (IP): IP20
Width: 22.5 mm
Height: 60 mm
Depth: 60 mm

Metz Connect Time Relay MFRk-E08 230AC24UC: additional details
Multifunctional time relay with built-in coding switches for function setting. The time setting is done via a linear potentiometer on a relative scale. Connection with screw terminals, ten adjustable time ranges from 0.05 s to 30 h, seven functions adjustable:
1. Delayed switch-on
2. Switching on delay
3. Delayed drop-out
4. Switching off delay
5. Flashing starting with pause
6. Flashing starting with pulse
7. Drop-out delay with lock on control contact B1.

Key specifications

Relay type
Time relay
input voltage
24 V
Output voltage
250 V
Electric current output
6 A
Output current type
AC/DC

General information

Item number
21168201
Manufacturer
Metz Connect
Category
Relays
Manufacturer no.
110658
Release date
1.5.2021

Relay properties

Relay type
Time relay
input voltage
24 V
Output voltage
250 V
Electric current output
6 A
Output current type
AC/DC
Switching function
Changer
Number of closers
1x

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
29.26 kg
Climate contribution
CHF 0.70

Product dimensions

Length
70 mm
Width
22.50 mm
Height
61.30 mm
Weight
75 g
