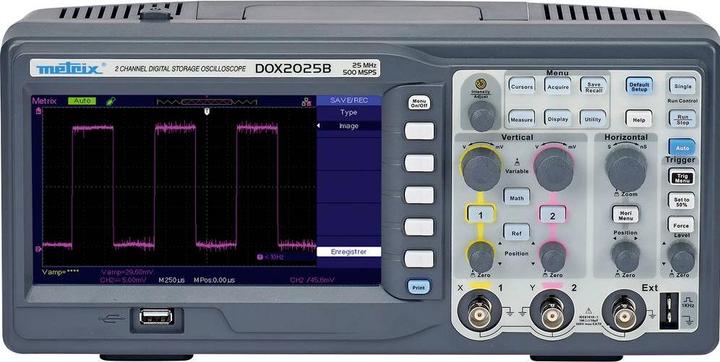

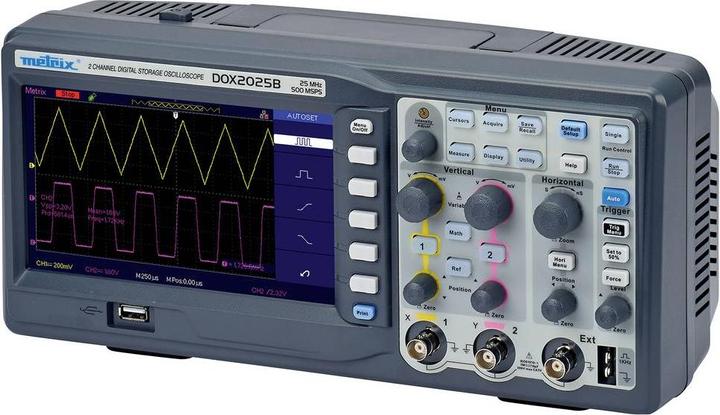

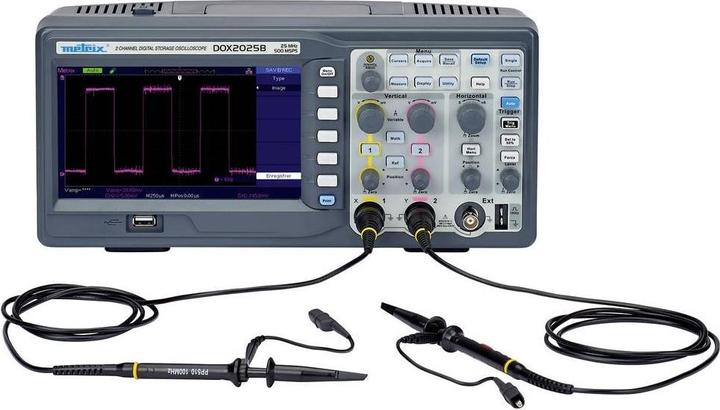

Metrix DOX2025B Digital Oscilloscope 20MHz 2-Channel 50 GSa/s 32 kpts 8 Bit Digital Memory (DSO) 1pc.

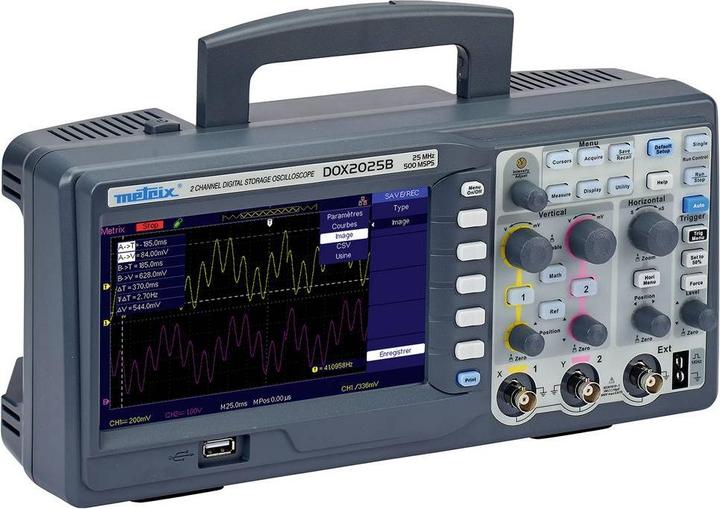

The Metrix oscilloscopes of the DOX 2000B series are very easy to use and are housed in a space-saving, shallow case designed specifically for laboratory workstations. The large screen features 16 divisions on the X-axis in full-screen mode and is individually configurable: normal or afterglow display, YT or XY representation, settings for colours, screen grid, brightness, contrast, etc. Knobs and illuminated direct function keys on the front panel facilitate operation. The oscilloscope can be easily transported using the handle, and the non-slip feet ensure stable placement on the workbench.

High performance and a variety of capture and analysis functions. Signal capture and analysis occur on three levels, in real-time or time-equivalent. The capture memory has a depth of 32K points, and additional storage can be created via a USB stick for optimal analysis. The sensitivity is vertical in 12 measurement ranges from 2 mV/div to 10 V/div and horizontal from 5 ns/div to 50 s/div. Advanced functions are available: simple MATH functions + / - / x / ÷ as well as a real-time FFT function with simultaneous curve display. A practical PASS/FAIL function: OK/NOK test based on a limiting envelope. The included EASYSCOPE software allows for device operation, testing, and the transfer of curve files and screen copies.
