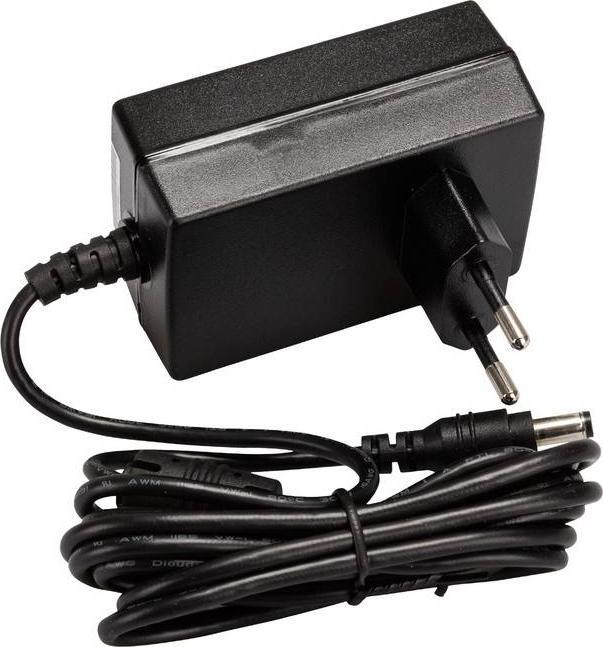

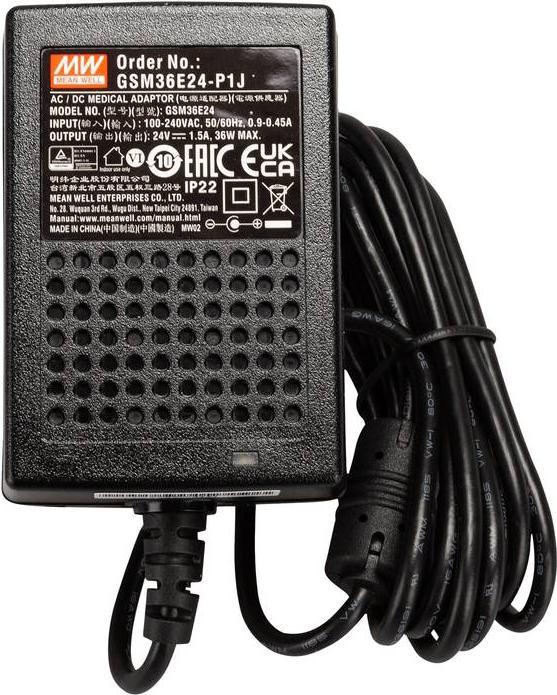

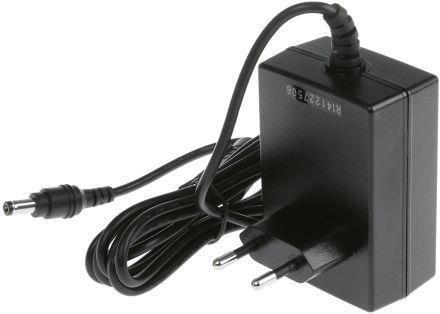

MeanWell Power Adapter Plug In ErP Medical 24V

Input voltage: 113 to 370 V DC, 80 to 264 V AC
Output voltage: 24 V DC
Output current: 1.5 A
Plug type: 2-pole Type C – Euro plug
Output connection: P1J
Rated power: 36 W
Type: Universal
Number of outputs: 1
Length: 54 mm
Cable length: 1.8 m
Ripple and noise voltage: 180 mV ss
Medical certification: Yes
Width: 54 mm

TÜV EN60601-1, 60601-1-11. 2-pole Euro power supply, ErP, energy-saving, 5 W to 25 W, medical technology. The GSM18E complies with international safety regulations for medical technology and these plug power supplies also feature a low leakage current of less than 50 μA and a no-load power consumption of less than 0.1 W, meeting the requirements for medical devices with patient contact. The GSM18E series also meets energy-saving regulations according to Level V such as ErP Level 2 and EISA 2007. These 2-pole Euro plug power supplies are Class II power devices and have a plastic housing according to UL 94V-0. The GSM18E is certified by TÜV, CB, and CE, ensuring safety for various applications, such as medical devices requiring low leakage current, portable medical devices, home health products, and other electrical systems requiring low standby power consumption. Universal AC input, 2-pole Euro plug, low leakage current under 50 A, protection: short circuit/overload/overvoltage, fully enclosed housing, approved for medical technology (2 x MOPP between primary and secondary), Class II power supply (no earth connection), LED indicator light for operational display, power consumption at no load under 0.1 W, compliant with ErP Level 2 (Level V), meets EISA 2007 (Energy Independence and Security Act), optional DC connector with locking, 3-year warranty.
