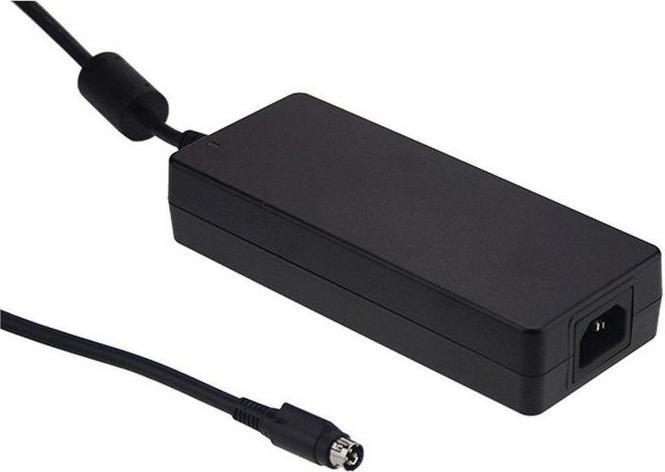

MeanWell Power Adapter Desk Top C14 48V 160W

Input voltage: 80 to 264 V AC
Output nominal voltage: 48 V DC
Output current range: 0 to 3.34 A
Output nominal power: 160 W
Input connection: IEC 320-C14
Output connection type: 4-pin power cable according to DIN
Number of outputs: 1
Regulator type: Switching power supplies
Medical certification: Yes
Ripple and noise voltage: 240 mV ss
Input voltage regulation range: ±1 %
Load voltage regulation range: ±3 %
Overall dimensions: 175 x 72 x 35 mm

Plug-in power supply of the GSM120/160/220A series from Mean Well. Mean Well GMS is a series of highly reliable desktop power supplies for medical purposes. The series features an IEC-C14 connection for an input range of 80 V AC to 264 V AC. The GMS06E series offers fixed outputs from 12 V DC to 48 V DC, designed for a variety of medical devices. The series has been developed to meet international medical 2*MOPP standards and offers extremely low leakage current. The GSM series is also efficient, providing up to 94% efficiency along with an extremely low power consumption of under 0.15 W in no-load operation. The series has also been designed in accordance with the latest Level V energy regulation. Mean Well has integrated a "Supreme" function into the GSM series, allowing the power supply to save energy in both operating and standby modes.

Features and benefits:

• 3-pin IEC-C14 connection
• Medical certification
• Meets Level V efficiency
• Universal AC input for the full range
• Class I power supply (with earth contact); 100 µA low leakage current
• Up to 94% efficiency
• Integrated active PFC function
• LED status indicator
• Fully enclosed plastic housing
• Protection according to industrial standards, e.g., against short circuit, overload, overvoltage, and overheating
• Fanless design provides operating temperatures from –30 °C to +70 °C

Typical applications include: mobile workstations, respiratory machines, medical computer monitors, oral irrigators.
