MDT Time switch

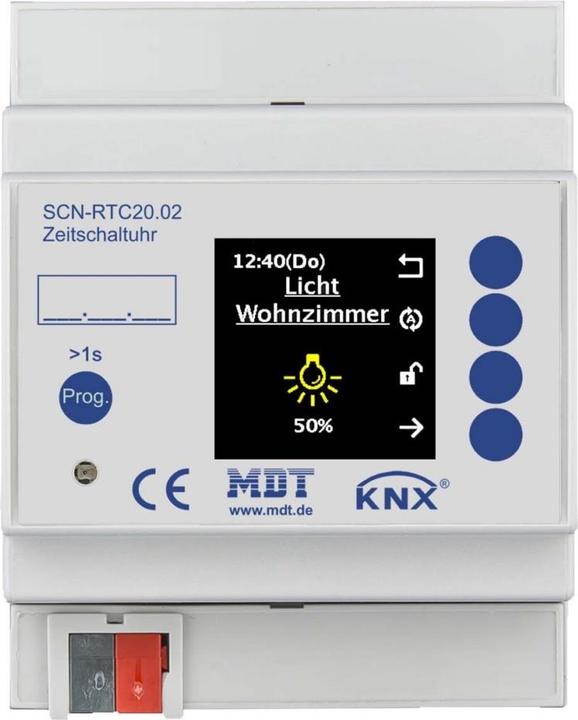

MDT technologies switch timer with 20 channels SCN-RTC20.02. Manufacturer: MDT technologies. Description: Switch timer with 20 channels, color display, 4TE, DIN rail mount. Type: SCN-RTC20.02. KNX bus system: yes. KNX radio bus system: no. Radio bus system: no. LON bus system: no. Powernet bus system: no. Other bus systems: none. Bidirectional radio: no. Daily program: yes. Weekly program: yes. Annual program: no. Astro program: yes. Mounting type: DIN rail. Width in division units: 4. External programming: no. Number of channels: 20. Number of outputs: 20. Presence simulation: no. Summer/Winter time: yes. Radio-controlled (DCF77): no. GPS: no. With bus coupling: yes. With memory card: no. Holiday advancement: no. Secondary clocks controllable via bus: no. Power consumption: 0.3 W. Backup time: 24 h. Protection class (IP): IP20.

MDT technologies switch timer with 20 channels SCN-RTC20.02: additional details. KNX switch timer with 20 channels and active color display, 4TE DIN rail mount. Timer with daily/weekly/astro switching function. Designed for installation in a DIN rail housing. Timer with 20 channels (8 switching times per channel). Switching times can be set via ETS and directly on the device. Daily/weekly/astro switching function, backup time. Automatic holiday calculation. Output objects for date and time (Master). Date and time adjustable via KNX bus (Slave). Special channel for day/night function. Blind function to control height and slat per channel. Output objects for azimuth and elevation angle. Protection against unauthorized access through code lock function (1 user). Adjustable retrieval of switching times per channel. Cyclic sending in normal operation. Threshold comparator 1 - 4 bytes. 8 logic blocks with 4 inputs each. EAN: 4251916100155.
