MDT Glass button

MDT technologies Glass Switch Plus 8-fold BE-GT08S.01

Manufacturer: MDT technologies
Designation: Glass Switch Plus 8-fold black
Type: BE-GT08S.01
KNX bus system: yes
KNX wireless system: no
Wireless bus system: no
LON bus system: no
Powernet bus system: no
Other bus systems: none
Bidirectional wireless: no
Mounting type: flush-mounted
With theft/dismantling protection: no
With bus coupling: yes
Number of activation points: 8
Number of buttons: 8
Power consumption: 0.3 W
With LED display: yes
With labeling field: yes
With display: no
Material: glass
Material quality: other
Surface protection: other
Surface finish: glossy
Color: black
Transparent: no
With room thermostat: no
With infrared sensor: no
Protection class (IP): IP20
Minimum depth of device box: 35 mm

MDT technologies Glass Switch Plus 8-fold BE-GT08S.01: additional details

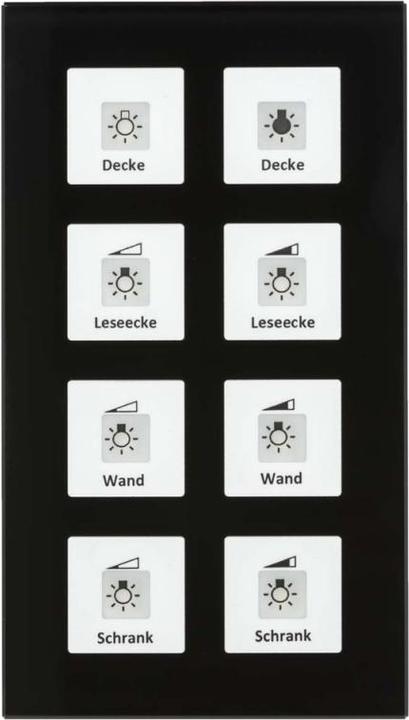

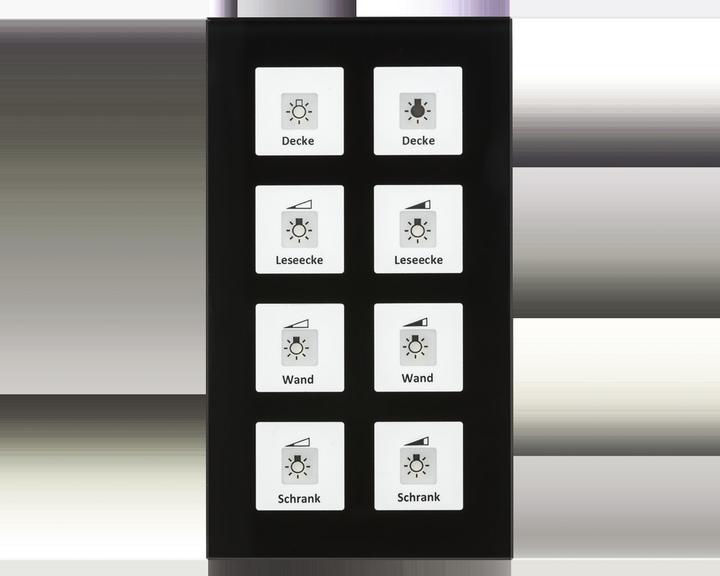

KNX Glass Switch Plus 8-fold, black. Version with 8 sensor surfaces and LEDs for operation/status display. The buttons can be freely configured as button pairs or individual buttons. Values can be sent, forced control and switching commands can be set. Short/long button press with 2 objects. Surrounding orientation light. White/red LED per sensor surface. LED brightness adjustable in 5 levels via day/night object. Single and double button operation for dimmer/blind functions. Labeling film to be inserted under the glass surface. Installation in switch box, delivery includes labeling film. Dimensions (H x W): 163 x 92 mm. Integrated bus coupler. EAN: 4251916110215.
