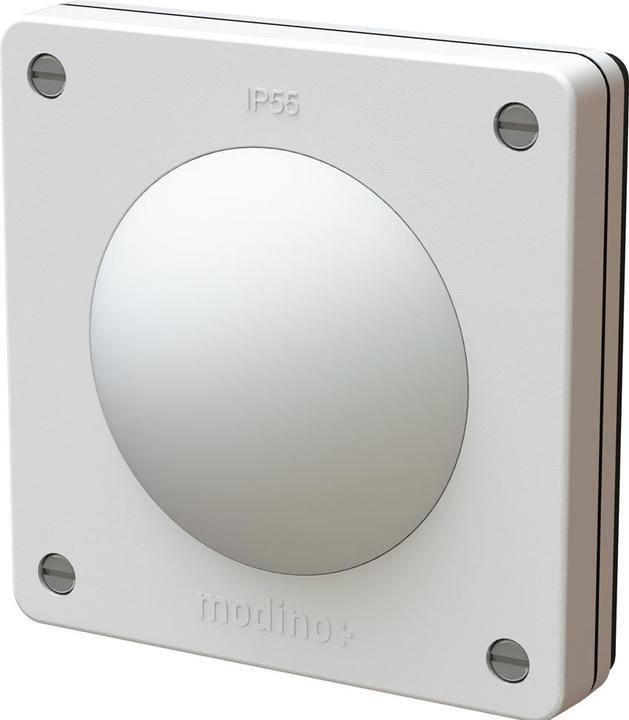

Max Hauri exo pressure switch scheme 3 IP55
Product details

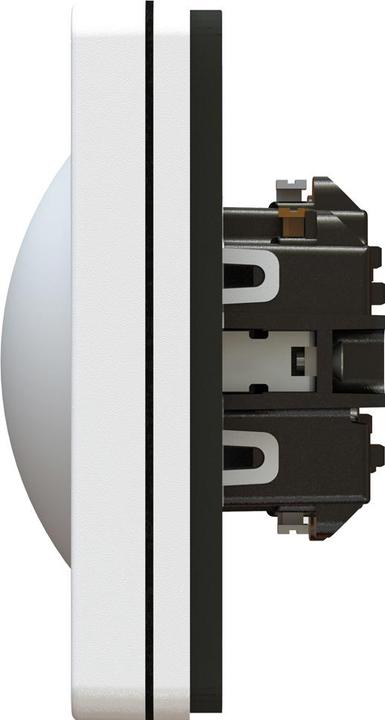

Pressure switch Schema 3 / Size 1x1 / Design: Flush-mounted / Current: 10A / Voltage: 250V / Max LED load: 100W / Additional function: with terminal blocks / Installation height: 31mm / Installation depth: 24mm / Color: white / IP protection class: IP55 / modino exo

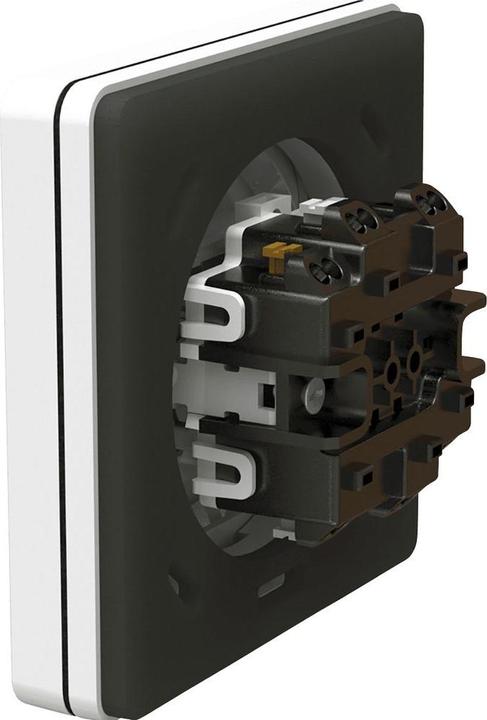

This Schema 3 pressure switch is mounted in a device box in the wall. It allows for switching on and off from one or two locations. Thanks to the terminal blocks, the connection is quick and easy.
The IP55 protection class provides complete dust and touch protection (IP5X) as well as protection against water jets (IPX5) for the assembled device. This protection is ensured when the IP55 plug is inserted and when the hinged cover is closed. With its IP55 rating, it also meets all requirements of the standard SN 441011.
The modino exo switch and socket program guarantees durability and Swiss design. It is the right solution for harsh environments in buildings, in industry, in public facilities, and in recreational areas. The antibacterial surface reduces the risk of infection from frequent contact, for example in public spaces.
