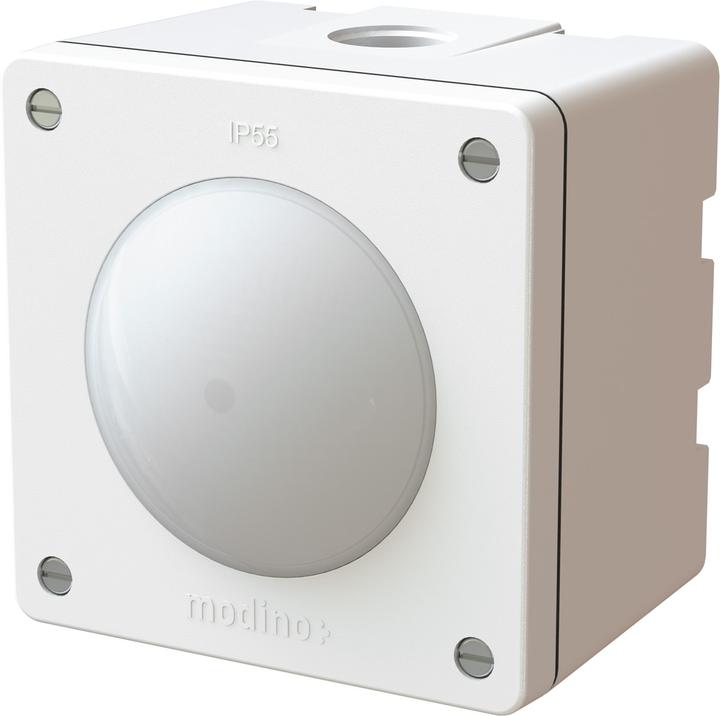

Max Hauri exo pressure switch scheme 3 illuminated IP55

Pressure switch Schema 3 illuminated with white LED / Size: 1x1 / Design: Surface-mounted / Current: 10A / Voltage: 250V / Max LED load: 100W / Additional function: Front lens, with terminal blocks / Installation height: 75mm / Color: white / IP protection class: IP55 / modino exo

This Schema 3 pressure switch is directly mounted on a wall. A M20 conduit entry on the top and two on the bottom allow for the use of cable glands for proper wiring. It enables switching on and off from one or two locations. Thanks to the terminal blocks, the connection is quick and easy. The white LED lighting can be used either as an operating indicator or as continuous lighting for easy location in the dark.

The protection class IP55 includes complete dust and touch protection (IP5X) as well as protection against water jets (IPX5) for the assembled device. This protection is ensured with the IP55 plug inserted and with the hinged cover closed. With its IP55 rating, it also meets all requirements of the standard SN 441011.

The modino exo switch and socket program stands for guaranteed durability and Swiss design. It is the right solution for harsh environments in buildings, in industry, in public facilities, and in leisure areas. The antibacterial surface reduces the risk of infection from frequent contact, for example, in public spaces.
