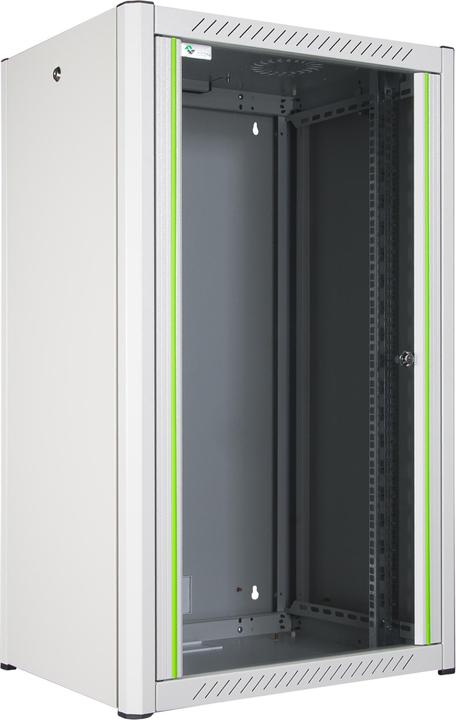

Logon RWP20U56WH Wall rack 20U Wit rack

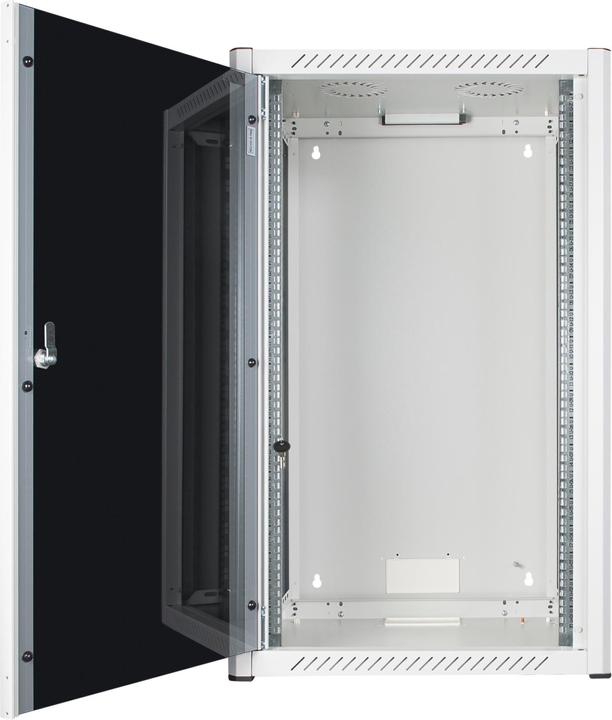

Colored strips located at the sides of the 4mm, antistatic, tempered, smoothed glass door, having an extruded aluminum frame and high fracture resistance, present a decorative view. In free-standing type applications, they may be used with optional pinion feet or caster groups.

By attaching a ventilation module with a maximum of 2 fans (optional) to the ventilation hole at the upper chassis of the cabinet, active ventilation is achieved. If no fan module is attached, these ventilation holes enable air circulation inside the cabinet and the discharging of hot air through passive ventilation.

The side doors are detachable.

The standard cabinet is delivered with 1 set and 2 device installation rails mounted. Device installation rails allow for depth adjustments of the devices to be applied in the cabinet.

With 145mm x 70mm cable inlet holes at the upper, lower, and rear door of the cabinet, it provides cable entry from 3 directions, facilitating installation.

Thanks to the rubber-edged cable entry module, movable for 0-50 mm and equipped with a sliding compression system, incoming cables are compressed safely while minimizing dust inside to the maximum levels.
