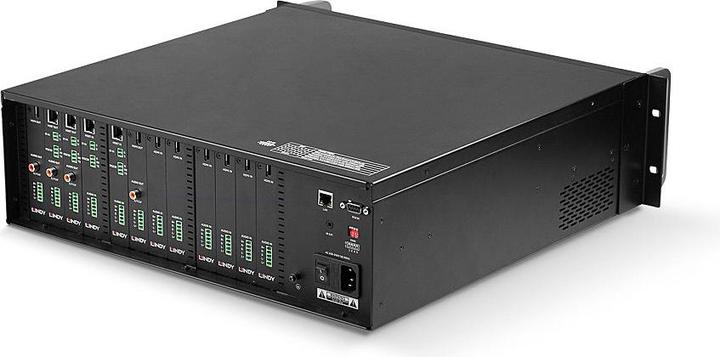

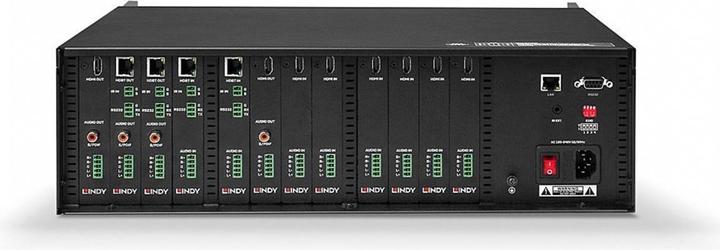

Lindy 12 Slot Seamless Modular Matrix Chassis

The customizable HDMI and HDBaseT boards, available in configurations such as 1x11, 6x6, and 8x4, can be tailored to meet the needs of any installation, whether in education, hospitality, corporate, or public sectors.

Resolutions up to 4K at 60Hz 4:4:4 8bit over HDMI provide exceptional image quality and clarity. This matrix is ideal for stunning digital signage in retail or transportation hubs, as well as multi-display installations in sports bars and clubs. Each board supports audio embedding or de-embedding, depending on the board used, for connecting external audio source devices or separate speakers and amplifiers.

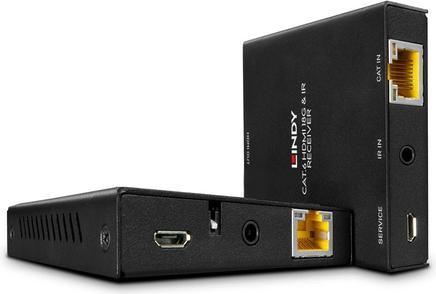

HDBaseT boards can be installed as input to control and decentralize source devices, or, when combined with other Lindy HDBaseT devices, as output to amplify 4K at 60Hz 4:2:0 matrix signals up to 100 meters over Cat.X cable.

The matrix also offers professional and simple control options for switching between connections without delay, with downtime under 0.1ms, ensuring no visible interruption to the viewer. This is ideal for mission-critical applications where uninterrupted delivery and switching between content is essential, or at events where sports fans want to watch multiple games simultaneously without missing a scene.

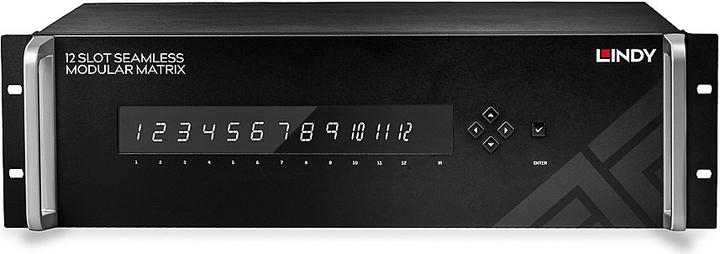

Infrared and RS232 provide bi-directional control at the matrix or remotely via HDBaseT, allowing easy integration with pre-installed control systems. The integrated WebGUI allows for easy control over matrix switching, resolution scaling, audio settings, or EDID function. Buttons and a front panel LCD display also provide easy manual control. Professional EDID management via WebGUI or the DIP switch guarantees full compatibility with the connected displays.

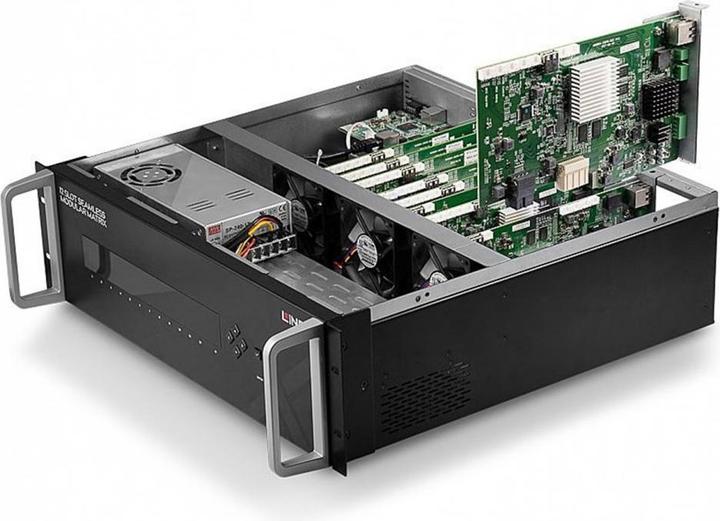

This is only the enclosure; input and output modules must be purchased separately. These can be customized to meet the requirements of the installation.
