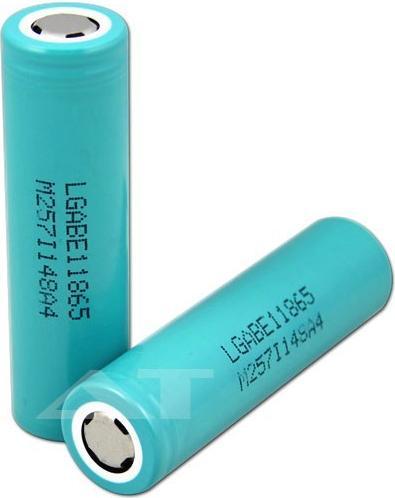

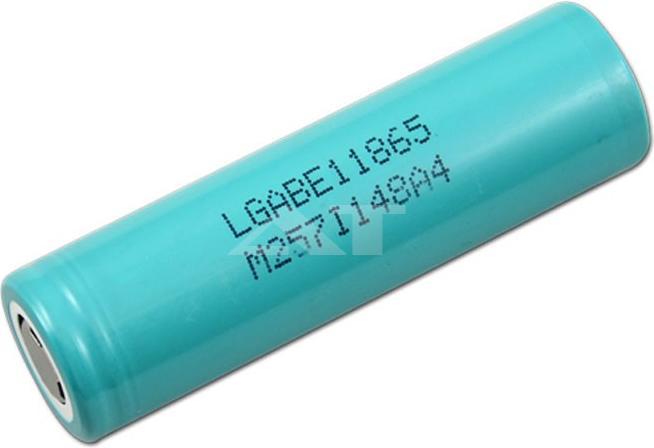

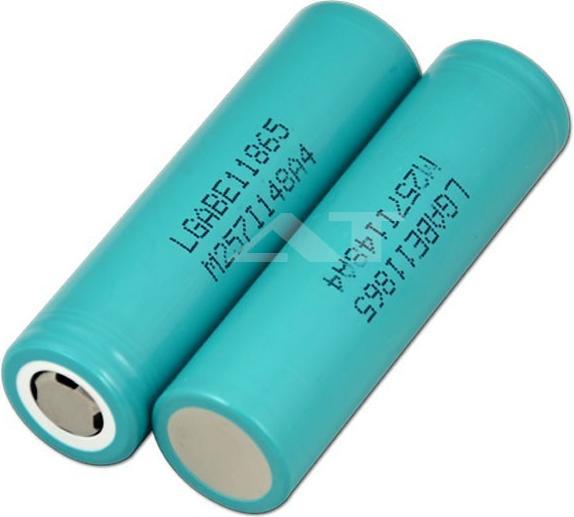

LG ICR18650E1 - 3200mAh 3.6V - 3.8V Lithium Battery (Unprotected)
1 pcs., 18650, 3200 mAhSupplied by
Free shipping starting at 50.–
Designed for industrial, LED, and mobile applications. Particularly suitable for laptops and flashlights. LG ICR18650E1 lithium battery, unprotected. Type: Capacity (mAh) 3200 mAh, min. capacity (mAh) 3100 mAh, nominal voltage (Volt) 3.75 V, charge termination voltage (Volt) 4.2 V - 4.35 V ± 0.05 V, discharge termination voltage (Volt) 2.75 V, max. discharge current 1.5 C = 4650 mA, chemical composition: LiNiCoAlO2, protection circuit: no, positive terminal (design): flat (Flat Top), diameter (mm) 18.35 mm ± 0.05 mm, height (mm) 64.9 mm ± 0.05 mm, weight (g) 49 g ± 0.01 g.
Safety notes: Lithium cells should only be operated with protective electronics! Please note that lithium cells may only be used by qualified personnel. Improper handling or short circuits can lead to fire or explosion.
Additional features: Lithium-ion batteries are thermally stable and do not suffer from memory effect. They operate on the basis of lithium and are characterized by a high energy density.
Technical data for "LG ICR18650E1 - 3200 mAh 3.6 V - 3.8 V Lithium Battery (unprotected)": Normal charge current 1550 mA, charging time at 1550 mA 3 h, fast charge current 2710 mA, charging time at 2710 mA 2.5 h, constant discharge current (Amperes) 620 mA, operating temperature charging 0 °C - 45 °C, operating temperature discharging -20 °C - 60 °C.
Notes: Charging lithium-ion batteries requires a special charger that charges the batteries according to a specific charging method (CCCV = constant current, constant voltage). The batteries must not be charged above a voltage of 4.2 volts, as this poses a risk of fire and explosion. It is advantageous to charge the batteries only up to about 4.1 volts, as this significantly increases the lifespan or number of charge cycles (potentially up to doubling).
Items per sales unit | 1 pcs. |
Battery type | Li-ion |
Voltage | 3.70 V |
Item number | 39074424 |
Battery size | 18650 |
Voltage | 3.70 V |
Battery type | Li-ion |
Battery capacity | 3200 mAh |
Rechargeable | Rechargeable |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer LG fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 pcs. |
Height | 64.90 mm |
Diameter | 18.35 mm |
Weight | 49 g |
Medical device class | Not a medical device |
Ingredients | Designed for industrial, LED and mobile applications. Especially suitable for laptops and torches.LG ICR18650E1 Lithium battery unprotectedType. Capacity (mAh)3200mAhMin. capacity (mAh)3100mAhNominal voltage (volts)3.75VCharge end voltage (volts)4.2V - 4.35V ± 0.05VEntCharge end voltage (volts)2.75Vmax. Current output1.5C = 4650mAChemical additivesLiNiCoAlO2protective circuitnonePlus pole (structure)flat (Flat Top)Diameter (mm)18.35 mm ± 0.05 mmHeight (mm)64.9 mm ± 0.05 mmWeight (g)49 g ± 0.01 gCharging methodCC-CVData sheetSafety instructions:Lithium cells may only be operated with protective electronics!Please note that lithium cells may only be used by qualified personnel.Incorrect handling or short-circuiting can lead to fire or explosion.Other features:Lithium-ion batteries are thermally stable and are not subject to memory effect.They work on the basis of lithium and are characterised by a high energy density.Technical data for "LG ICR18650E1 - 3200mAh 3.6V - 3.8V Lithium battery (unprotected) "Charging current normal1550mAhDuration of charge at1550mA3hFast charge current2710mA2.5hConstant discharge current (amps)620mAOperating temperature charging0°C - 45°COperating temperature discharging-20°C - 60°CNotes:Charging lithium-ion batteries requires a special charger that charges the batteries according to a special charging procedure. (CCCV = constant current, constant voltage.) The batteries must not be charged above a voltage of 4.2 volts, otherwise there is a risk of fire and explosion. It is advantageous to charge the batteries only up to approx. 4.1 volts, as this significantly increases the service life or the number of charging cycles (possibly up to double). Only lithium ion chargers may be used for charging. However, the cheap chargers sometimes have the disadvantage that they do not switch off safely at the end of the charging process, but continue to charge the batteries with a small charging current, which can be dangerous.Furthermore, rechargeable batteries and batteries do not belong in the household waste! Please dispose of them as prescribed by law in the municipal collection points or in the [usually green] containers provided by retailers. |
