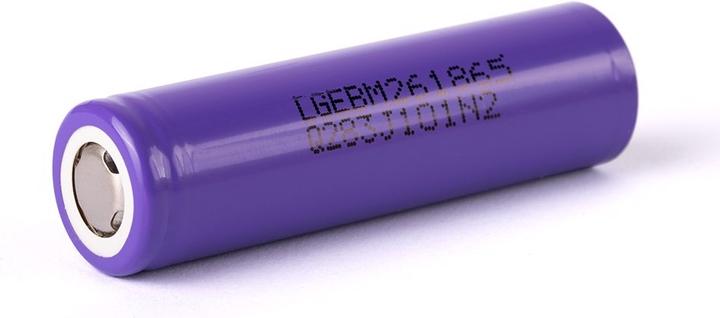

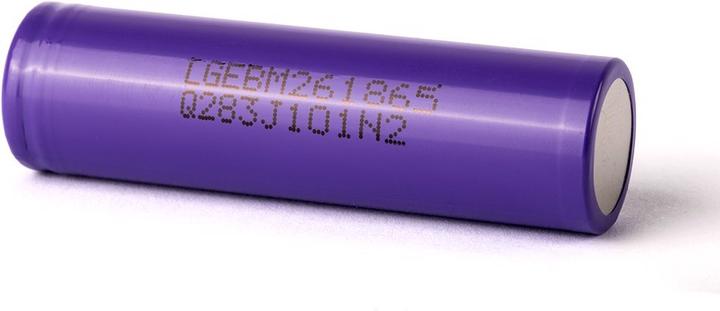

LG Battery INR18650-M26

Developed for the areas of industry, e-bikes, LEDs, model making, and mobile applications, the INR18650-M26 is a typical e-bike cell with a maximum discharge current of 10A, making it perfectly suitable for E-MTB and E-Scooter use.

Specifications:

• Capacity: 2600mAh
• Minimum capacity: 2500mAh
• Nominal voltage: 3.6V - 3.7V
• Discharge voltage: 4.20V ± 0.05V
• Max discharge current: 10A
• End discharge voltage: 2.75V
• Protection: None
• Plus pole structure: Flat top
• Composition: LiNiCoAlO2
• Diameter: 18.25 mm ± 0.2 mm
• Height: 64.85 mm ± 0.2 mm
• Weight: 48 g ± 1 g
• Charge method: CC-CV

Safety Instructions: Lithium cells may only be operated with protective electronics. Please note that lithium cells may only be used by qualified personnel. Incorrect handling or short-circuiting can lead to fire or explosion.

Other features: Lithium-ion batteries are thermally stable and are not subject to memory effect. They work on the basis of lithium and are characterized by a high energy density.

Technical data:

• Charging current (normal): 1000mAh
• Charge time at 1000mAh: 3h
• Charging current (fast): 2500mAh
• Charge time at 2500mAh: 2h
• Operating temperature (charging): 0 °C - 45 °C
• Operating temperature (discharging): -20 °C - 60 °C

Notes: For charging lithium-ion batteries, a special charger is required, which charges the batteries according to a special charging procedure (CCCV = constant current, constant voltage).
