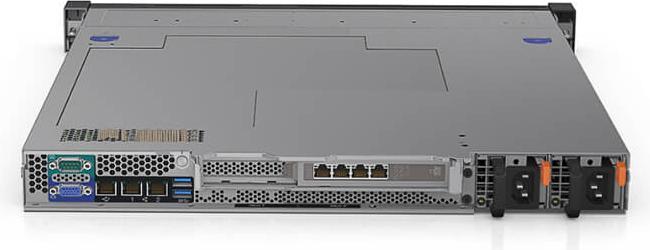

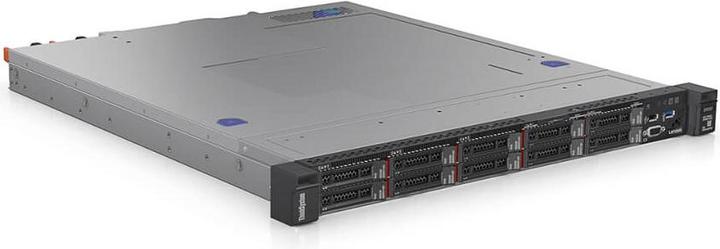

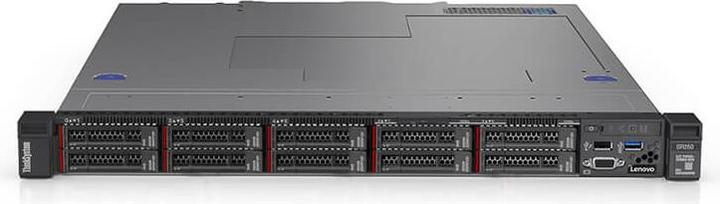

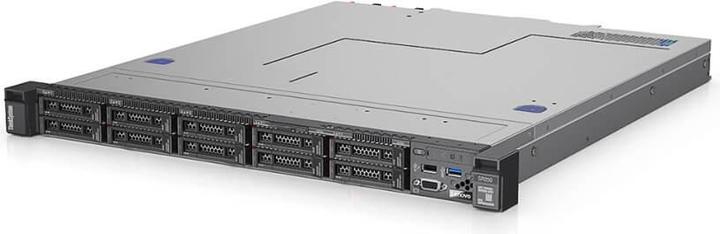

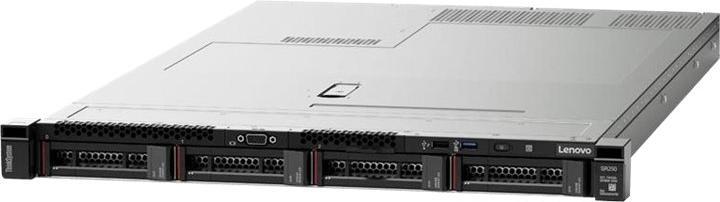

Lenovo ThinkSystem SR250 7Y51
Intel Xeon E-2224, 16 GB, Rack ServerProduct details
The Lenovo ThinkSystem SR250 7Y51 is a compact rack server designed for businesses that need an efficient and powerful solution for hybrid cloud applications. With a 1U form factor, this server offers high density and allows for easy integration into existing rack environments. Equipped with an Intel Xeon E-2224 processor with four cores and a base clock speed of 3.4 GHz, the SR250 delivers solid performance for various applications. The server supports up to 8 hard drives and enables hot-swap functionality, making maintenance and drive replacement during operation easier. With 16 GB of pre-installed RAM and the capability to expand up to 24 TB of storage capacity, the SR250 is flexible and adaptable to the growing demands of businesses. The integrated Matrox G200e graphics card and Broadcom Ethernet controller ensure reliable network connectivity and graphics performance.
- Compact 1U rack server for efficient space utilization
- Intel Xeon E-2224 processor with 4 cores and turbo clock speed of up to 4.6 GHz
- Supports up to 8 hot-swappable hard drives for easy maintenance
- Maximum storage capacity of 24 TB for growing data requirements
- ECC RAM for enhanced data security and system stability.
Number of rack units | 1 U |
Processor family | Xeon E |
Processor type | Intel Xeon E-2224 |
Max. number of hard disks | 8 |
Number of processors | 1 x |
RAM | 16 GB |
Operating system | No operating system |
Item number | 21166506 |
Design | Rack Server |
Number of rack units | 1 U |
Processor family | Xeon E |
Processor type | Intel Xeon E-2224 |
Number of processors | 1 x |
Clock frequency | 3.40 GHz |
Number of threads | 1 |
Number of processor cores | 4 -Core |
Max. turbo clock rate | 4.60 GHz |
Max. TDP | 450 W |
L3 Cache | 8 MB |
Chipset | Intel C246 |
Memory type | DDR4-RAM |
Max. memory slots | 4 |
Memory configuration | 1 x 16GB |
RAM | 16 GB |
Max. RAM | 128 GB |
RAM speed | 2666 MHz |
RAM error correction | ECC |
RAM buffer | Error Correcting Code |
RAID configuration | 0, 1, 10, 5 |
Possible raid configuration | 0, 1, 10, 5 |
Mass storage controller type | SATA III |
Max. number of hard disks | 8 |
Storage capacity | 24000 GB |
Form factor | 2.5" |
Interface | SATA |
Hard disk additional functions | Hot swapping |
Expansion slot | PCI Express x4 (3x), PCI Express x8 (3x) |
USB ports | USB-A, USB-B |
Exact USB ports | USB-A 3.1 Gen 1 (2x), USB-B 2.0 (1x) |
Data ports | PS/2 (1x) |
Connectivity | Ethernet |
Network connections | RJ45 Gigabit Ethernet (2x) |
Ethernet controller | Broadcom BCM5720 |
Ethernet controller brand | Broadcom |
Max. port speed | 2500 Mbit/s |
Graphics card model | Matrox G200e |
Graphics chip (GPU) | Matrox |
Dedicated graphics memory | 0.02 GB |
Hardware interface | Ethernet |
Video connections | VGA |
Optical drive type | No drive |
Operating system | No operating system |
Processor design | 64-bit |
Number of power supply units | 2 x |
Power | 450 W |
input voltage | 230 V |
Max. number of power supply units | 2 |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Length | 498 mm |
Width | 434 mm |
Height | 43 mm |
Weight | 9.10 kg |
