Product details

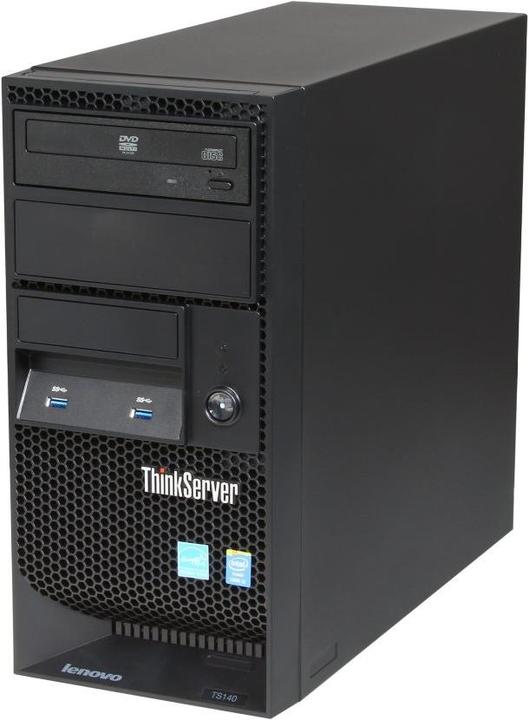

The ThinkServer TS140 is a powerful tower server designed for small to medium-sized businesses. Equipped with an Intel Xeon E3-1226 v3 processor, it provides a solid foundation for various applications and tasks. With a maximum memory capacity of 32 gigabytes of RAM and support for up to four hard drives, the TS140 allows for a flexible and scalable storage solution. The server is ideal for virtualization, database applications, and other business-critical tasks that require reliable performance. Additionally, the TS140 offers a variety of expansion options through PCI Express slots, making it adaptable to future needs. The integrated ECC RAM technology enhances data security and system stability, while RAID configurations provide additional flexibility in data storage. The ThinkServer TS140 is thus an excellent choice for companies seeking a cost-effective and powerful server solution.
- Intel Xeon E3-1226 v3 processor with 4 cores and 4 threads
- Maximum RAM capacity of 32 GB with ECC support
- Support for up to 4 hard drives for expandable storage
- Variety of PCI Express expansion slots for customization
- RAID configurations for improved data security and performance.
Processor family | Xeon E3 |
Processor type | Intel Xeon E3-1226 v3 |
Max. number of hard disks | 4 |
Number of processors | 1 x |
RAM | 4 GB |
Operating system | No operating system |
Item number | 4236469 |
Design | Tower Server |
Processor family | Xeon E3 |
Processor type | Intel Xeon E3-1226 v3 |
Number of processors | 1 x |
Number of processor sockets | 1 x |
Clock frequency | 3.30 GHz |
Number of threads | 4 |
Number of processor cores | 4 -Core |
Max. turbo clock rate | 3.70 GHz |
Max. TDP | 84 W |
L3 Cache | 8 MB |
Socket | LGA 1150 |
Chipset | Intel C226 |
Memory type | DDR3-RAM |
Max. memory slots | 4 |
Memory configuration | 1 x 4GB |
RAM | 4 GB |
Max. RAM | 32 GB |
RAM speed | 1600 MHz |
RAM error correction | ECC |
RAM buffer | Unbuffered |
RAID configuration | 0, 1, 10, 5 |
Possible raid configuration | 0, 1, 10, 5 |
Mass storage controller type | SATA III |
Max. number of hard disks | 4 |
Form factor | 3.5" |
Interface | SATA III |
Expansion slot | PCI Express x1 (1x), PCI Express x16 (1x) |
PCI express version (max.) | 3 |
Internal connection options | PCI Express x16 (1x), PCI Express x8 (2x) |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (2x), USB-A 3.0 (6x) |
Connectivity | Ethernet |
Network connections | RJ45 (1x) |
Max. port speed | 1000 Mbit/s |
Graphics card model | HD Graphics P4600 |
Video memory type | DDR3 |
Graphics chip (GPU) | Intel HD Graphics |
Dedicated graphics memory | 1.74 GB |
Hardware interface | PCI Express 3.0 |
Video connections | DisplayPort (1x) |
Optical drive type | DVD writer |
Operating system | No operating system |
Processor design | 32-bit, 64-bit |
Number of power supply units | 1 x |
Power | 280 W |
Max. number of power supply units | 1 |
CO₂-Emission | |
Climate contribution |
Length | 431 mm |
Width | 175 mm |
Height | 375 mm |
Weight | 13 kg |
