Lenovo Server ThinkSystem SR250 V2 7D7QA016EA Intel Xeon E-2378
Intel Xeon E-2378, 16 GB, Rack ServerProduct details
The Lenovo Server ThinkSystem SR250 V2 7D7QA016EA is a powerful rack server designed for a variety of applications in enterprise environments. Equipped with an Intel Xeon E-2378 processor, this server offers high processing power and efficiency. With a single processor socket and a maximum support of up to 128 GB of RAM, the SR250 V2 is ideal for medium to large workloads. The server supports up to eight hard drives and is equipped with a Lenovo ThinkSystem RAID 5350-8i PCIe 12Gb adapter, providing flexible and reliable data storage. Its compact design, with a height of just 1U, makes it an excellent choice for rack environments where space is limited. The server also features various USB ports and network ports to ensure easy connectivity. The use of enhanced materials and the EPEAT Bronze certification highlight Lenovo's commitment to sustainability.
- 8-core processor for high processing performance
- Maximum RAM capacity of 128 GB for demanding applications

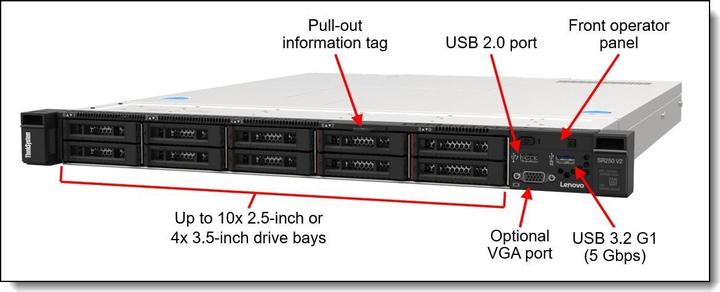

- Supports up to 8 hard drives for flexible storage solutions
- Integrated RAID controller for improved data security
- EPEAT Bronze certification for sustainable production.
Number of rack units | 1 U |
Processor family | Xeon E |
Processor type | Intel Xeon E-2378 |
Max. number of hard disks | 8 |
Number of processors | 1 x |
RAM | 16 GB |
Operating system | No operating system |
Item number | 21567256 |
Design | Rack Server |
Number of rack units | 1 U |
Processor family | Xeon E |
Processor type | Intel Xeon E-2378 |
Number of processors | 1 x |
Number of processor sockets | 1 x |
Clock frequency | 2.60 GHz |
Number of threads | 1 |
Number of processor cores | 8 -Core |
Max. turbo clock rate | 4.80 GHz |
Max. TDP | 65 W |
L3 Cache | 16 MB |
Socket | LGA 1200 |
Chipset | Intel C256 |
Memory type | DDR4-RAM |
Max. memory slots | 4 |
Memory configuration | 1 x 16GB |
RAM | 16 GB |
Max. RAM | 128 GB |
RAM speed | 3200 MHz |
RAM error correction | ECC |
RAM buffer | Error Correcting Code |
RAID configuration | JBOD |
Possible raid configuration | JBOD |
Mass storage controller type | SAS |
Max. number of hard disks | 8 |
Form factor | 2.5" |
Interface | SAS, SATA III |
Hard disk additional functions | Hot swapping |
Expansion slot | PCI Express x16 (Gen 4) (1x) |
PCI express version (max.) | 4 |
Internal connection options | S-ATA II (1x) |

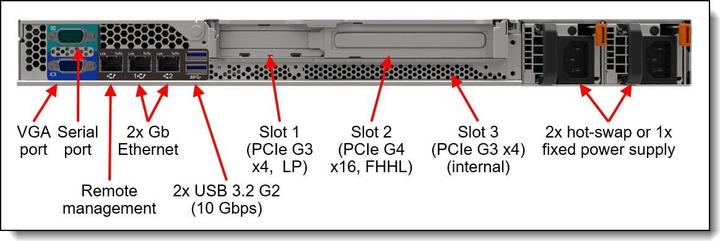

USB ports | USB-A |
Exact USB ports | USB-A 2.0 (1x), USB-A 3.2 Gen 1 (3x) |
Data ports | PS/2 (1x) |
Connectivity | Ethernet |
Network connections | RJ45 (2x) |
Ethernet controller | Broadcom BCM5720 |
Ethernet controller brand | Broadcom |
Max. port speed | 2000 Mbit/s |
Graphics card model | Matrox G200e |
Graphics chip (GPU) | Matrox |
Dedicated graphics memory | 200 GB |
Hardware interface | Ethernet |
Video connections | VGA (1x) |
Optical drive type | No drive |
Operating system | No operating system |
Number of power supply units | 1 x |
Power | 450 W |
input voltage | 240 V |
Max. number of power supply units | 2 |
Sustainability | Improved materials, Improved production |
Sustainability label | EPEAT Bronze |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Length | 498 mm |
Width | 435 mm |
Height | 43 mm |
Weight | 9.10 kg |
Length | 85 cm |
Width | 60 cm |
Height | 19 cm |
Weight | 12.68 kg |
