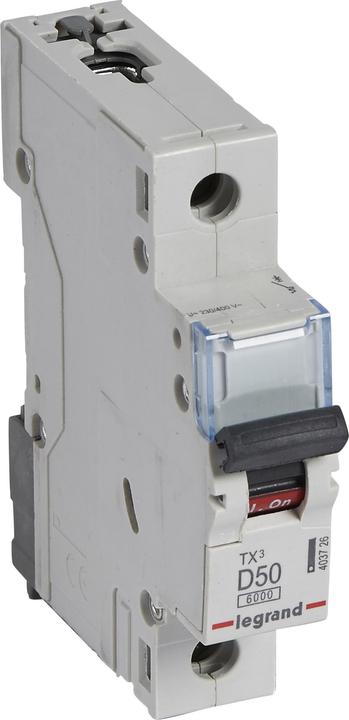

Legrand Circuit-breaker 1P D 50A 6kA AC S301 TX3 (403726)

Ratings
BrandMore from Legrand
Delivered between Wed, 12.11. and Wed, 26.11.
free shipping

Product details

The Legrand 1P D 50A 6kA AC S301 TX3 circuit breaker is a reliable and safe device designed for use in electrical installations. It complies with the standards EN 60898-1, VDE 0641-11, and EN 60947-2 and features a D-characteristic, which is particularly suitable for applications with high inrush currents, such as in welding transformers. With a rated current of 50 A and a rated breaking capacity of 6 kA, this circuit breaker ensures effective protection of circuits. Installation is straightforward on a DIN rail, and the clear switching position indicator along with the labeling window allows for user-friendly handling. The plug-in protection provides additional safety when inserting the conductor into the terminal. Therefore, the circuit breaker is an ideal choice for circuit protection in demanding applications.

  • Energy limiting class 3 for additional protection
  • Clear switching position indicator in red/green
  • Quick mounting on DIN rail for easy installation
  • Plug-in protection for safe insertion of the conductor
  • Mounting of auxiliary devices possible.

Key specifications

Circuit breaker type
Circuit breaker
Length
77.80 mm
Width
17.80 mm
number of poles
1
Mounting type
Top-hat rail
Item number
33599050

General information

Manufacturer
Legrand
Category
Residual-current device
Manufacturer no.
403726
Release date
17.5.2023

Circuit Breaker Features

Circuit breaker type
Circuit breaker
Mounting type
Top-hat rail
Mounting type
Engagement
number of poles
1
Tripping characteristic
D
Rated voltage
230 V
voltage type
AC
Rated insulation voltage Ui
500 V
Protection type (IP code)
IP20

Origin

Country of origin
France

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
77.80 mm
Width
17.80 mm
Height
88 mm
