Legrand Circuit-breaker 1P D 1A 6kA AC S301 TX3 (403713)

Ratings
BrandMore from Legrand
Delivered between Wed, 12.11. and Wed, 26.11.
Free shipping starting at 50.–

Product details

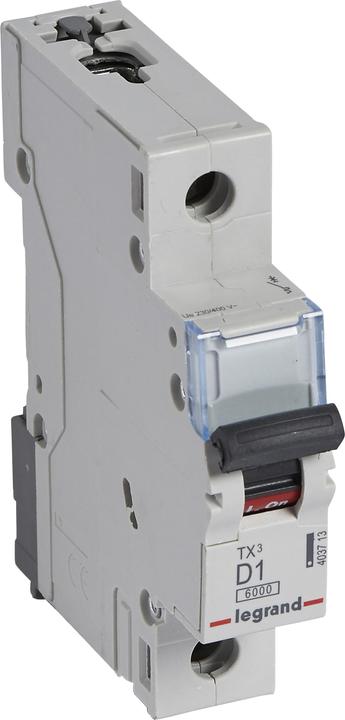

The Legrand TX3 circuit breaker is a highly advanced protective switch designed according to the standards EN 60898-1, VDE 0641-11, and EN 60947-2. With a D-characteristic and a rated current of 1 A, this single-pole switch provides reliable protection for electrical circuits in power applications that experience high inrush currents, such as welding transformers. The switch is rated for a voltage of 230/400 VAC and a frequency of 50/60 Hz. It features a limiting class 3 for energy and can be easily mounted on a DIN rail. The clear information display on the front and the distinct switching position indicator in red/green on the switch lever ensure user-friendly operation. Additionally, the labeling window allows for individual identification, while the plug-in protection ensures safe installation. The switch is also suitable for the attachment of auxiliary devices, highlighting its versatility.

  • Energy limiting class 3 for additional protection
  • Distinct switching position indicator in red/green
  • Plug-in protection for safe insertion of conductors
  • Mounting on DIN rail with snap-in quick fastening
  • Attachment of auxiliary devices possible.

Key specifications

Circuit breaker type
Circuit breaker
Length
77.80 mm
Width
17.80 mm
number of poles
1
Mounting type
Top-hat rail
Item number
33599038

General information

Manufacturer
Legrand
Category
Residual-current device
Manufacturer no.
403713
Release date
17.5.2023

Circuit Breaker Features

Circuit breaker type
Circuit breaker
Mounting type
Top-hat rail
number of poles
1
Tripping characteristic
D
Rated current
1 A
Rated voltage
230 V
voltage type
AC
Rated insulation voltage Ui
500 V
Residual current (rated differential current)
1 A
Protection type (IP code)
IP20

Origin

Country of origin
France

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
77.80 mm
Width
17.80 mm
Height
88 mm
