Legrand Circuit-breaker 1P D 40A 6kA AC S301 TX3 (403725)

Ratings
BrandMore from Legrand
Delivered between Wed, 12.11. and Wed, 26.11.
free shipping

Product details

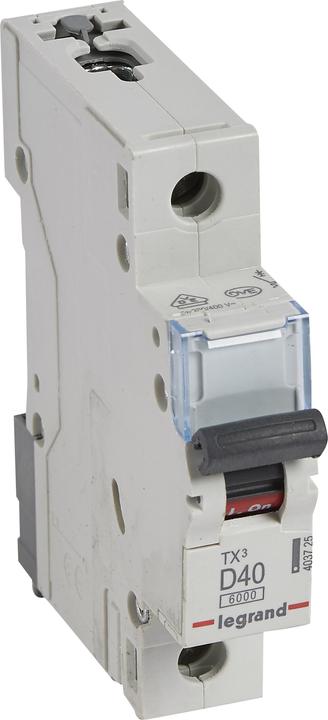

The Legrand TX3 circuit breaker is a high-quality protective switch designed according to the standards EN 60898-1, VDE 0641-11, and EN 60947-2. With a D-characteristic and a rated current of 40 A, this switch is ideal for protecting circuits with high inrush currents, such as those encountered in welding transformers. The switch offers a rated breaking capacity of 6 kA and is designed for a rated voltage of 230/400 VAC. Installation is straightforward on a DIN rail, and the clear switching position indicator along with the labeling window ensures user-friendly operation. The TX3 is also equipped with a plug-in protection feature that guarantees safe insertion of the conductor into the terminal block. These features make the circuit breaker a reliable choice for various applications in the electrical field.

  • Energy limiting class 3 for additional protection
  • Locking quick-mounting for easy installation
  • Clear switching position indicator in red/green
  • Auxiliary device mounting possible
  • Protection class IP20 for indoor use.

Key specifications

Circuit breaker type
Circuit breaker
Length
77.80 mm
Width
17.80 mm
number of poles
1
Mounting type
Top-hat rail
Item number
33599049

General information

Manufacturer
Legrand
Category
Residual-current device
Manufacturer no.
403725
Release date
17.5.2023

Circuit Breaker Features

Circuit breaker type
Circuit breaker
Mounting type
Top-hat rail
number of poles
1
Tripping characteristic
D
Rated current
40 A
Rated voltage
230 V
voltage type
AC
Rated insulation voltage Ui
500 V
Protection type (IP code)
IP20

Origin

Country of origin
France, Poland

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
77.80 mm
Width
17.80 mm
Height
88 mm
