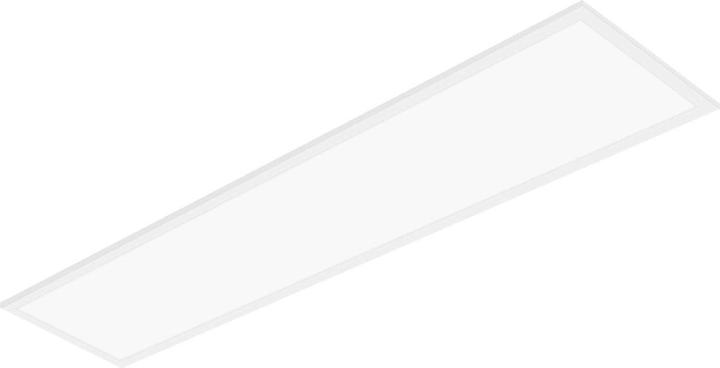

Ledvance PL CMFT 1200 P 33W 8

Rectangular insert luminaires for 1200 x 300 mm ceiling systems and DALI-2 IoT technology. Product features include an IoT-capable luminaire with DALI-2 technology, suitable for use with central battery systems in accordance with EN60598-2-22. It has a push DIM function for switching and dimming directly at the wall switch, a frame made of extruded aluminium, and a polystyrene diffuser. The 5-pole connection terminal accommodates a cable cross-section of up to 5 x 2.5 mm². The service life (L80/B10) is 70,000 hours at 25 °C.

Product benefits include suitability for VIVARES and other DALI-2 Light Management Systems, tool-free electrical connection thanks to the push-button connection terminal, and through-wiring capability with the included connection box. It offers energy savings due to high system luminous efficacy of up to 130 lm/W and high colour consistency with SDCM 3. Extended services such as power consumption monitoring and remote maintenance are possible with DALI versions. An external driver provides extended flexibility and easy installation, while low flicker light is ensured by a special electronic ballast. It is also suitable for emergency lighting.

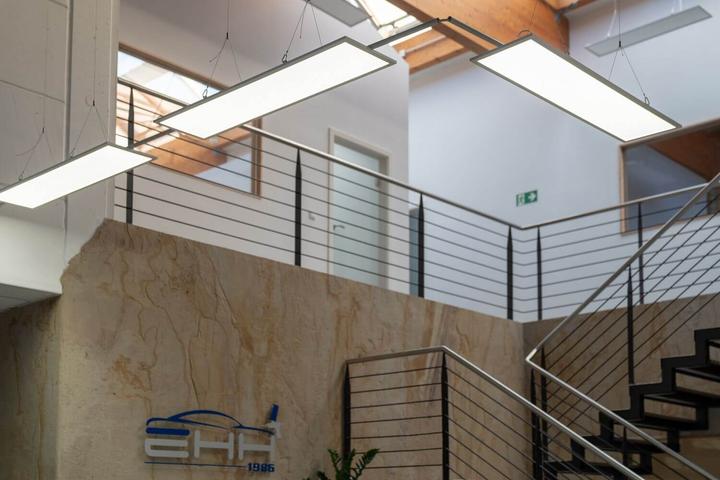

Areas of application include direct replacement for recessed luminaires with fluorescent lamps, offices, conference rooms, reception areas, entrance areas, corridors, and lifts. It is designed for recessed ceiling systems with a grid dimension of 1200 x 300 mm.

Technical features include accessories available for various installation options, a connection box with a 5-pole connection terminal, a safety cable for lights, pre-assembled safety terminals, an external ballast, and a separate DC twistlock cable extension. It is suitable for operation with an emergency conversion box.
