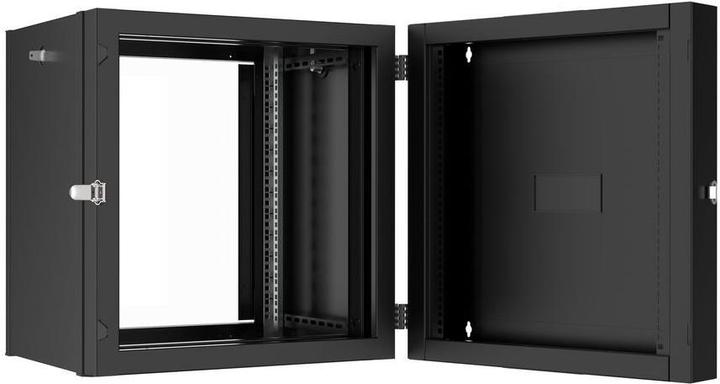

Lanview 19" 12U W=600mm D=600mm

Product dimensions:
Rack: Width x Depth x Height (mm): 600 x 450 x 639
Double-wall mounting area: Width x Depth x Height (mm): 600 x 150 x 631

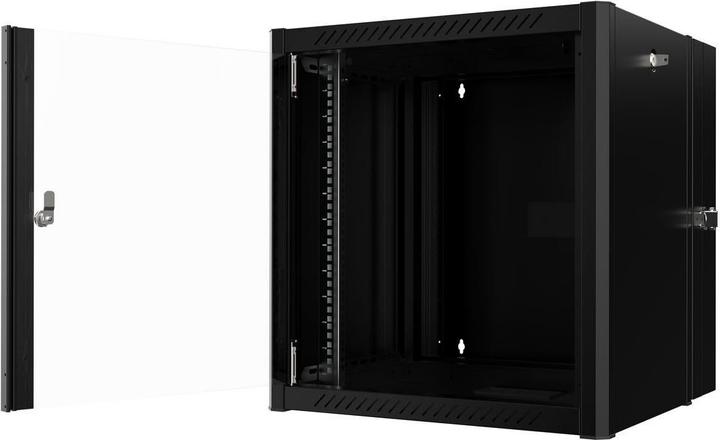

Colored stripes on the sides of the 4 mm thick antistatic, tempered glass door with an extruded aluminum frame and high break resistance provide a decorative view. The double-wall mounted rear panel allows for the installation of additional 19"-compatible devices, making it ideal for accommodating cable bundles, patch panels, and other equipment. With the cable pass-through at the back, it is perfect for routing cables. Devices that comply with the 19" installation and have a depth of 70 mm can be mounted in the double-wall mounting area.

By attaching a ventilation module with a maximum of 2 fans (optional) to the ventilation hole in the upper housing part of the cabinet, active ventilation is achieved. If no fan module is installed, these ventilation openings allow for air circulation within the cabinet and the expulsion of warm air through passive ventilation.

Since the side panels are removable, access to the cabinet is ensured from the front and sides in wall-mounted applications, as well as from all sides in freestanding applications. The standard cabinet comes with a set of 2 device mounting rails that are already mounted. The device mounting rails allow for depth adjustments for the devices to be mounted in the cabinet.

With 145 mm x 70 mm cable pass-throughs on the upper, lower, and rear doors of the cabinet, it provides cable routing in 3 directions, facilitating installation. Thanks to the rubber-edged cable pass-through module, which is adjustable from 0-50 mm and features a sliding compression system, incoming cables are securely compressed, minimizing dust ingress. This item number consists of two parts: RWP12U45BL + RWMD12UBL.
