Lanview 19" 12U W=600mm D=560mm

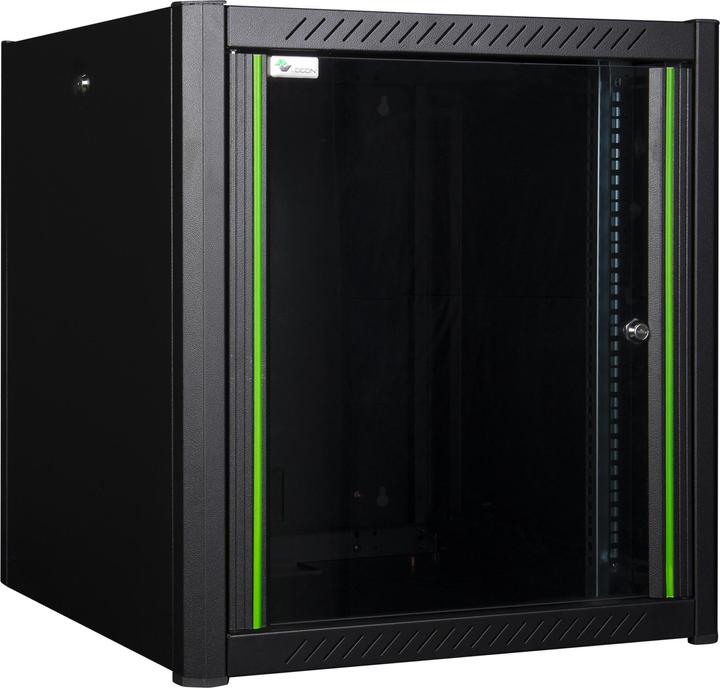

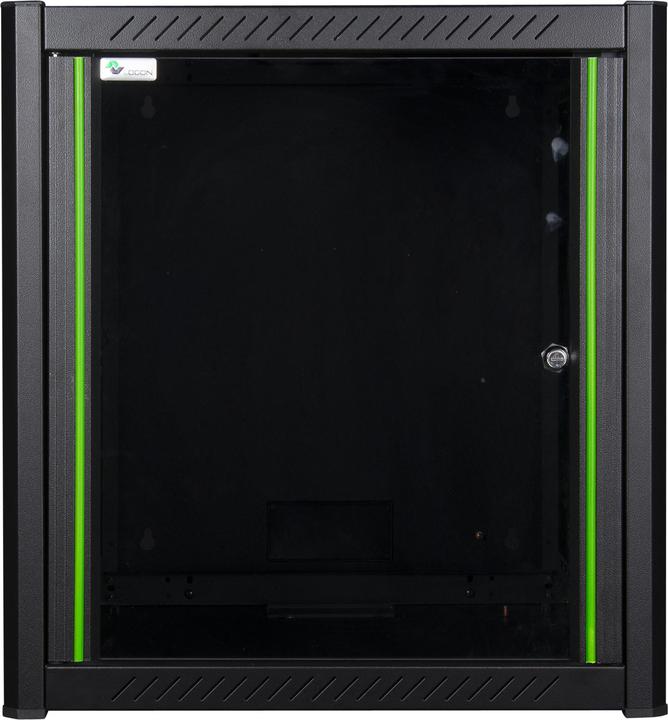

Colored stripes on the sides of the 4 mm thick antistatic tempered glass door with an extruded aluminum frame and high impact resistance provide a decorative view. For freestanding applications, they can be used with optional pin feet or a wheel set.

By attaching a ventilation module with a maximum of 2 fans (optional) to the ventilation opening in the upper housing part of the cabinet, active ventilation is achieved. If no fan module is attached, these ventilation openings allow air circulation inside the cabinet and the escape of warm air through passive ventilation.

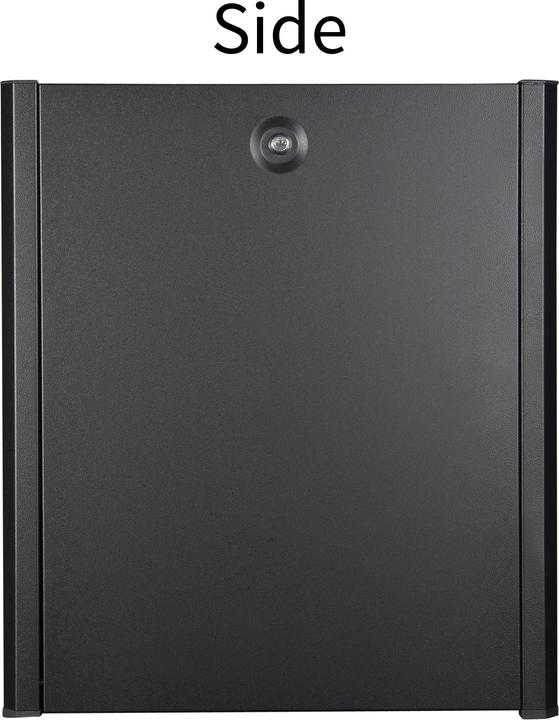

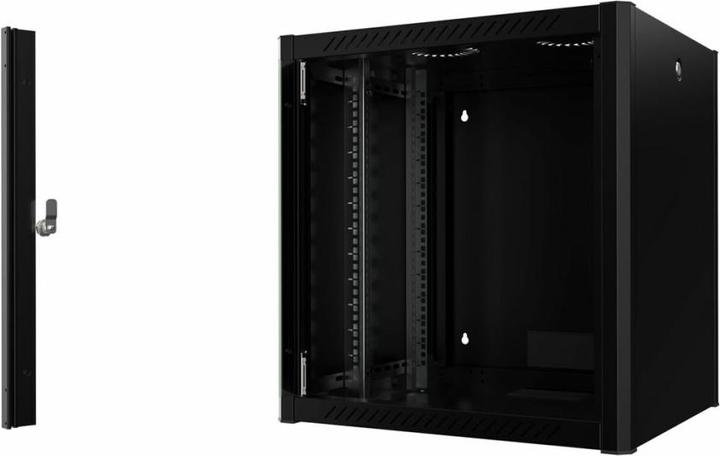

The side doors are removable.

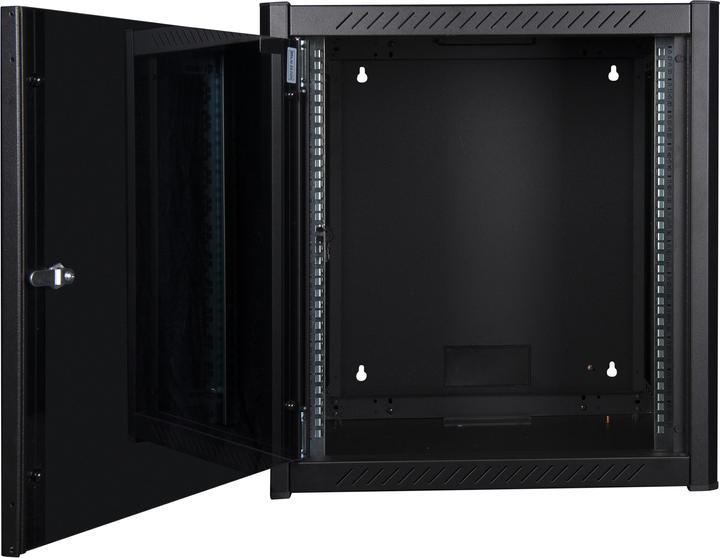

The standard cabinet comes with a set of 2 mounted device installation rails. The device installation rails allow for depth adjustments of the devices to be installed in the cabinet.

With 145 mm x 70 mm cable entry openings on the upper, lower, and rear doors of the cabinet, it provides cable access from 3 directions, facilitating installation.

Thanks to the rubber-edged cable entry module, which can move 0-50 mm and features a sliding compression system, incoming cables are securely compressed while minimizing dust ingress.
