Kunbus RevPI AIO analog

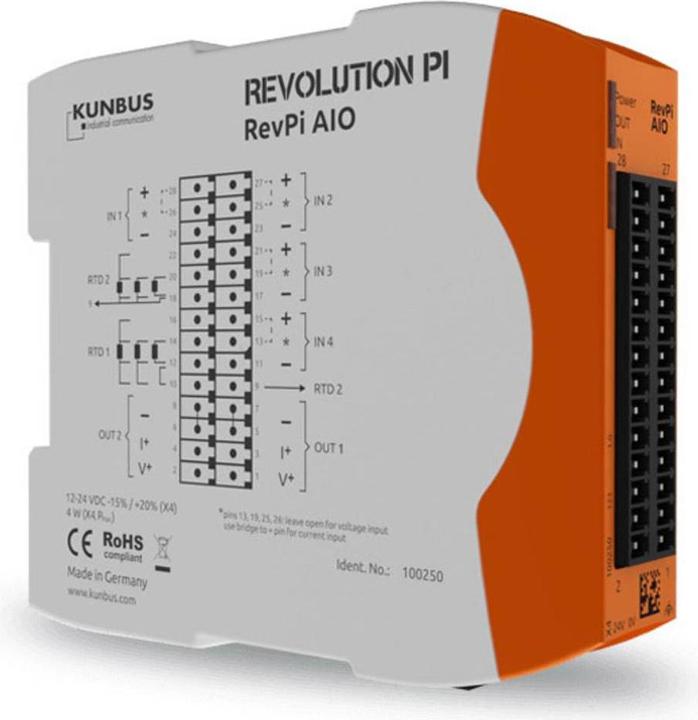

KUNBUS RevPi AIO PR100250

Manufacturer: KUNBUS
Designation: RevPi AIO
Type: PR100250
Number of analog inputs: 6
Number of analog outputs: 2
Input, current: yes
Input, voltage: yes
Input, resistance: no
Input, resistance thermometer: no
Input, thermocouple: yes
Configurable input signal: yes
Resolution of analog inputs: 24 Bit
Output, current: yes
Output, voltage: yes
Configurable output signal: yes
Resolution of analog outputs: 16 Bit
Type of electrical connection: Spring terminal connection
Suitable for safety functions: no
Associated equipment (Ex ia): no
Associated equipment (Ex ib): no
Explosion protection category for gas: none
Explosion protection category for dust: none
Width: 22.5 mm
Height: 96 mm
Depth: 110.5 mm

This analog I/O expansion module for RevPi allows for the expansion of RevPi base modules with 4 differential analog inputs, 2 analog outputs, and 2 analog temperature channels. The inputs, outputs, and RTD inputs are galvanically isolated from each other. The 4 analog inputs can be set to the following voltage or current levels: +/- 10 V, 0-10 V, 0-5 V, +/- 5 V, 0-20 mA, 0-24 mA, 4-20 mA, +/- 25 mA. The 2 analog outputs can be set to the following voltage or current levels: 0-5 V, 0-10 V, +/- 5 V, +/- 10 V, 0-5.5 V, 0-11 V, +/- 5.5 V, +/- 11 V, 4-20 mA, 0-20 mA, 0-24 mA. The 2 analog temperature channels can measure precise temperatures from -165 °C to +600 °C in 0.5 °C increments using standard Pt100 or Pt1000 temperature sensors. Both 2-, 3-, and 4-wire resistance sensors can be connected. The AIO expansion module is connected to the base module via the upper connector. Dimensions: 96x22.5x110.5 mm, EAN: 4260498390908.
