Klotz MC2000SW microfoon cable 100 metre op haspel

MC2000SW superior microphone cable features an extra thick outer jacket.

• Conductor size: 1 x 2 x 0.22 mm² (AWG 24)
• Very low capacitance: 60 pF/m (18 pF/ft)
• Highly flexible
• Extremely robust overall shield
• Color: black
• Weight: 5.70 kg
• Length: 100 m

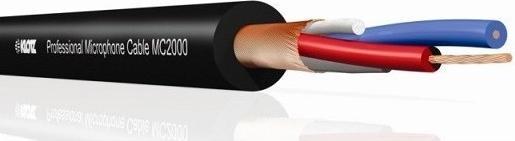

Structure:

• Conductor construction: bare stranded copper wire, 28 x 0.10 mm
• Conductor cross-section: 0.22 mm²
• Insulation: polyethylene (PE)
• Core arrangement: 2 cores + stranded cotton threads
• Shielding: bare copper spiral shield
• Outer jacket: PVC, matt
• Outer diameter: 6.5 mm

Mechanics:

• Minimum bending radius: 30 mm
• Operating temperature: -20°C to +70°C

Electrics:

• Conductor resistance: < 85 Ω/km

Capacitance:

• Core/core: 60 pF/m
• Core/shield: 110 pF/m
• Insulation resistance: > 0.1 GΩ x km

This cable meets particularly high requirements in live operation and is an excellent choice for rental applications. It combines the outstanding properties of the MY206 cable, including a 0.22 mm² conductor cross-section, spiral shield, great flexibility, and precise stranding to prevent electromagnetic interference, with an exceptionally thick PVC outer jacket. The total diameter is 6.5 mm. The cable is exceptionally easy to wind and unwind and lays cleanly and smoothly on the stage floor. It is ideally suited for self-assembly in the workshop.
