Klotz LX3-5X1K2-01.0

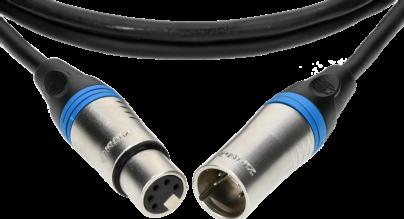

The LX3 and LX4 cables are equipped with 3-pin or 5-pin XLR connectors and transmit digital DMX lighting control signals with absolute reliability. Low capacitance and attenuation, along with a dense shielding with spiral shield, ensure interference-free signal transmission, which is crucial for digital media, even over long distances. Tightly twisted conductor pairs enhance resistance to external electromagnetic fields. The LX3/LX4 is made from our OT206Y cable, which has a characteristic impedance of 110 Ω required for digital signals. A robust PVC outer jacket with a diameter of just 6.0 mm provides mechanical stability without compromising the extreme flexibility of the cable. The LX3/LX4 also features high-quality 5-pin XLR connectors from KLOTZ or Neutrik. The LX3/LX4 is available in lengths from 1 to 15 m, delivered on header cards to retailers, ready to be hung on a display.

• Extremely flexible
• 1 x 2 x 0.22 mm² (AWG 24)
• High-quality copper core (99.95% pure ETP copper)
• AL/PET foil + tinned stranded conductor wire + tinned copper braid (coverage 85%)
• Durable lead-free PVC outer jacket.
