Product details

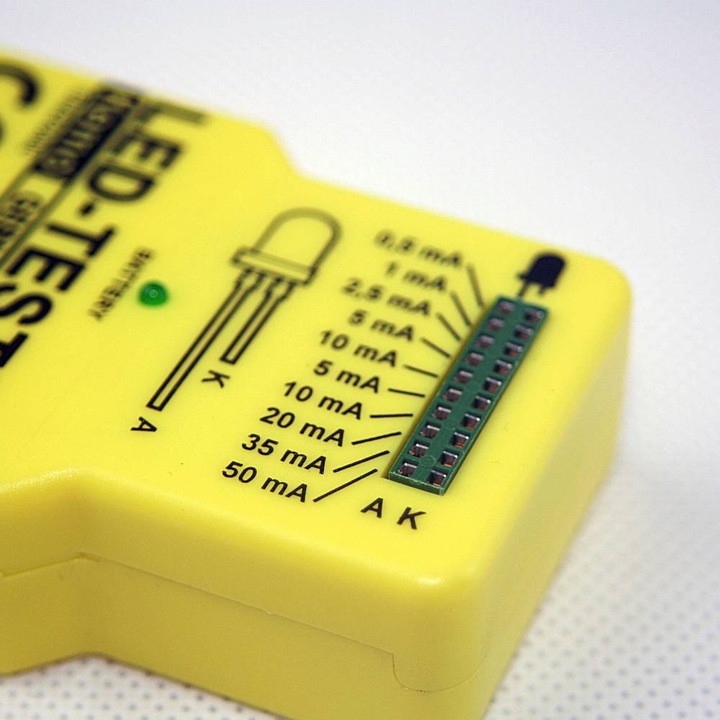

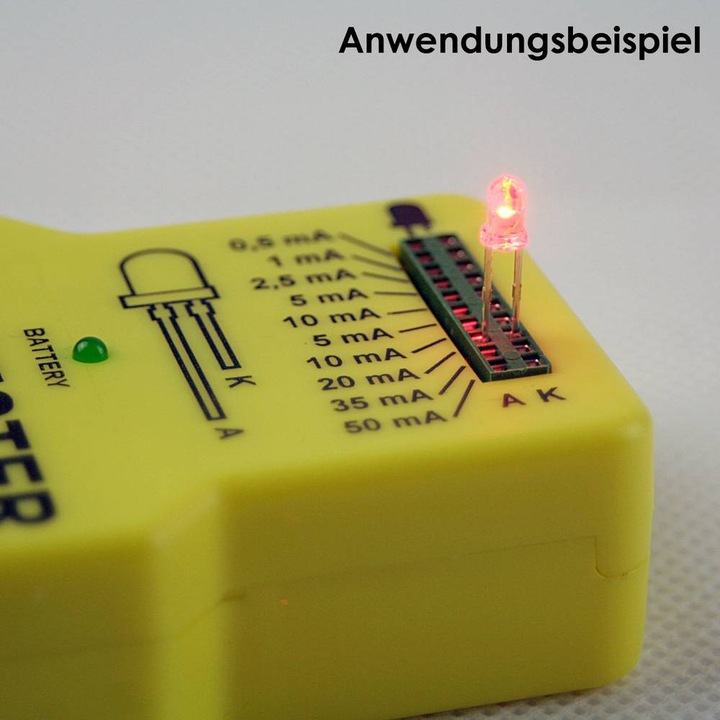

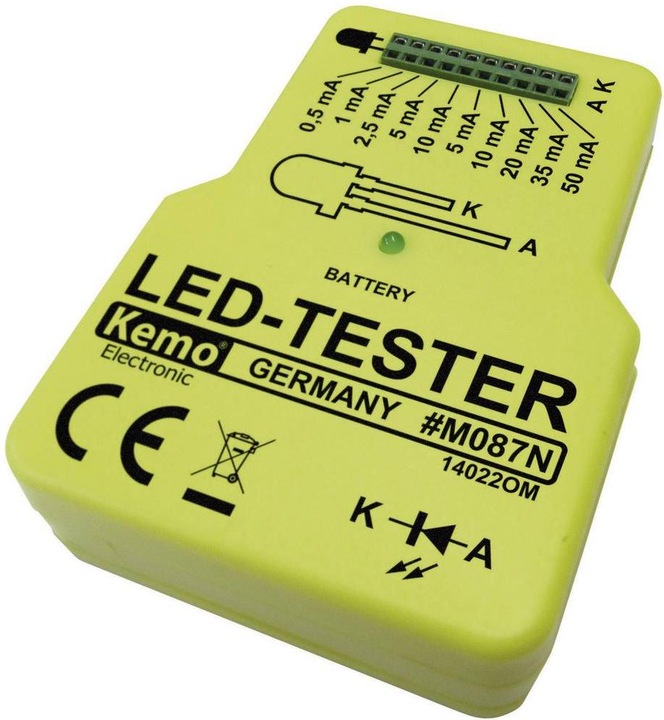

With this test module, light-emitting diodes of all types can be tested for function, brightness, colour and polarity. The LEDs can be tested with the following currents: 1 mA, 2.5 mA, 5 mA, 10 mA, 20 mA and 50 mA. Brand-new LEDs as well as desoldered LEDs with solder residues on the connection legs can be plugged into the test contacts. To select LEDs for equal brightness, 2 test sockets with equal currents (10 mA) are arranged next to each other.
Item number | 21603260 |
Manufacturer | Kemo |
Category | Development boards + Kits |
Manufacturer no. | M087N |
Release date | 3.8.2022 |
Minimum order | 2 |
Minimum order | 2 |
Target group | Adults |

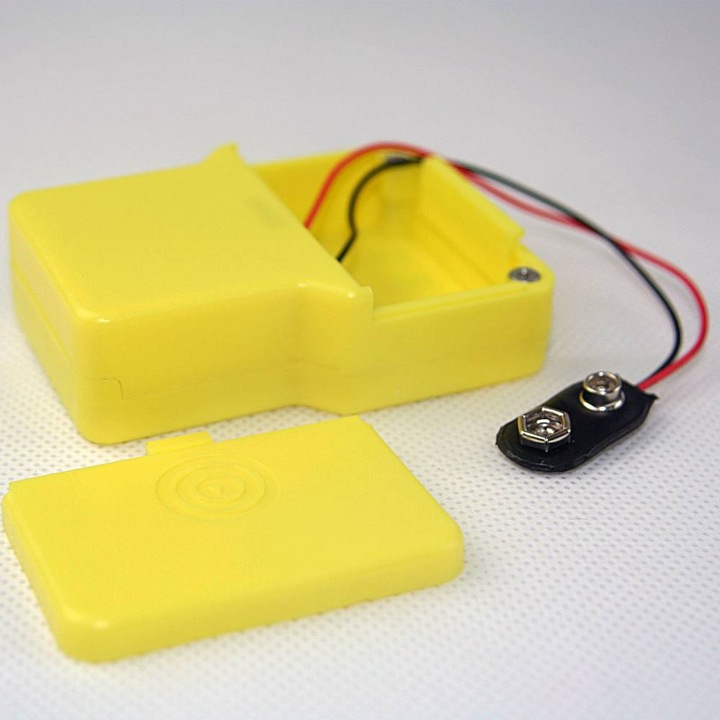

Power supply | Battery operated |
Operating voltage | 9 V |
CO₂-Emission | |
Climate contribution |
Scope of delivery | LED connection socket strip |
Length | 58 mm |
Width | 44 mm |
Height | 5 mm |
Specifications may include unverified machine translations.
