Keeppower Li-ion Akku 14500 mit 1100mAh 3,7V, 50,3x14,2mm, mit USB Lademöglichkeit

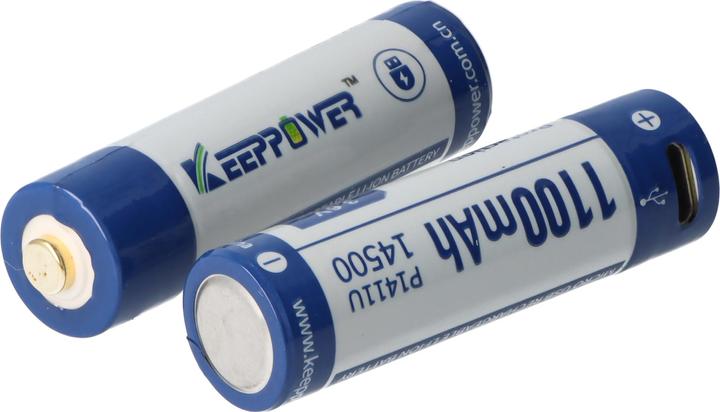

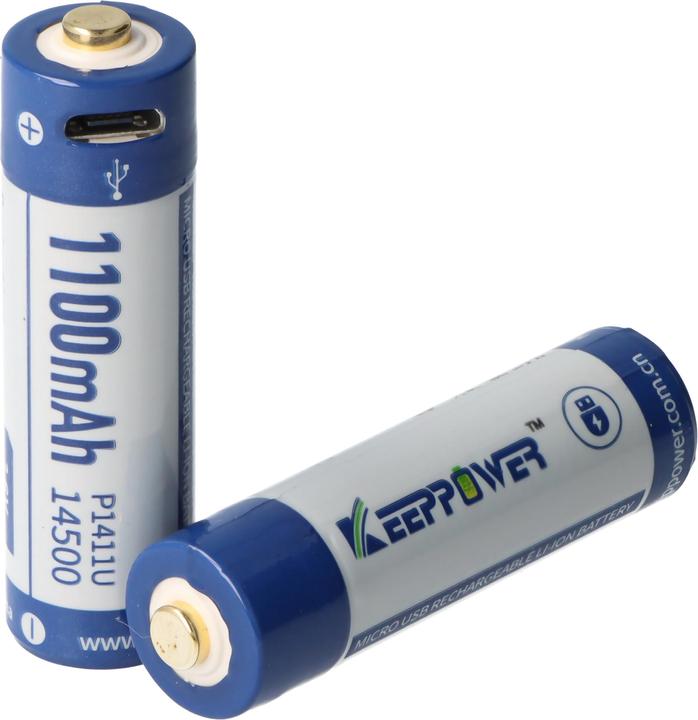

Li-ion Battery 14500 3.6V - 3.7V 1100mAh in AA (Mignon) size. The Keeppower 14500 Li-ion battery offers a capacity of 1100mAh and a voltage of 3.7V - 3.6V with USB charging capability and PCB P1411U. Thanks to state-of-the-art chemical components, the P1411U achieves the length of an AA battery despite the BMS/PCB electronics and USB charging port.

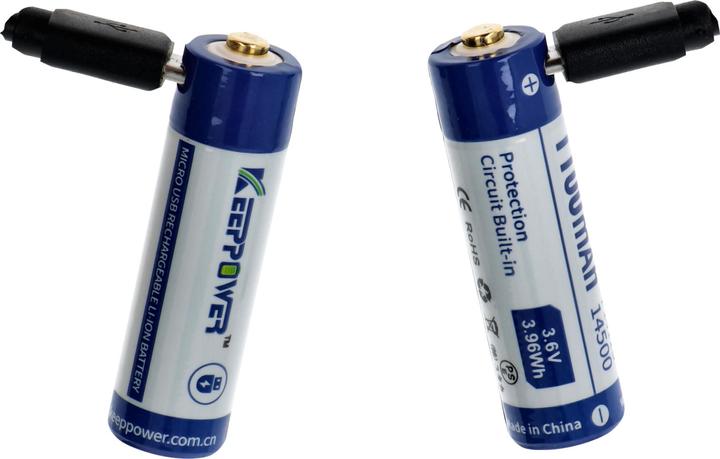

It features an integrated Micro-USB charging port and charging electronics with a charging status indicator. A built-in PTC prevents high current surges. The innovative anode design provides high temperature resistance, and a pressure relief valve is activated in case of rapid temperature increase. The IC protection/PCB offers protection against short circuits, overcharging, and deep discharge.

Technical specifications:

• Capacity: 1100mAh
• Minimum capacity: 1000mAh at 0.2C
• Nominal voltage: 3.6V - 3.7V
• Charge termination voltage: 4.2V ± 0.05
• Standard charging current: 0.5A (500mA)
• Input USB: 5V micro USB
• Charging current regulation: via BMS
• Standard discharge current: 550mA
• Max. discharge current: 2A
• Discharge termination voltage: 2.50V
• Protection: PCB (integrated) up to 5A
• Positive terminal: raised (Button Top)
• Diameter: 14.2 mm ± 0.20 mm
• Height: 50.3 mm ± 0.30 mm
• Weight: 19 g ± 1 g
• Charging method: CC-CV
• Certification: CE, RoHS

Safety instructions: Please note that lithium cells should only be used by qualified personnel. Improper handling or short circuits can lead to fire or explosion.

Additional features: Lithium-ion batteries are thermally stable and do not suffer from memory effect. They operate on the basis of lithium and are characterized by high energy density. No charger is required to charge this battery. The P1411U has an integrated Micro-USB port, allowing the battery to be charged directly from a compatible USB power source.

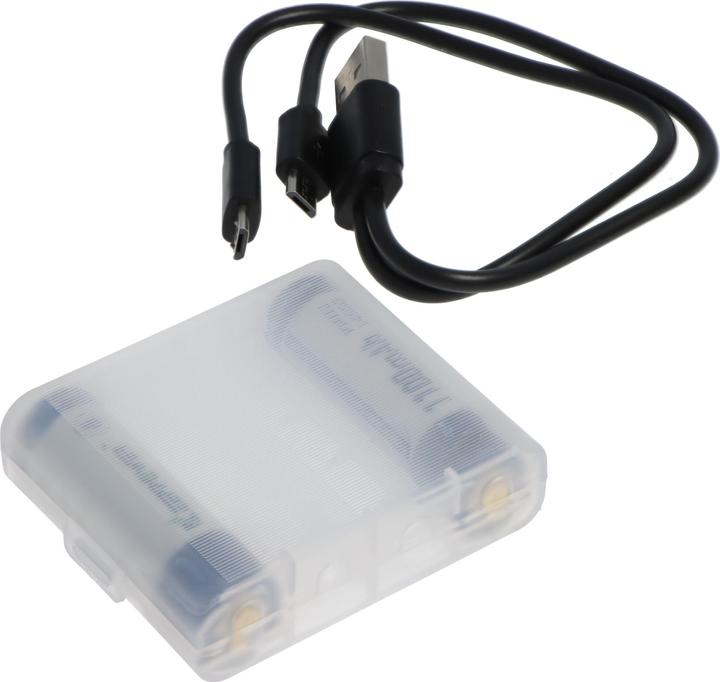

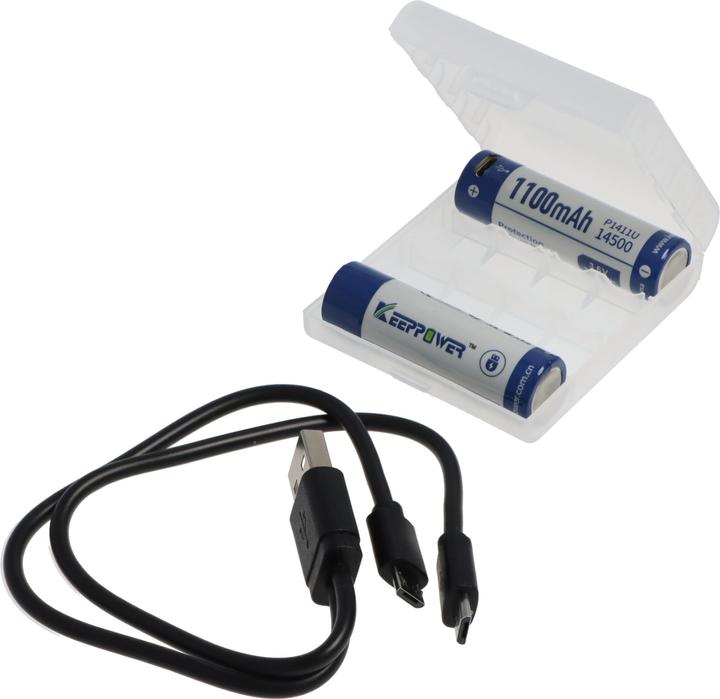

Delivery includes: 1 x 14500 Keeppower battery with USB charging capability. When ordered in pairs (two pieces), the batteries are delivered with a battery storage box and USB cable for two batteries.
