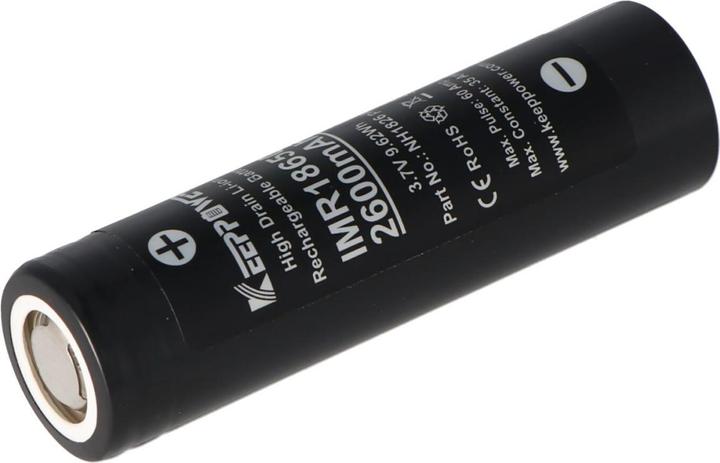

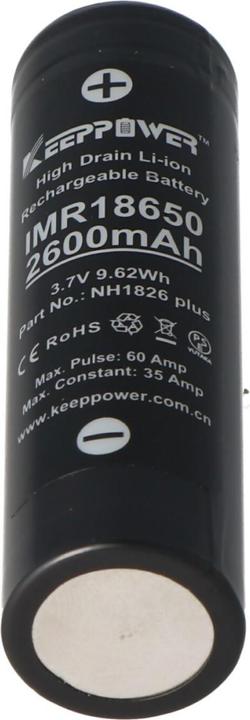

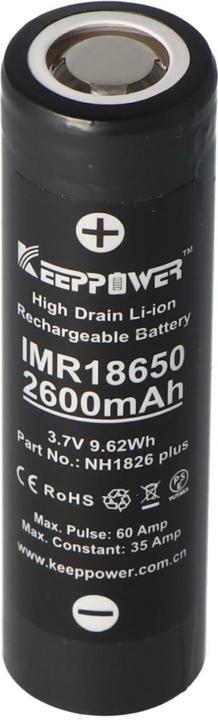

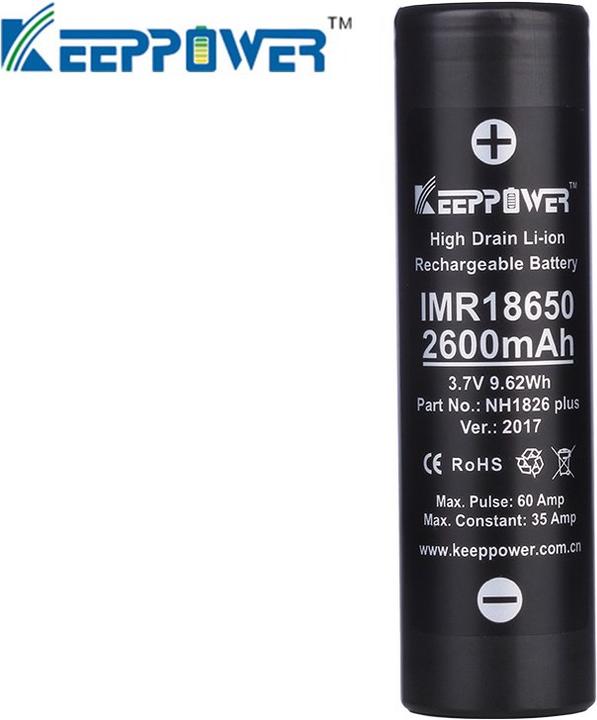

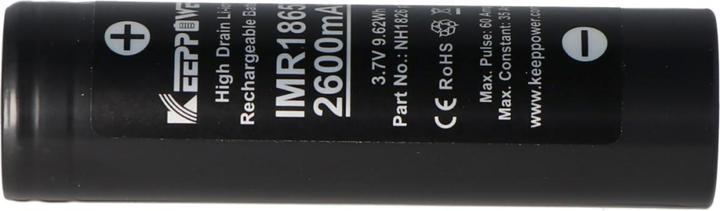

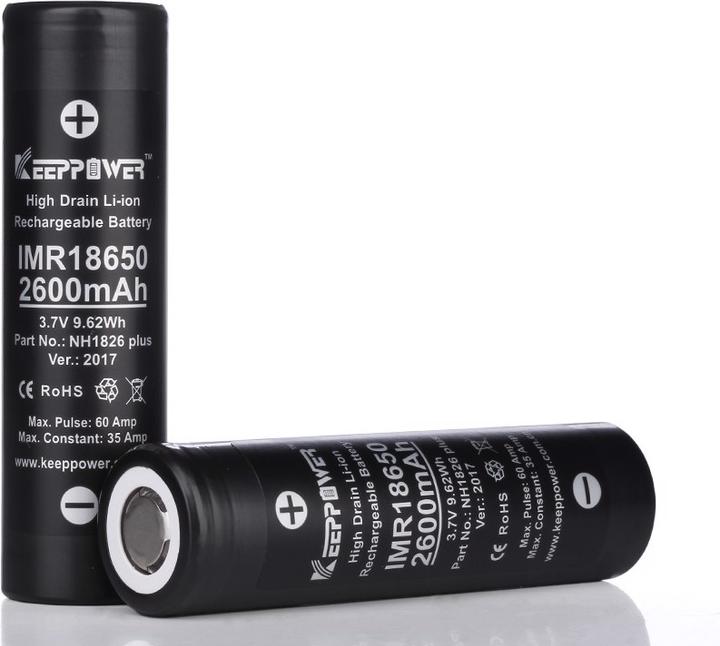

Keeppower Battery IMR18650 Plus (US18650VTC5A) (Flat Top) incl. battery protection box
1 pcs., 18650, 2600 mAhProduct details
The Keeppower IMR 18650 - 2600mAh cell, with a maximum discharge current of 35A, is based on an excellent high-drain cell from Sony Konion. Keeppower has equipped this user-friendly cell with a sturdier shrink wrap and important technical specifications. It is designed for very high current loads.
Keeppower IMR18650 Plus version with up to 35A continuous and 60A pulsed.
Technical specifications:
- Nominal capacity: 2600mAh
- Minimum capacity: 2500mAh
- Nominal voltage: 3.6V - 3.7V
- Charge termination voltage: 4.20V
- Discharge termination voltage: 2.0V
- Max. discharge current (continuous load) with temperature monitoring: 35A
- Max. discharge current (continuous load) without temperature monitoring: 20A
- Max. discharge current (pulsed approx. 3 seconds): 60A

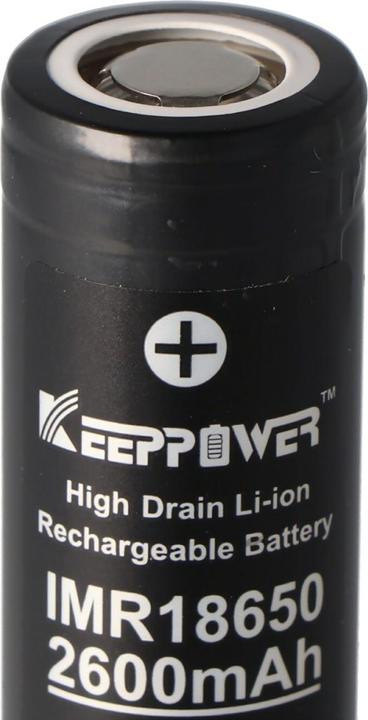

- Flat positive terminal (Flat Top)
- Protection circuit PCB: not present
- Charging method: CC-CV
- Diameter: 18.45 mm ± 0.10 mm
- Height: 65.1 mm ± 0.15 mm
- Weight: 48 g ± 1 g
Safety notes: Lithium cells should only be operated with protective electronics! Please note that lithium cells should only be used by knowledgeable individuals. Improper handling or short circuits can lead to fire or explosion.
Additional features: Lithium-ion batteries are thermally stable and do not suffer from memory effect. They operate on the basis of lithium and are characterized by a high energy density. In contrast to older NiMH/NiCd batteries, lithium-ion batteries discharge much more slowly.

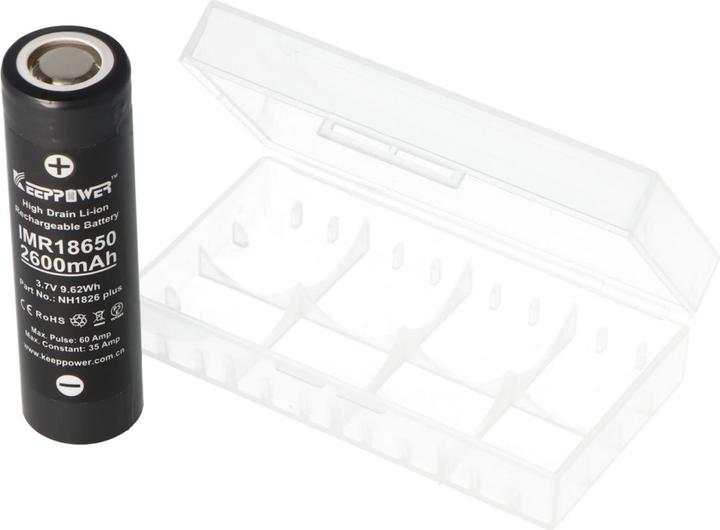

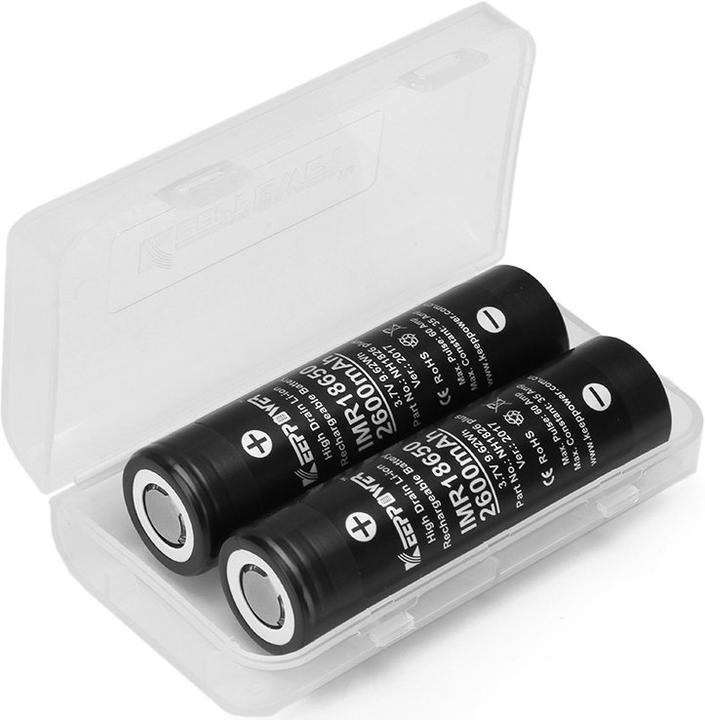

Delivery includes: 1x Keeppower IMR18650 Plus with 2600mAh. When ordering two batteries, a battery box is included for free.
Technical specifications for "Keeppower IMR18650 Plus 2600mAh 3.6V - 3.7V Li-Ion battery (US18650VTC5A)":
- Normal charge current: 1000mAh
- Charging time at 1550mA: approx. 3.5h
- Max. charge current: 6000mAh
- Charging time at 2710mA: approx. 2.5h
- Operating temperature for charging: 0 °C - 45 °C
- Operating temperature for discharging: -20 °C - 60 °C
Notes: Charging lithium-ion batteries requires a special charger that charges the batteries according to a specific charging method.
