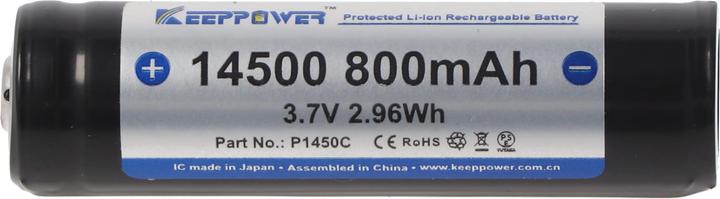

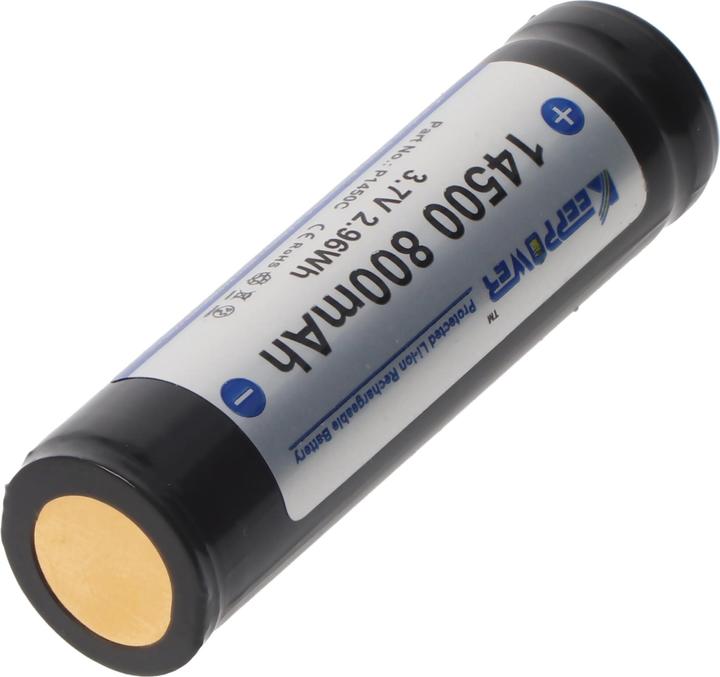

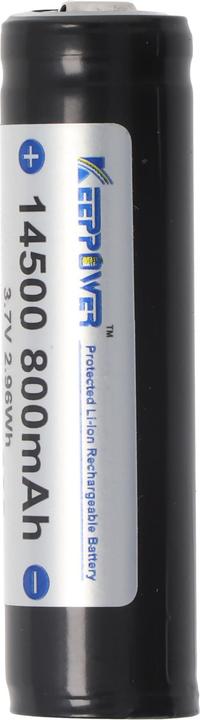

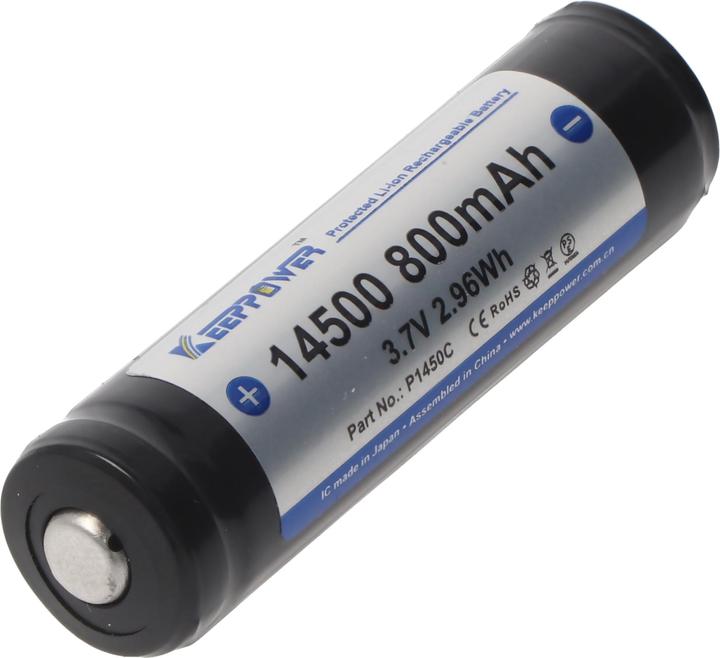

Keeppower Battery 14500

High-quality UL-certified DLG cell with long lifespan and high cycle stability. Keeppower 14500 lithium-ion battery, PCB protected, with short circuit, overcharge, and deep discharge protection. Seiko (Made in Japan).

Designed for use in flashlights, LEDs, battery carriers, etc. Please check the dimensions of the cell before purchasing! Due to the built-in electronics, the cell is not suitable for every application! Height and diameter are larger than a standard 14500 cell without PCB.

Cell DLG ICR14500NM
Max capacity 800 mAh
Min capacity 700 mAh
Nominal voltage 3.7 V
Charge termination voltage 4.2 V ± 0.05 V
Discharge termination voltage 2.75 V
Positive terminal raised (Button Top)
Max discharge current 2C = 1.6 A
Chemistry LiCo (ICR)
Protection circuit PCB integrated 5 A
Charging method CC-CV
Diameter 14.3 mm ± 0.15 mm
Height 52 mm ± 0.15 mm
Weight 20 g ± 1 g

Safety notes: Please note that removing or damaging the protective electronics (PCB) can lead to a short circuit, fire, or explosion.

Additional features: Lithium-ion batteries are thermally stable and do not suffer from memory effect. They operate on the basis of lithium and are characterized by high energy density.

Technical data for "Keeppower 14500 - 800 mAh, 3.7 V Li-ion battery protected"
Charging current Normal 600 mAh/3h
Operating temperature Charging 0 °C - 45 °C
Operating temperature Discharging -20 °C - 60 °C

Notes: Charging lithium-ion batteries requires a special charger that charges the batteries according to a specific charging method (CCCV = constant current, constant voltage). The batteries must not be charged above a voltage of 4.2 volts, as this poses a risk of fire and explosion. It is advantageous to charge the batteries only up to about 4.1 volts, as this significantly increases their lifespan and number of charge cycles (potentially up to doubling).
