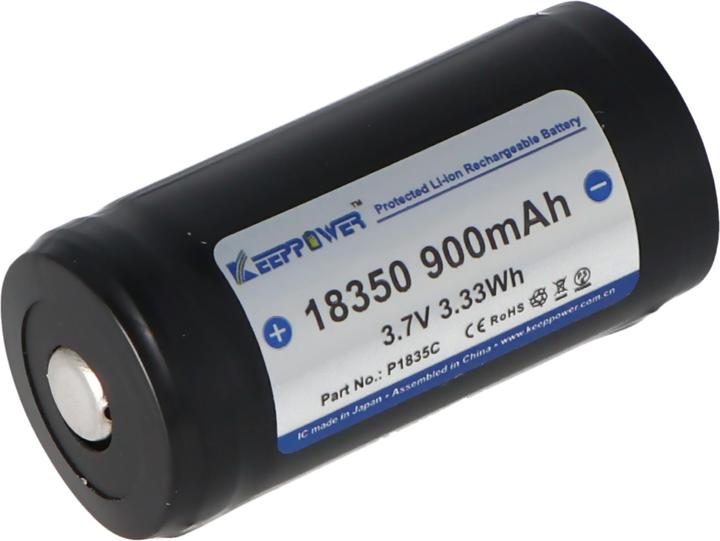

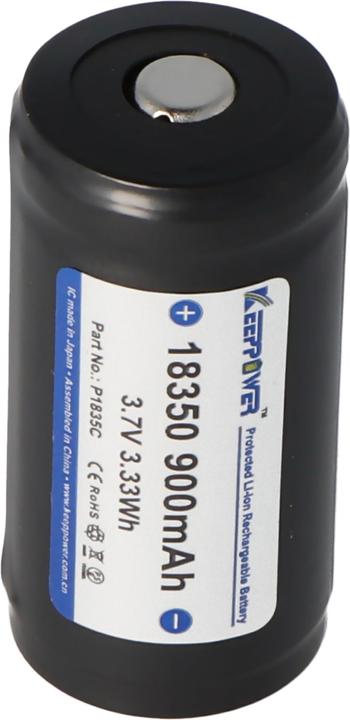

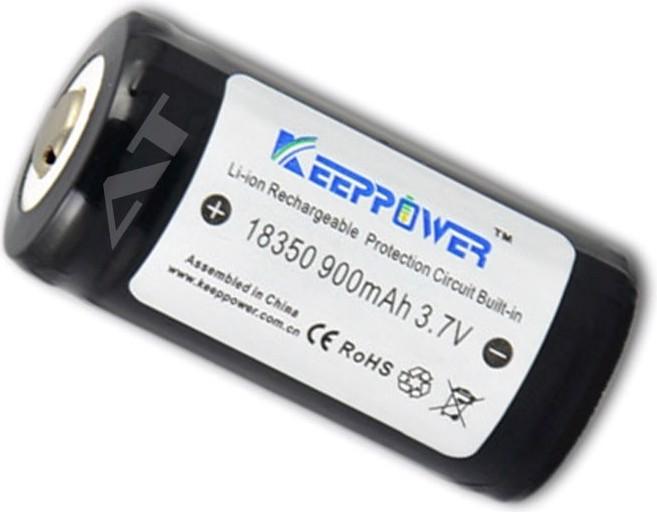

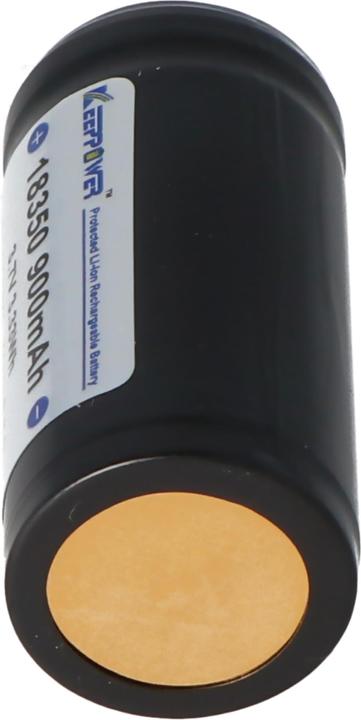

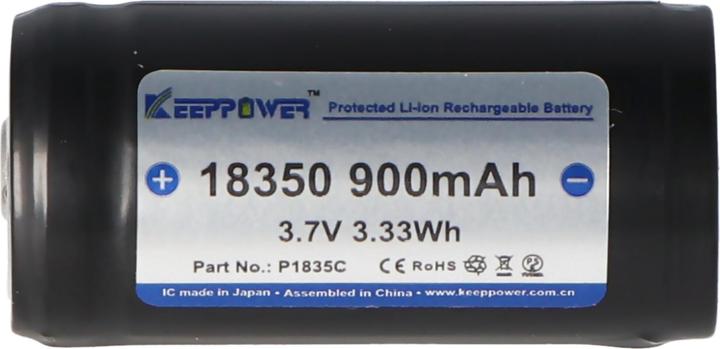

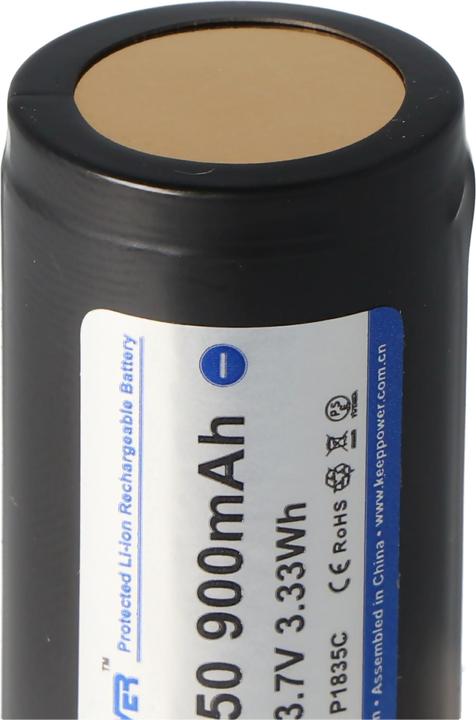

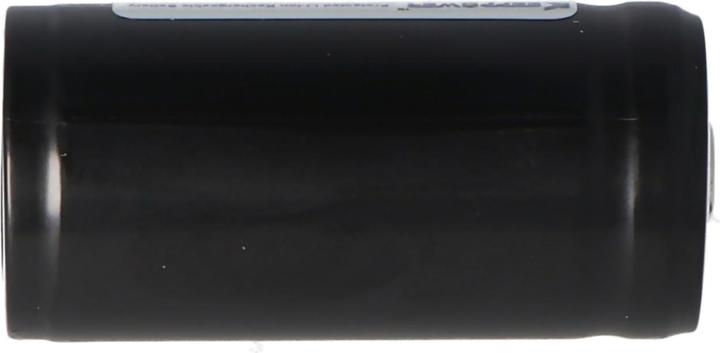

Keeppower 18350

High-quality cell with long lifespan and high cycle stability. Keeppower 18350 900mAh 3.7V lithium-ion battery, PCB protected, with short circuit, overcharge, and deep discharge protection. Designed for use in flashlights, LEDs, battery carriers, etc.

Technical specifications:

• Cell: DLG ICR18350
• Capacity: 900mAh
• Min. capacity: 850mAh
• Nominal voltage: 3.7V
• Charge termination voltage: 4.2V ± 0.05V
• Discharge termination voltage: 2.75V
• Positive terminal: raised (Button Top)
• Max. discharge current: 2C = 2A
• Chemistry: LiCoO2 (ICR)
• Protection circuit: PCB integrated 5A
• Charging method: CC-CV
• Diameter: 18.45 mm ± 0.15 mm
• Height: 38.20 mm ± 0.15 mm
• Weight: 25.4 g ± 1 g

Safety notes: Please note that removing or damaging the protection electronics (PCB) can lead to a short circuit, fire, or explosion.

Additional features: Lithium-ion batteries are thermally stable and do not suffer from memory effect. They operate on the basis of lithium and are characterized by high energy density.

Normal charging current: 650mAh/3h
Operating temperature for charging: 0 °C - 45 °C
Operating temperature for discharging: -20 °C - 60 °C

Notes: Charging lithium-ion batteries requires a special charger that charges the batteries using a specific charging method (CCCV = constant current, constant voltage). The batteries must not be charged beyond a voltage of 4.2 volts, as this poses a risk of fire and explosion. It is beneficial to charge the batteries only up to about 4.1 volts, as this significantly increases their lifespan and the number of charge cycles (potentially doubling it). Only lithium-ion chargers should be used for charging. However, cheap chargers often have the disadvantage of not safely shutting off after the charging process is complete, continuing to charge the batteries with a small current.
