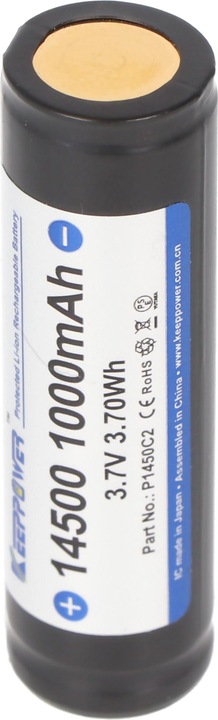

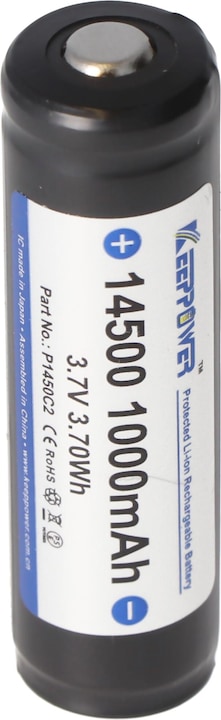

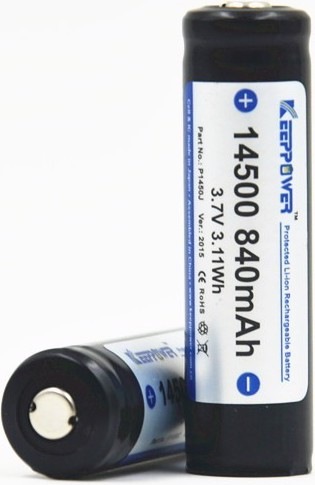

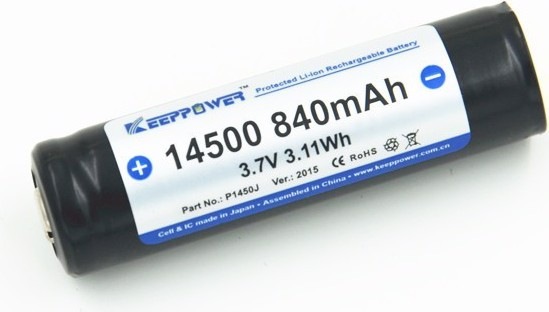

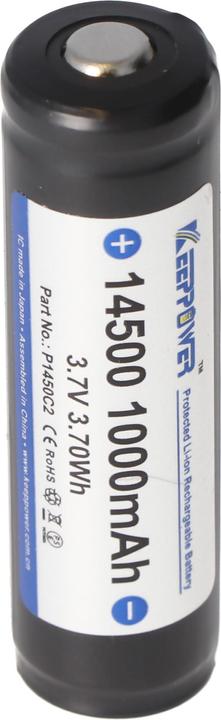

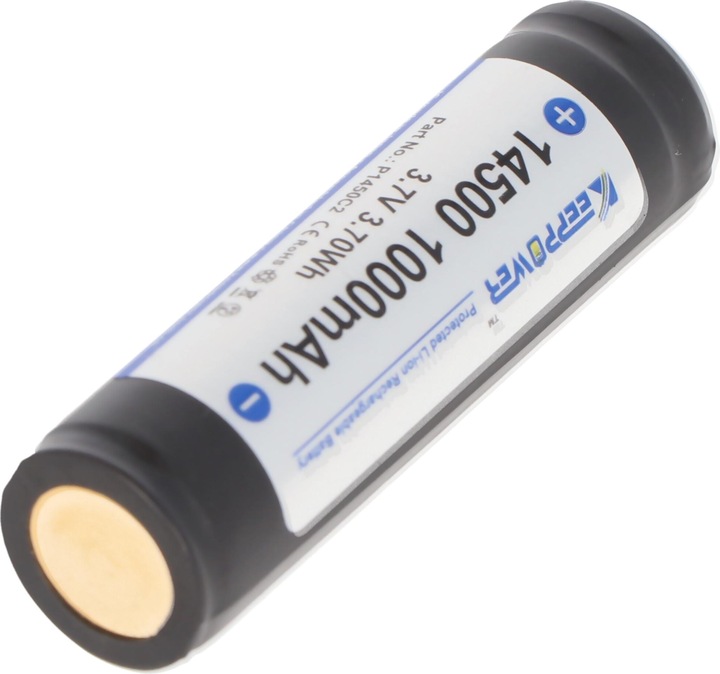

Keeppower 14500

High quality Sanyo (Made in Japan) cell with long life and high cycle stability. Protection/PCB with short circuit, overcharge and deep discharge protection. Designed for the fields of flashlights, LEDs, battery carriers, etc. Dimensions 52x14.3mmKeeppower 14500 lithium-ion battery PCB protectedPlease pay attention to the dimensions of the cell before buying! Due to the built-in electronics, the cell is not suitable for every application!
Height and diameter are larger than a standard 14500 cell without PCB.CellSanyo UR14500P capacity840mAhMin. capacity800mAhNominal voltage3.7VCharging voltage4.2V ± 0.05VDischarging voltage2.75VCalculated internal resistance0.19OhmPluspolerhöhung (Button Top)Max. Discharge Current2C = 3AChemistryLiCo (ICR)Protection Circuit PCBintegrated 5ALcharging methodCC-CVDiameter14.3 mm ± 0.15 mmHeight52 mm ± 0.15 mmWeight20 g ± 1 gTest ResultsLygte InfoComparison TestVapor BatteriesSafety Note:Please note that removing or. Please note that removing or damaging the protective electronics (PCB) can lead to a short circuit, fire or explosion.Other features:Lithium-ion batteries are thermally stable and are not subject to any memory effect.
They work on the basis of lithium and are characterized by a high energy density.Technical data for "Keeppower 14500 - 840mAh, 3.7V Li-Ion battery protected "Charging current Normal800mAh/3hOperating temperature Charging0 °C - 45 °COperating temperature Discharging-20 °C - 60 °CHinstructions:For charging lithium-ion batteries, a special charger is required, which charges the batteries according to a special charging procedure. (CCCV = constant current, constant voltage.) The batteries must not be charged above a voltage of 4.2 volts, otherwise there is a risk of fire and explosion. It is advantageous to charge the batteries only up to approx. 4.1 volts, as this increases the service life or the number of charging cycles.
