Jumo Digital input/output module

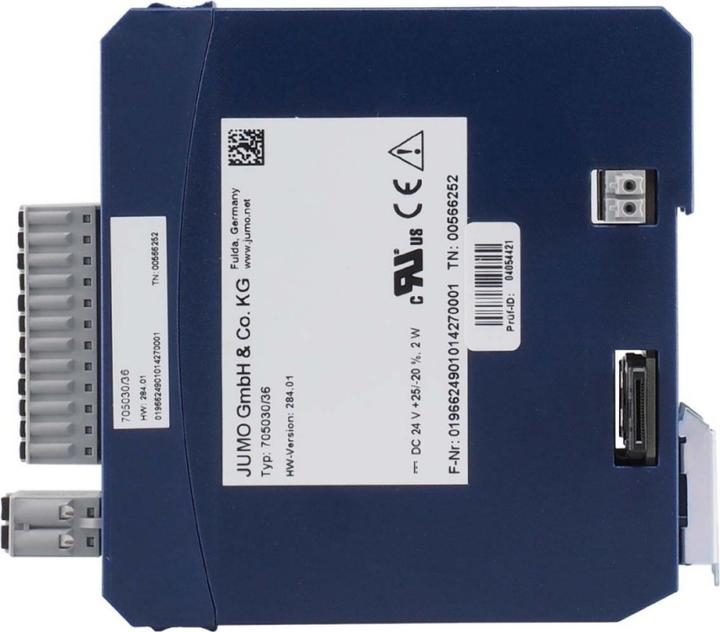

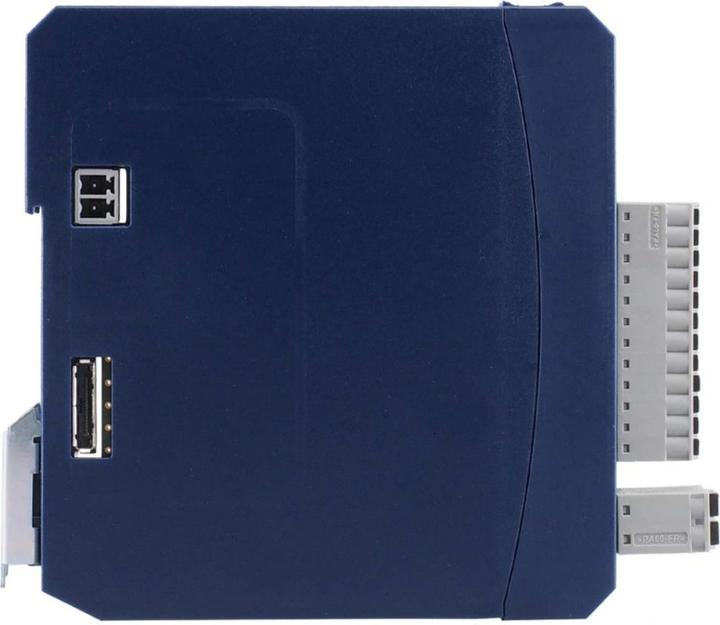

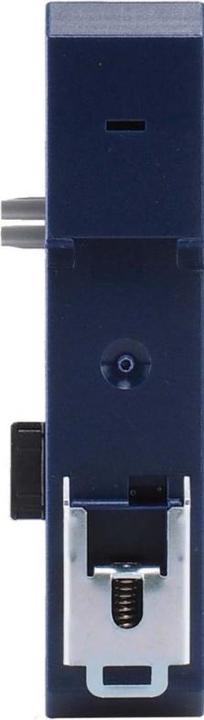

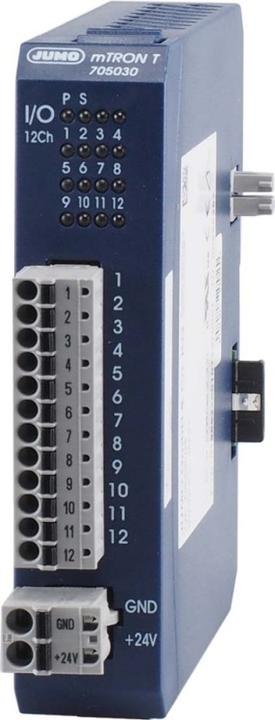

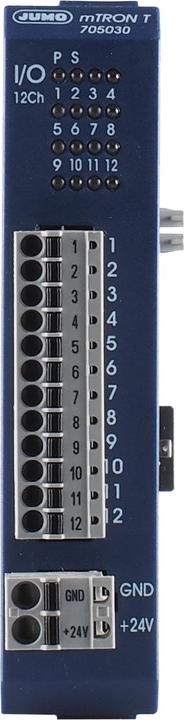

The 12-channel digital input/output module (component of the overall mTRON T system) for DIN rail mounting has a power supply of DC 24 V +25/-20%. The module features twelve channels that can be configured as either digital inputs or digital outputs. The digitized input states are available for further processing in the system. The digital outputs are controlled via the system bus using digital signals (assignment via the connection list or directly from the PLC). The load current of up to 6 A (12 x max. 500 mA) must be provided through the front terminals +24 V/GND. The status of the power supply, the operating states of the module, and the states of the digital inputs and outputs are indicated by LEDs. A setup program allows the user to comfortably configure the digital input/output module. In case of service, the module can be easily pulled forward out of the housing, while the housing, including the bus board, remains mounted on the DIN rail.
