Jeti DUPLEX 2.4EX Central Box 220 + 2x Rsat2 + RC Switch

Ratings
BrandMore from Jeti
Currently out of stock
Free shipping starting at 50.–

Product details

Product Description and Features

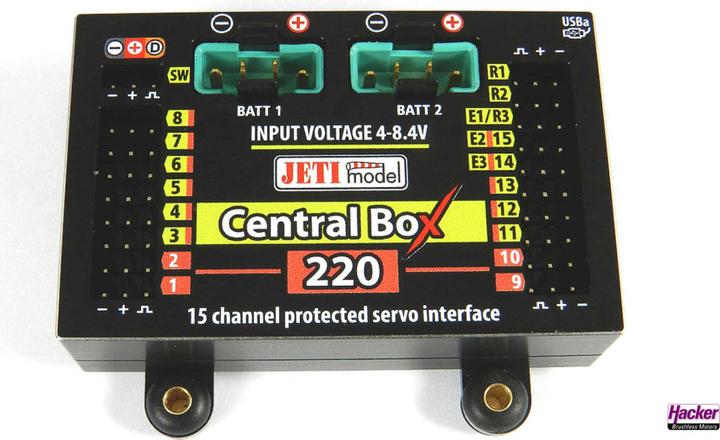

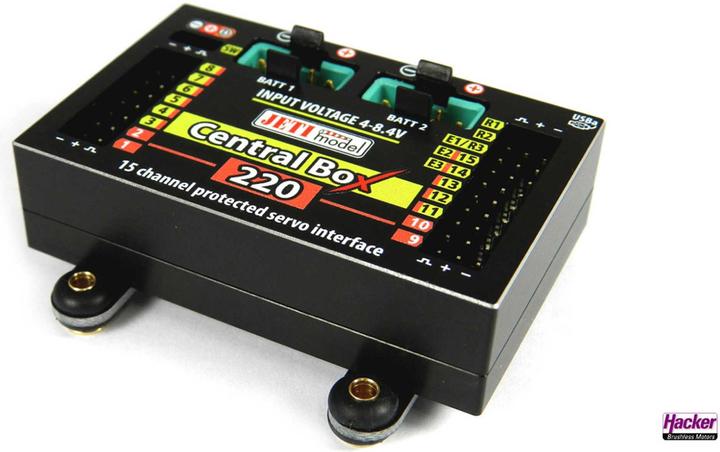

The Central Box 220 is the successor to the popular Central Box 200. Specifically designed for use with powerful and power-hungry servos, the Central Box 220 features an aluminum housing and enhanced overcurrent protection for the servo ports. It offers true battery redundancy, DITEX servo telemetry, JETI EX telemetry, and up to three receiver inputs (2x 2.4GHz and 1x 900MHz) for complete power and RF signal redundancy.

Configuration via JETI Duplex DS/DC Transmitters

With JETI Duplex DC/DS transmitters, the full potential of the Central Box 220 can be utilized. The device overview of the JETI Duplex DS/DC transmitter allows for easy configuration of the servo outputs, DITEX servo and JETI EX telemetry, function assignments, and more.

Power On and Off Process

The power on and off process of the Central Box 220 is performed using the included magnetic switch.

Recommended Receivers

Receivers such as 2 RSat2 or REX3 receivers can be used. Optionally, a REX Assist receiver can be used together with an RSat2 receiver, providing a Central Box with gyro stabilization.

Features

  • Configurable servo outputs
  • Protected servo outputs (max. current 11x 10A and 4x 30A)
  • Battery connections 2x MPX plug system
  • Robust aluminum housing for additional cooling and protection
  • Firmware updatable via JETI USB adapter and JETI Studio
  • Wirelessly programmable via the device overview of the DC/DS transmitters
  • Up to 3 independent receiver inputs (R1, R2, E1/R3)
  • Up to 15 servo ports (suitable for DITEX servo telemetry)
  • Up to 3 telemetry sensor inputs (E1/R3, E2/15, E3/14)
  • Input for the included magnetic switch or optional RC switch

Scope of Delivery

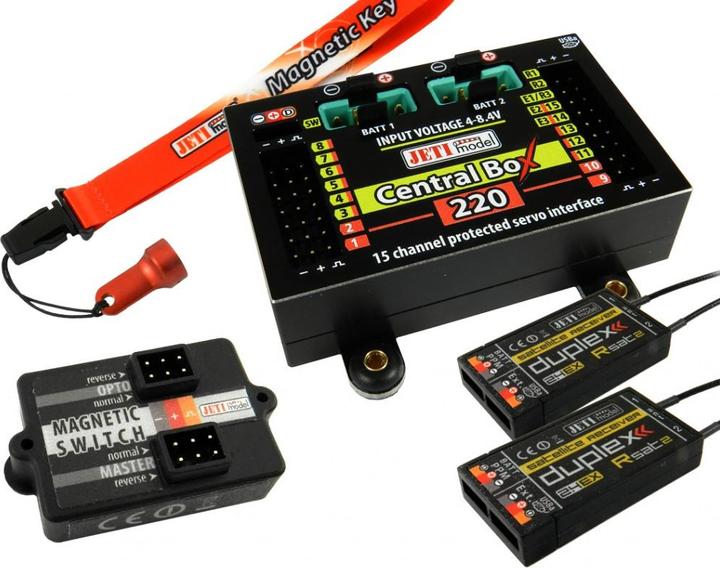

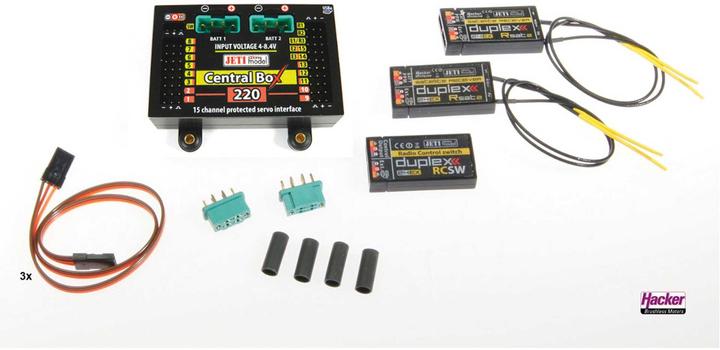

1 JETI Duplex 2.4EX Central Box 220, 1 RC switch, 1 magnetic key, 2 JETI Duplex 2.4EX RSat2 receivers, and 3 patch cables.

Key specifications

Radio frequency
2.40 GHz

General information

Item number
12669584
Manufacturer
Jeti
Category
RC controllers + receivers
Manufacturer No.
80001680
Release date
5.2.2020

Colour

Colour
Black

Target group

Warning label toy
Caution: Not suitable for children under 14 years of age

Remote control

Remote control Accessory type
Battery switch
Radio frequency
2.40 GHz

Receiver Features

Frequency
2.40 GHz
Operating voltage
4 V

Product dimensions

Length
4.20 cm
Width
6.60 cm
Height
1.80 cm
Weight
65 g

Package dimensions

Length
15 cm
Width
10 cm
Height
4 cm
Weight
244 g
