Intertech IPC 4U-4098-S

19" IPC 4U-4098-S

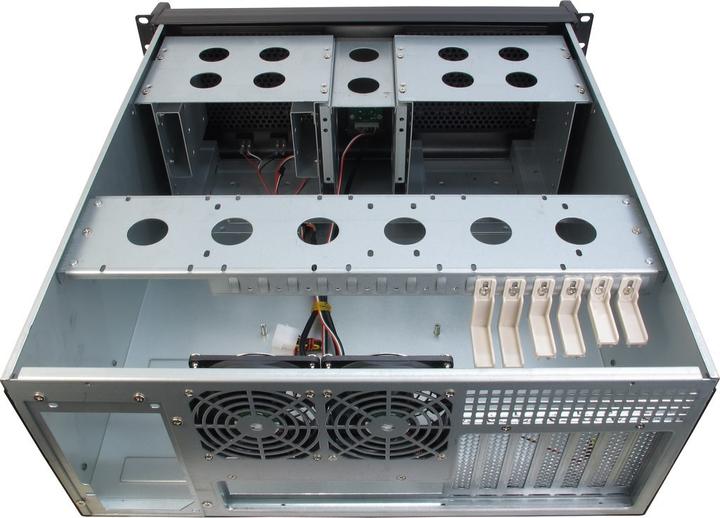

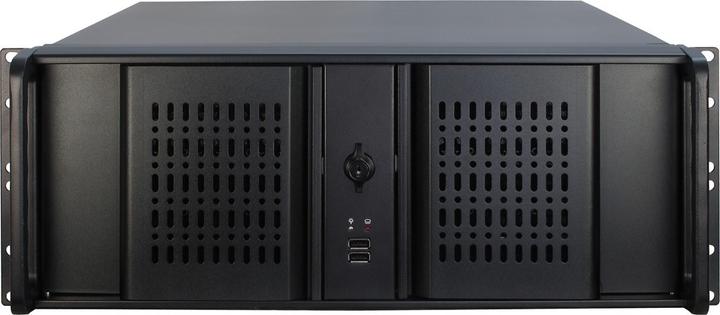

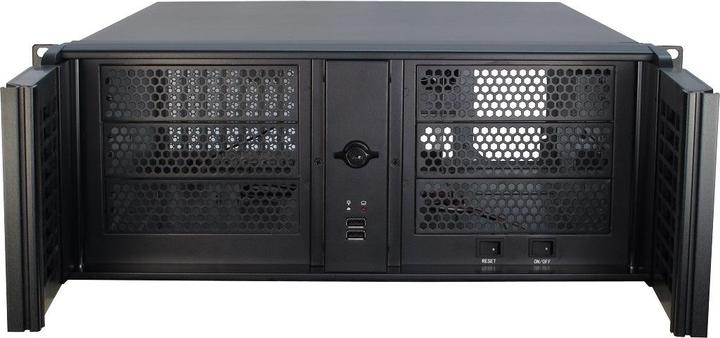

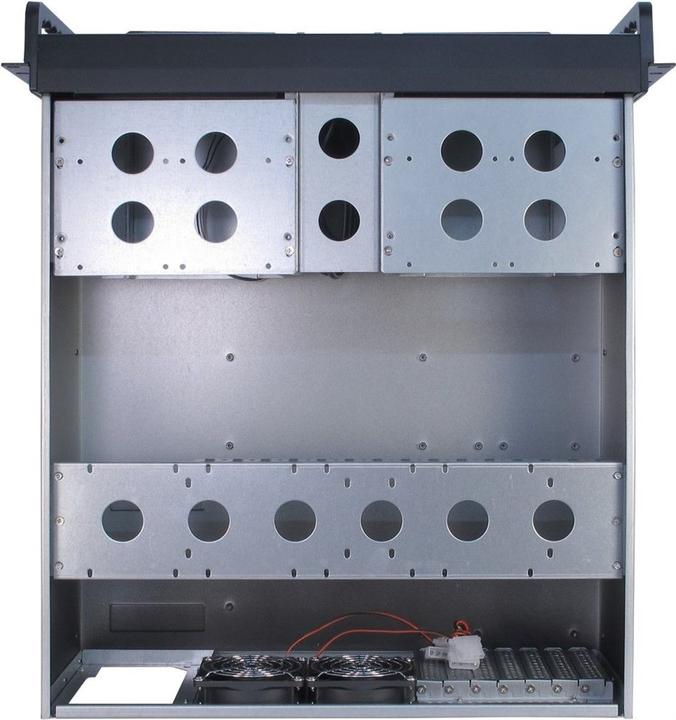

Classic 19" rack with plenty of space for various drives. The drive cages can be easily removed, allowing for a relaxed installation of the drives. Slot card holders on the internal, removable crossbar, which can also accommodate up to 4x 2.5" drives, ensure secure operation of the inserted cards. Thanks to the lockable doors at the front, external drives are protected from unauthorized access. Integrated dust filters provide clean air and optimal cooling performance.

Design
Material: Steel
Form Factor: Rack
Type: Server
Product Color: Black
Supported Motherboard Form Factors: ATX, micro ATX, Mini-ITX
Number of 3.5" Expansion Slots: 5
Number of 5.25" Expansion Slots: 6
Number of 2.5" Expansion Slots: 6
Number of Internal 3.5" Expansion Slots: 5
Number of External 5.25" Expansion Slots: 6
Feature: Rack Mountable
Rack Capacity: 4U
Feature: Reset Button
LED Indicators: Power, HDD

Connections and Interfaces
Number of USB 2.0 Ports: 2

Cooling
Number of Supported Rear Fans (max.): 2
Diameter of Supported Rear Fans: 80 mm

Storage Medium
Supported Hard Disk Drive Sizes: 2.5, 3.5"

Weight and Dimensions
Width: 485 mm
Depth: 520 mm
Height: 178 mm
Weight: 11.4 kg
Material Thickness: 1.2 mm

Packaging Data
Packaging Width: 560 mm
Packaging Depth: 630 mm
Packaging Height: 280 mm
Package Weight: 13.9 kg

Logistics Data
Harmonized System Code (HS): 84733080.
