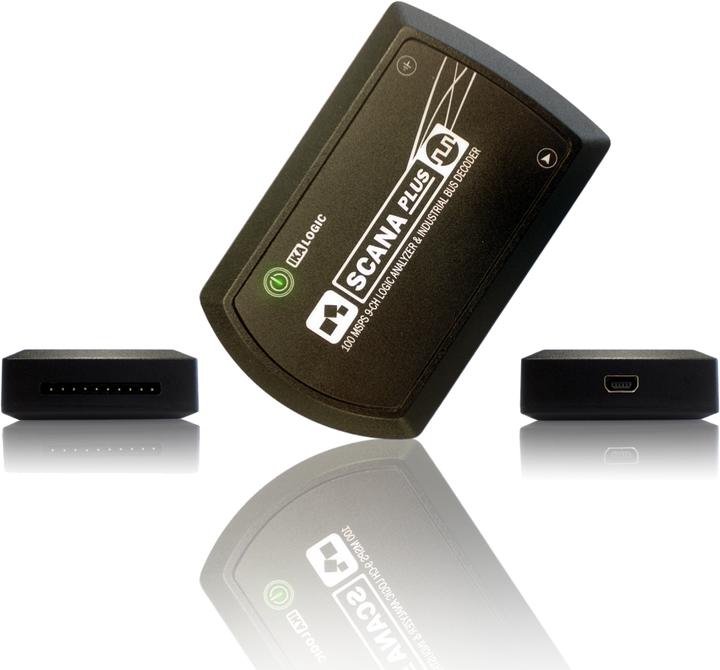

Ikalogic ScanaPLUS: 9-Channels 100MHz Logic Analyser

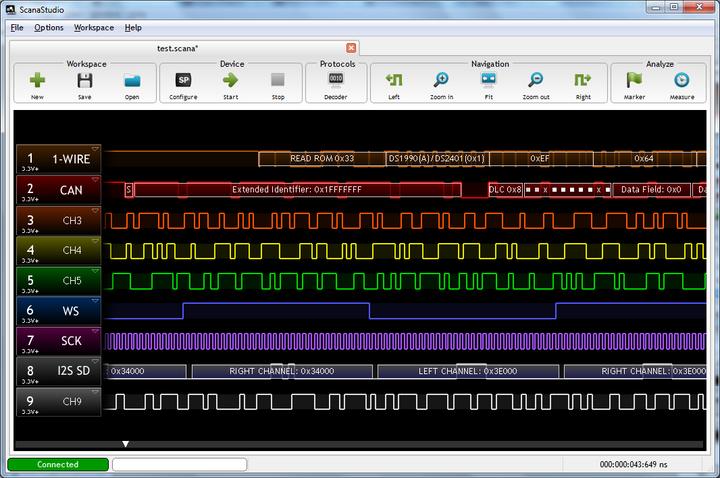

ScanaPLUS is a robust, versatile, and cross-application 9-channel logic analyzer system. It relies on the free ScanaStudio software for capturing and analyzing logic signals.

This logic analyzer captures signals at a rate of 100 MSPS (million samples per second) across all 9 channels. The signals are then compressed and streamed in real-time to the host computer.

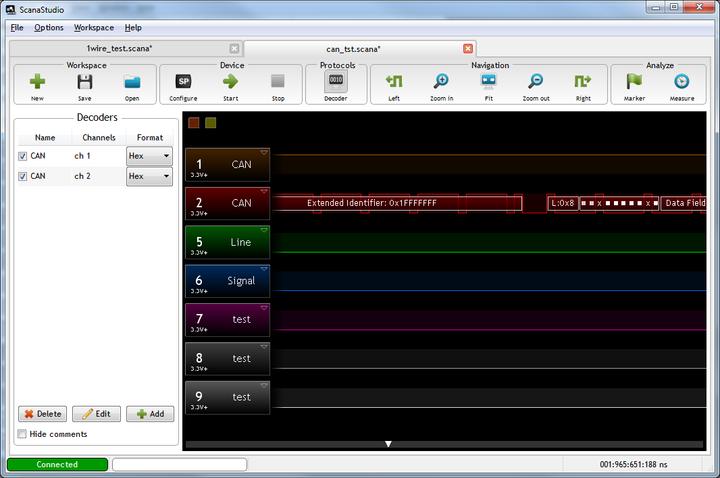

Thanks to its configurable and fully protected input stage, ScanaPLUS can be directly connected to RS232, CAN, or RS485 differential lines, or to tiny 1.2V logic signals.

Additionally, a 9-channel logic analyzer allows for working with 8-bit buses that have an additional 9th channel for a synchronization signal.

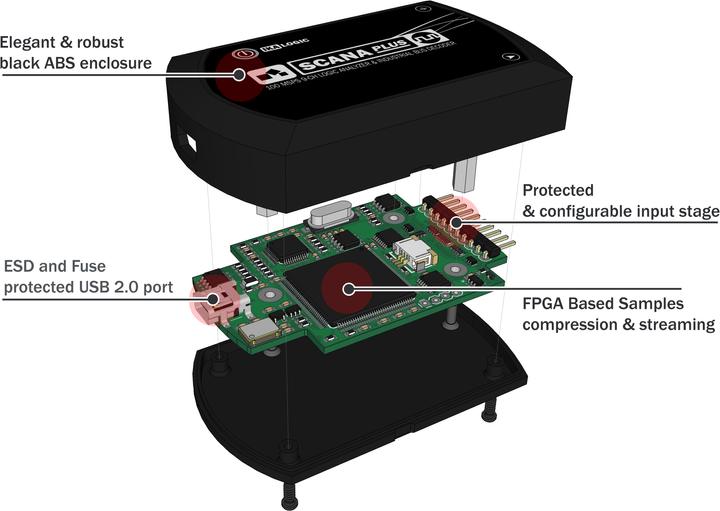

No more worries about maximum capture time or the transfer speed from the device to the computer. ScanaPLUS utilizes a proprietary FPGA-based compression and streaming algorithm that captures signals for as long as your computer can handle!

Details:

* 100 MSPS (million samples per second).
* Accuracy: 10 ns
* Maximum input frequency: 10 MHz.
* Maximum capture time: 2000 seconds (33 minutes).
* Number of channels: 9.
* Dimensions: 73 x 46 x 17 mm (2.87 x 1.81 x 0.67 inches).
* Weight: 59 g (2.08 oz).

The maximum capture time is only limited by the capabilities of the software and can be increased through future software updates.
