IB Connect Built-in socket
Socket type2
Product details

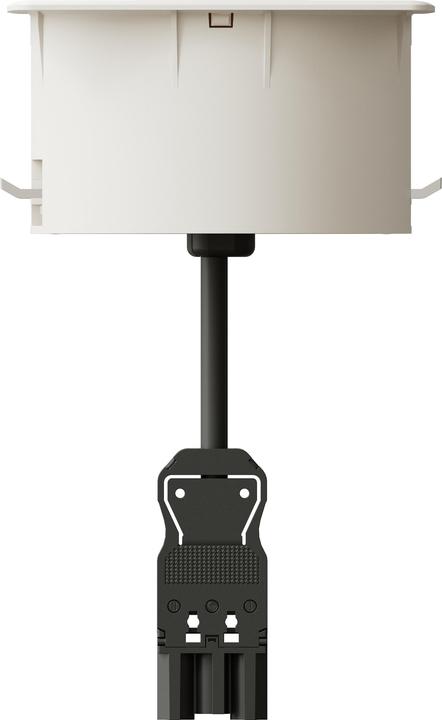

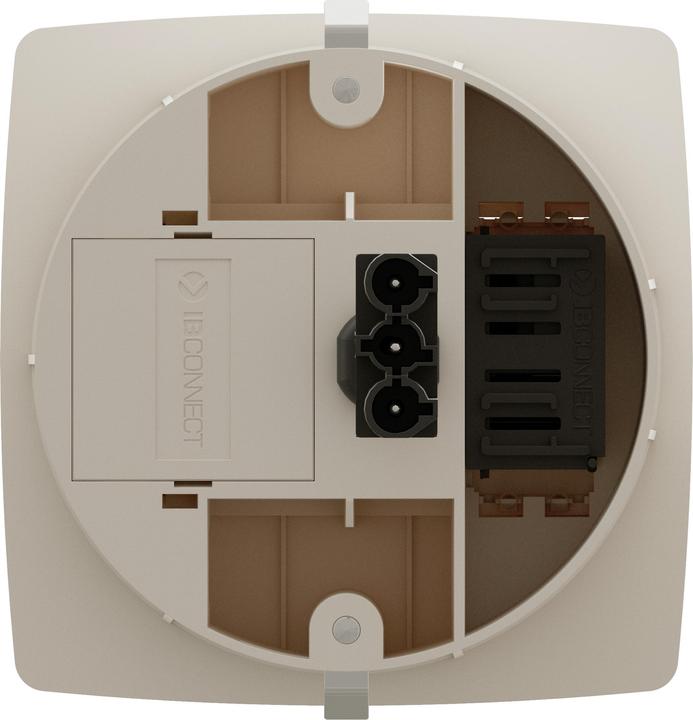

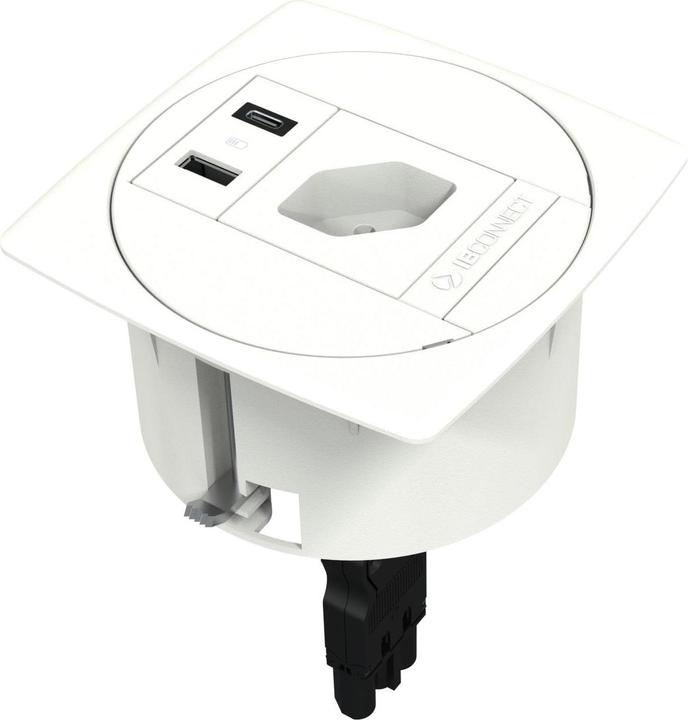

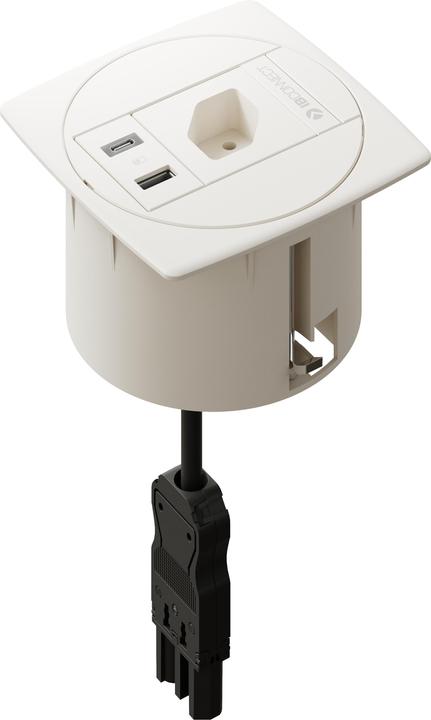

Unit socket unit in white profile RAL9010 with 1x Type 13 socket, 1x USB-A charger 5/10W, and 1x USB-C charger 15W. Made of polycarbonate. Supply line: connector compatible with AC166 and the market standard H05VV-F3G1.5, length 0.3 m.
The UNIT connection panels are a simple installation solution for electrifying workplaces, suspended ceilings, and mobile walls with panel thicknesses from 8 to 42 mm. With a diameter of 110 mm, it allows for the installation of sockets, data, and multimedia modules.

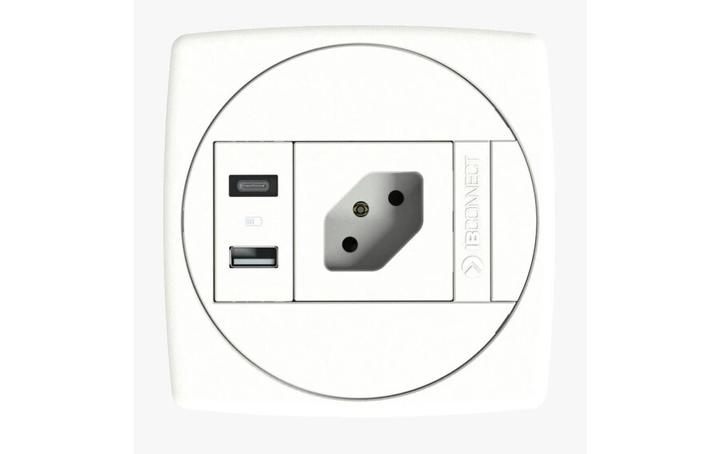

This white socket unit offers three outlets: one Type 13 socket and one each of USB-A and USB-C ports. The increased touch protection prevents the insertion of needles and other thin objects into the sockets, effectively protecting small children from electrical accidents.
Exact colour description | White |
Socket type | Type 13 |
Mounting type | Built-in installation |
Number of cans | 1x |
Item number | 23132732 |
Manufacturer | IB Connect |
Category | Sockets |
Manufacturer no. | 46203040S10-1 |
Release date | 16.11.2022 |
Colour | White |
Exact colour description | White |
Material group | Plastic |
Material | Polycarbonate (PC) |
Socket type | Built-in socket |
Socket type | Type 13 |
Number of cans | 1x |
Protection type (IP code) | IP20 |
Mounting type | Built-in installation |
connector type | Plug terminal |
Additional properties | Contact protection |
Smart Home | Not compatible |
CO₂-Emission | |
Climate contribution |
Cable length | 0.30 m |
Length | 11 cm |
Width | 11 cm |
Height | 5.95 cm |
Weight | 300 g |
Length | 14.50 cm |
Width | 13 cm |
Height | 12 cm |
Weight | 334 g |
