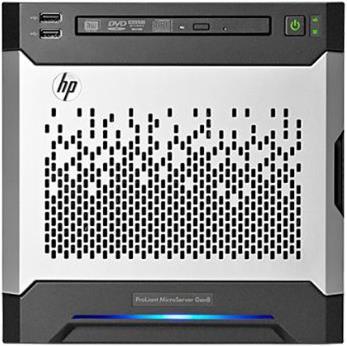

The ProLiant MicroServer Gen8 is a compact and powerful micro server, ideal for small businesses and offices. Equipped with an Intel Celeron G1610T processor, it offers a clock speed of 2.3 GHz and supports up to 16 GB of RAM, enabling efficient data processing. The server features two DIMM slots, populated with a 2 GB PC3-12800E Unbuffered ECC RAM. The integrated Matrox G200 graphics provide for basic graphical requirements. The ProLiant MicroServer Gen8 accommodates up to four 3.5-inch hard drives, supporting a maximum storage capacity of up to 12 TB. With a Smart Array B120i storage controller and various RAID configurations, it allows for flexible and secure data storage. Network connectivity is ensured by an integrated Gigabit Ethernet controller, facilitating reliable and fast data transfer. The server is designed to operate without a pre-installed operating system and offers numerous connectivity options, including USB 2.0 and USB 3.0 ports as well as LAN connections.
Processor family | Celeron |
Processor type | Intel Celeron G1610T |
Max. number of hard disks | 4 |
Number of processors | 1 x |
RAM | 2 GB |
Operating system | No operating system |
Documents | |
Item number | 449063 |
Manufacturer | HPE |
Category | Servers |
Manufacturer no. | 712317-421 |
Release date | 2.7.2013 |
External links |
Design | Micro Server |
Processor family | Celeron |
Processor type | Intel Celeron G1610T |
Number of processors | 1 x |
Number of processor sockets | 1 x |
Clock frequency | 2.30 GHz |
Number of threads | 2 |
Number of processor cores | 2 -Core |
Max. TDP | 35 W |
L3 Cache | 2 MB |
Socket | LGA 1155 |
Chipset | Intel C204 |
Memory type | DDR3-RAM |
Max. memory slots | 2 |
Memory configuration | 1 x 2GB |
RAM | 2 GB |
Max. RAM | 16 GB |
RAM speed | 1333 MHz |
RAM error correction | ECC |
RAID configuration | 0, 1, 10 |
Possible raid configuration | 0, 1, 10 |
Mass storage controller type | SATA III |
Data storage controller | HP SmartArray B120i |
Max. number of hard disks | 4 |
Form factor | 3.5" |
Expansion slot | PCI Express x16 (1x) |
PCI express version (max.) | 1 |
Internal connection options | PCI Express x16 (1x), PCI Express x8 (2x) |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (4x), USB-A 3.0 (2x) |
Connectivity | Ethernet |
Network connections | RJ45 (2x) |
Ethernet controller | 331i |
Ethernet controller brand | HP |
Max. port speed | 1000 Mbit/s |
Graphics card model | G200 |
Video memory type | DDR3 |
Graphics chip (GPU) | Intel HD Graphics |
Hardware interface | PCIe 2.0 |
Video connections | VGA (1x) |
Optical drive type | No drive |
Operating system | No operating system |
Processor design | 64-bit |
Number of power supply units | 1 x |
Power | 150 W |
input voltage | 120 - 230 V |
Max. number of power supply units | 1 |
CO₂-Emission | |
Climate contribution |
Length | 245 mm |
Width | 230 mm |
Height | 232 mm |
Weight | 6.80 kg |
