Product details

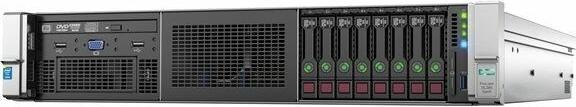

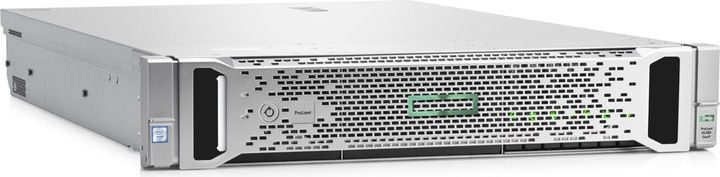

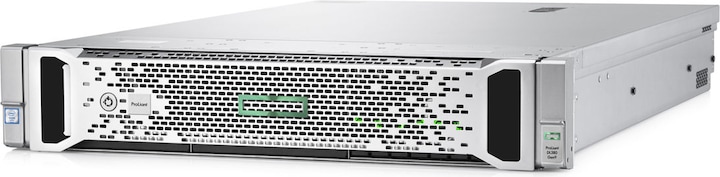

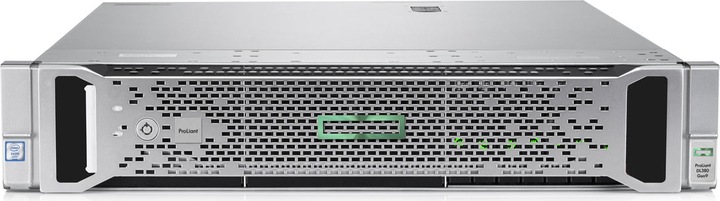

The HP ProLiant DL380 Gen9 server offers the highest performance and the most comprehensive expansion options of all HP rack servers, with space for 2 processors. Thanks to its reliability, ease of maintenance, and near-continuous availability, as well as an extensive warranty, this device is ideal for any server environment. This server reliably runs both simple and mission-critical applications and can be deployed without any issues.
Number of rack units | 2 U |
Processor family | Xeon E5 |
Processor type | Intel Xeon E5-2630 v4 |
Max. number of hard disks | 8 |
Number of processors | 1 x |
RAM | 16 GB |
Operating system | No operating system |
Item number | 5999962 |
Design | Rack Server |
Number of rack units | 2 U |
Processor family | Xeon E5 |
Processor type | Intel Xeon E5-2630 v4 |
Number of processors | 1 x |
Number of processor sockets | 2 x |
Clock frequency | 3.10 GHz |
Number of threads | 20 |
Number of processor cores | 10 -Core |
Max. turbo clock rate | 3.10 GHz |
Max. TDP | 85 W |
L3 Cache | 25 MB |
Socket | LGA 2011-v3 |
Chipset | Intel C610 |
Memory type | DDR4-RAM |
Max. memory slots | 24 |
Memory configuration | 1 x 16GB |
RAM | 16 GB |
Max. RAM | 3072 GB |
RAM speed | 2400 MHz |
RAM error correction | ECC |
RAM buffer | Registered |
Possible raid configuration | 0, 1, 10, 5, 50 |
Mass storage controller type | SAS |
Data storage controller | HP Smart Array P440ar |
Max. number of hard disks | 8 |
Form factor | 2.5" |
Interface | SAS 3.0 |
Hard disk additional functions | Hot plugging |
Expansion slot | PCI Express x16 (2x), PCI Express x8 (1x) |
PCI express version (max.) | 3 |
USB ports | USB-A |
Exact USB ports | USB-A 3.0 (3x) |
Connectivity | Ethernet |
Network connections | RJ45 (4x) |
Ethernet controller | 331i |
Max. port speed | 1000 Mbit/s |
Graphics card model | G200eH2 |
Video memory type | GDDR4 |
Graphics chip (GPU) | Matrox |
Hardware interface | PCI Express 3.0 |
Video connections | VGA (1x) |
Optical drive type | No drive |
Operating system | No operating system |
Processor design | 64-bit |
Number of power supply units | 1 x |
Power | 500 W |
Max. number of power supply units | 2 |
CO₂-Emission | |
Climate contribution |
Length | 680 mm |
Width | 446 mm |
Height | 88 mm |
Weight | 25 kg |
Specifications may include unverified machine translations.
