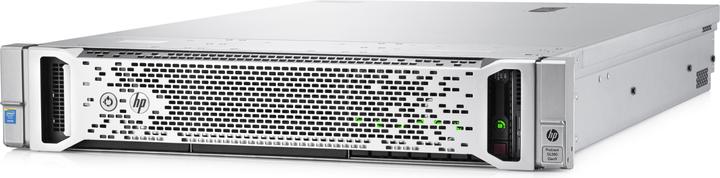

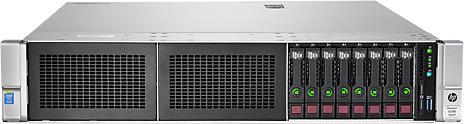

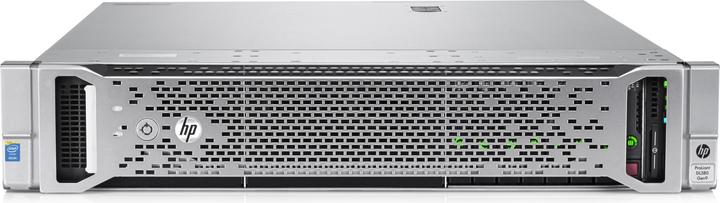

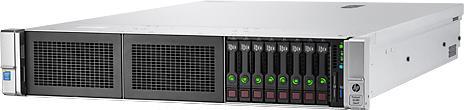

HPE ProLiant DL380 Gen9
Intel Xeon E5-2620 v3, 16 GB, Rack ServerFree shipping starting at 50.–
The HP ProLiant DL380 Gen9 server offers the highest performance and the most comprehensive expansion options of all HP rack servers, with space for two processors. Thanks to its reliability, ease of maintenance, and nearly continuous availability, as well as a comprehensive warranty, the device is ideal for any server environment. This server reliably runs both simple and mission-critical applications and can be deployed without any issues.
Number of rack units | 2 U |
Processor family | Xeon E5 |
Processor type | Intel Xeon E5-2620 v3 |
Max. number of hard disks | 8 |
Number of processors | 1 x |
RAM | 16 GB |
Operating system | No operating system |
Documents | |
Item number | 2758801 |
Design | Rack Server |
Number of rack units | 2 U |
Processor family | Xeon E5 |
Processor type | Intel Xeon E5-2620 v3 |
Number of processors | 1 x |
Number of processor sockets | 2 x |
Clock frequency | 2.40 GHz |
Number of threads | 12 |
Number of processor cores | 6 -Core |
Max. turbo clock rate | 3.20 GHz |
Max. TDP | 85 W |
L3 Cache | 15 MB |
Socket | LGA 2011-v3 |
Chipset | Intel C610 |
Memory type | DDR4-RAM |
Max. memory slots | 12 |
Memory configuration | 1 x 16GB |
RAM | 16 GB |
Max. RAM | 384 GB |
RAM speed | 2133 MHz |
RAM error correction | ECC |
RAM buffer | Registered |
Possible raid configuration | 0, 1, 10, 5 |
Mass storage controller type | SAS |
Data storage controller | HP Smart Array P440ar |
Max. number of hard disks | 8 |
Form factor | 2.5" |
Interface version | SAS 3.0 |
Hard disk additional functions | Hot plugging |
Expansion slot | PCI Express x16 (2x), PCI Express x8 (1x) |
PCI express version (max.) | 3 |
Internal connection options | PCI Express x16 (1x), PCI Express x4 (1x), PCI Express x8 (1x) |
USB ports | USB-A |
Exact USB ports | USB-A 3.0 (3x) |
Connectivity | USB |
Network connections | RJ45 (4x) |
Ethernet controller | 331i |
Ethernet controller brand | HP |
Max. port speed | 1000 Mbit/s |
Graphics card model | G200eH2 |
Video memory type | GDDR4 |
Graphics chip (GPU) | Matrox |
Hardware interface | PCI Express 3.0 |
Video connections | VGA (1x) |
Optical drive type | No drive |
Operating system | No operating system |
Processor design | 64-bit |
Number of power supply units | 1 x |
Power | 500 W |
Max. number of power supply units | 2 |
CO₂-Emission | |
Climate contribution |
Length | 680 mm |
Width | 446 mm |
Height | 88 mm |
Weight | 18 kg |
