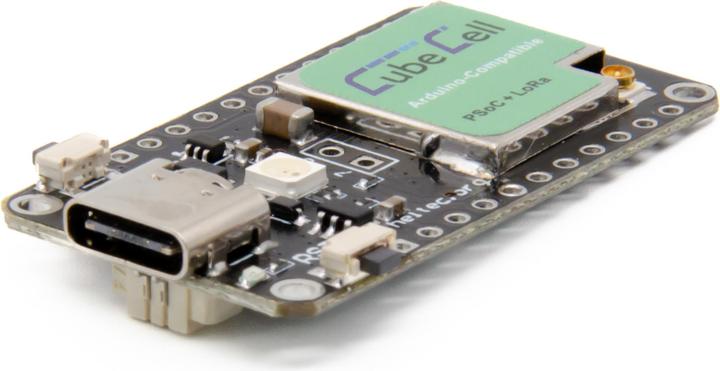

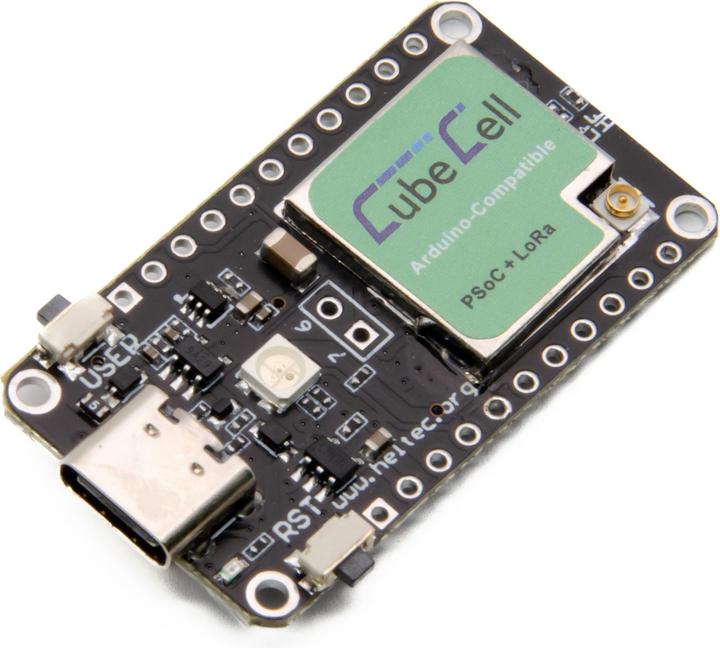

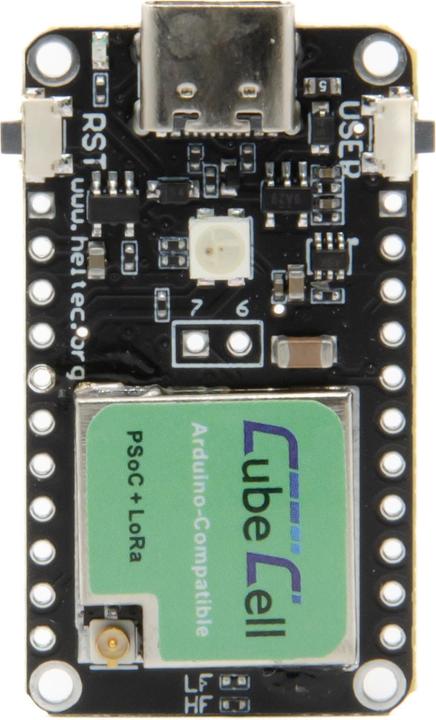

Heltec Automation CubeCell 868MHz Lora Dev-Board V2

Supplied by

Product details

This is the new version of the popular HTCC-AB01 CubeCell ASR6502 Lora dev board from Heltec. The module retains the same pinout and functionality as the previous version.
The CubeCell Lora Dev-Board has an ASR6502 of the PSoC® 4000 series MCU (ARM® Cortex® M0+ core) and an SX1262 Lorachip integrated. Otherwise, it is still the low-cost, Arduino-compatible LoRa Dev Board. Perfectly suited for beginners as well as advanced users.

Recommended accessories:
LiPo battery 1000mAh JST 1.25 / Lithium Ion Polymer for LoRa TTGO.
Solar cell 5V 200mA 1W 110x60mm

Features:
Arduino compatible
Perfect for beginners and advanced developers, the board allows you to implement your LoRa IoT projects easily and inexpensively
CE and FCC certification
Based on ASR6052 is a PSoC® chip 4000 series MCU (ARM® Cortex® M0+ core) and has an integrated SX1262
Supports LoRaWAN 4.4.1
Onboard solar power management system, the board can be directly connected to a 5.5 to 7V solar panel
Onboard SH1.25-2 battery interface, integrated lithium battery management system with charge and discharge management, overcharge protection, battery condition detection, automatic switching USB / battery operation
USB-C interface with full ESD protection, short-circuit protection, RF shielding
Integrated CP2102 USB-to-serial port chip, suitable for downloading programs and debugging

Technical details:
Manufacturer: Heltec Automation
Microprocessor: ASR6502 (48 MHz ARM Cortex M0+ MCU)
LoRa transceiver: SX1262
LoRa working band: 868MHz EU_863_870
LoRa maximum output power 22 ± 1dB
Hardware resources UART x 1; SPI x 1; I2C x 1; SWD x 1; PWM x 3
12 - bit ADC; 8 - channel DMA
6 x GPIO
FLASH: 128KB internal
Interface: Micro USB and LoRa (IPEX)
USB-UART chip: CP2102
Battery detection circuit
Battery connection: 3.7V Lithium SH1,25 2pin
Switchable power supply for external sensors via Vext: 3.3V max 350mA
Power consumption:
LoRa Rx Mode: 10mA
LoRa 10dBm Output: 70mA
LoRa 14dBm Output: 90mA
LoRa 17dBm Output: 100mA
LoRa 20dBm Output: 105mA
Sleep mode Deep Sleep (USB-powered): 9.6mA
Sleep mode Deep Sleep (VBAT/battery powered): 11uA
Sleep mode Deep Sleep (3.3V powered): 3.5uA
Dimensions: 42 x 23 x 8mm
Weight: 25g

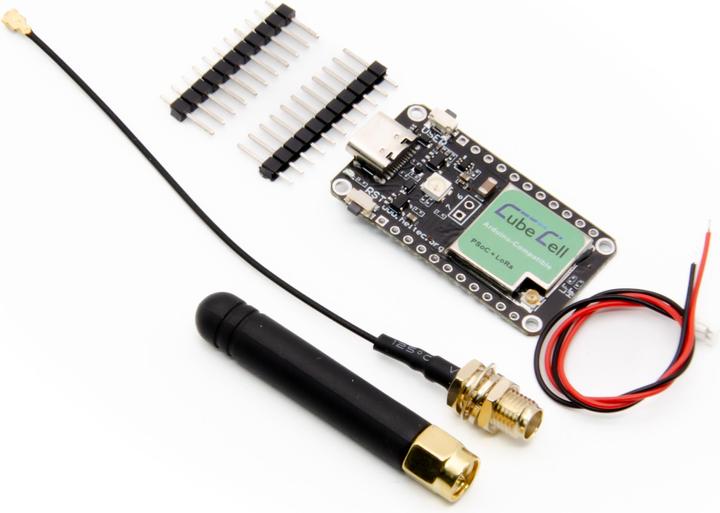

Scope of delivery:
1x CubeCell 868MHz Lora Dev-Board V2
1x External LoRa antenna with IPEX connection cable
2x 11pin male connector
1x LiPo connection cable.

Key specifications

Processor family
ARM
Item number
25403396

General information

Manufacturer
Category
Release date
4/28/2023
Maximum order quantity
56

Development board properties

Processor family
ARM
Flash memory
128 kB

Scope of delivery

Scope of delivery
1x CubeCell 868MHz Lora Dev-Board V2
2x 11pin pin header
External LoRa antenna with IPEX connection cable
LiPo connection cable
Additionally required (not included)
2x 11pin pin header
External LoRa antenna with IPEX connection cable

Product dimensions

Weight
25 g

Package dimensions

Weight
25 g
