Hager HAG FL216B Cabinet 650x400x200

Ratings
BrandMore from Hager
Delivered between Thu, 18.9. and Wed, 8.10.
free shipping

Product details

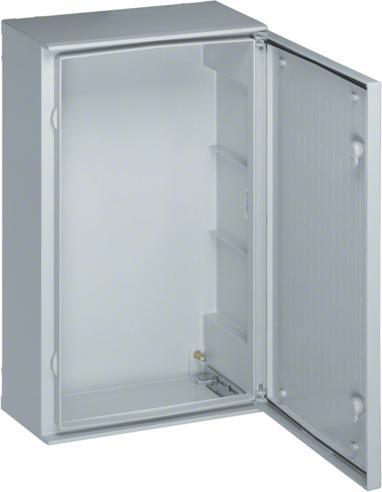

Hager Cabinet Orion FL216B

Manufacturer: Hager
Designation: Cabinet Orion SKII
Dimensions: 650 x 400 x 200 mm
Type: FL216B
Mounting type: Surface-mounted
Cover type: Door
Cover design: Closed
Door type: Single
Transparent cover/door: No
With lock: Yes
Rated current (In): 630 A
Height: 650 mm
Width: 400 mm
Depth: 200 mm
Inner depth: 200 mm
Material thickness of housing: 2 mm
Color: Gray
RAL number: 7035
Number of modules: 72
Number of rows: 4
Width in division units: 18
Material of housing: Plastic
Surface protection: Untreated
With mounting plate: No
Suitable for outdoor use: Yes
Suitable for lightning protection: No
Protection class (IP): IP66
Protection class: II
Impact resistance: IK10
Cover with pressure relief: No

The Hager Cabinet Orion FL216B is an empty housing made of polyester, suitable for the construction of switchgear combinations according to DIN EN 61439-1/-3 with protection class IP 65. It is designed for the installation of devices on galvanized or insulated mounting plates. This wall-mounted distributor is suitable for installation in indoor areas as well as in aggressive environmental conditions and high mechanical stress.

The cabinet consists of a base without pre-formed cable entry, a door with a foam-sealed gasket, and one or two locks with a 3 mm double-bit insert, which can be replaced with other locking systems. The door hinge is on the right side.

Key specifications

Type
Cabinet
Usable installation depth
200 mm
Protection type (IP code)
IP66
Item number
32158677

General information

Manufacturer
Hager
Category
Server cabinets
Manufacturer no.
FL216B
Release date
16.11.2022

Colour

Colour
Grey
Exact colour description
Grey

Material

Material group
Plastic
Material
Glass fibre reinforced plastic

Server cabinet properties

Type
Cabinet
Usable installation depth
200 mm
Protection type (IP code)
IP66
Wall thickness
2 mm

Origin

Country of origin
Italy

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1

Product dimensions

Height
650 mm
Width
400 mm
Length
200 mm
